£67.24
excl. VAT
£80.69 incl. VAT
£80.69
incl. VAT
£67.24 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Construction machines, Forestry machinery, Agricultural machinery, Mechanical engineering |
|---|---|
| Belt width | 13 mm |
| Bore diameter | 20 mm |
| BWorking width | 50 mm |
| Contains spokes | Yes |
| Designed for belt type | V-Belt |
| Designed for V-belt profile | A, SPA, AVX13 |
| dMax. bore diameter | 36 mm |
| Hub diameter | 60 mm |
| LHub width | 42 mm |
| Lock type | n/a |
| Long description | Pulleys standard profile SPA - 3 grooves |
| Material | Cast iron |
| Max. speed | 30 m/s |
| Number of grooves | 3 |
| OPulley outside diameter | 165.5 mm |
| PPitch diameter | 160 mm |
| Pulley type | 3 |
| Technical info | Hub bore, keyway and tapped hole are optional, Recommended minimum diameter of the v-belt pulley:, For VB13 - 71 mm, For SPA - 90 mm, For XPA - 71 mm |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 4530 g |
| Dimensions | 172 × 172 × 60 mm |
| Dangerous goods | No |
You might also like
BPA000370364

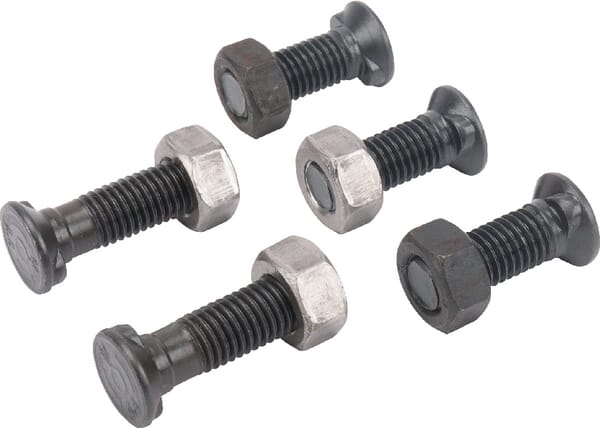

Kramp Bolt pack 3x M12x35 CO, 2x M12x45 CO+Nuts TB40105
£5.82 excl.
£6.98 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000174727

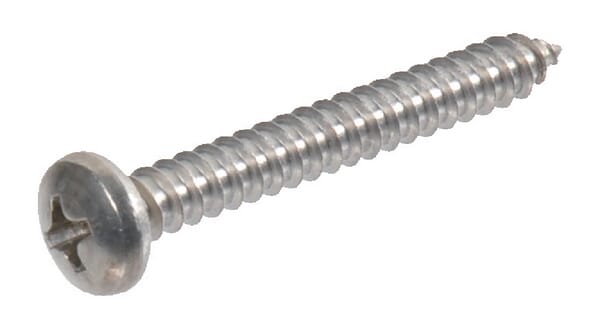

Kramp Self tapping screw 2.9x16mm PH1 pan head, stainless steel, DIN 7981C 7981C2916RVSP100
£0.05 excl.
£0.05 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000305838
Kramp Fuse 16A x 25mm, Torpedo (6) KRSI12016P06B
£1.44 excl.
£1.73 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000284396

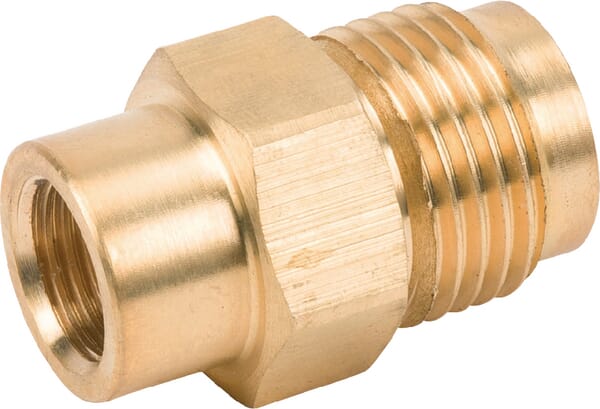

Kramp Nipple M/F 1/2"x1/4" HD260620
£8.43 excl.
£10.12 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000198425
Kramp Hex head bolt UNC 3/8"x1 1/2" DIN931 steel zinc-plated 8.8 93138112UNC
£1.17 excl.
£1.40 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000241120

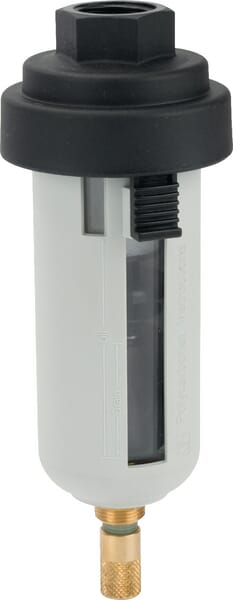

Kramp Condensate drain automatic CDA12
