£79.31
excl. VAT
£95.17 incl. VAT
£95.17
incl. VAT
£79.31 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Construction machines, Forestry machinery, Agricultural machinery, Mechanical engineering |
|---|---|
| Belt width | 13 mm |
| Bore diameter | 20 mm |
| BWorking width | 50 mm |
| Contains spokes | Yes |
| Designed for belt type | V-Belt |
| Designed for V-belt profile | A, SPA, AVX13 |
| dMax. bore diameter | 36 mm |
| Hub diameter | 60 mm |
| LHub width | 42 mm |
| Lock type | n/a |
| Long description | Pulleys standard profile SPA - 3 grooves |
| Material | Cast iron |
| Max. speed | 30 m/s |
| Number of grooves | 3 |
| OPulley outside diameter | 175.5 mm |
| PPitch diameter | 170 mm |
| Pulley type | 3 |
| Technical info | Hub bore, keyway and tapped hole are optional, Recommended minimum diameter of the v-belt pulley:, For VB13 - 71 mm, For SPA - 90 mm, For XPA - 71 mm |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 4956 g |
| Dimensions | 175 × 175 × 49 mm |
| Dangerous goods | No |
You might also like
BPA000329760
Kramp O-ring 43x5mm 75 shore Viton OR435VP001
£5.59 excl.
£6.71 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000302433
Kramp Set of screws, M5X125 (4) NG6 KREV95125
£7.66 excl.
£9.19 incl.
In stock
Expected to ship on Monday 21 September
BPA000041007
Kramp Washer M14x28x2.5mm, Steel DIN 125a 125A14B
£0.08 excl.
£0.10 incl.
In stock
Expected to ship on Friday 18 September
BPA000285949
Kramp HP hose 8m DN6 160bar 2x8.8mm Kärcher Quick connect HD998108
£54.50 excl.
£65.40 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000260820

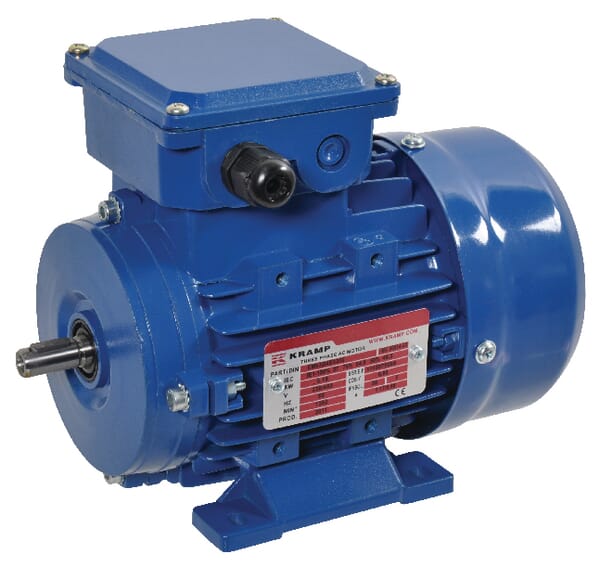

Kramp Electric motor 0.25 kW EM71A4B3300IE2A
