Product details
| Application range | Construction machines, Forestry machinery, Agricultural machinery, Mechanical engineering |
|---|---|
| Belt width | 13 mm |
| Bore diameter | 20 mm |
| BWorking width | 50 mm |
| Contains spokes | Yes |
| Designed for belt type | V-Belt |
| Designed for V-belt profile | A, SPA, AVX13 |
| dMax. bore diameter | 44 mm |
| Hub diameter | 75 mm |
| LHub width | 42 mm |
| Lock type | n/a |
| Long description | Pulleys standard profile SPA - 3 grooves |
| Material | Cast iron |
| Max. speed | 30 m/s |
| Number of grooves | 3 |
| OPulley outside diameter | 205.5 mm |
| PPitch diameter | 200 mm |
| Pulley type | 3 |
| Technical info | Hub bore, keyway and tapped hole are optional, Recommended minimum diameter of the v-belt pulley:, For VB13 - 71 mm, For SPA - 90 mm, For XPA - 71 mm |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 5127 g |
| Dimensions | 207 × 207 × 55 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000364109
Kramp Starter 12V, 2.0kW, 9-teeth, CW, STA2617168
£172.21 excl.
£206.65 incl.
In stock
Expected to ship on Friday 18 September
BPA000198031
Kramp Hexagon head bolt DIN931 M20x130 steel zinc-plated 10.9 93120130109
£2.43 excl.
£2.92 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000363047

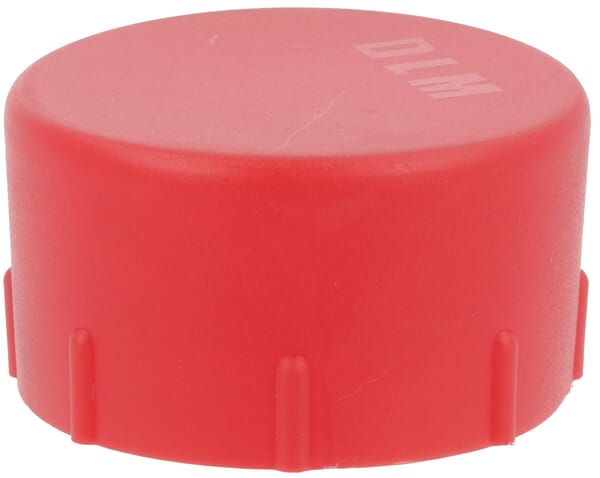

Kramp Dust cap female thread M42x2.0 SKM42
£0.41 excl.
£0.49 incl.
In stock
Expected to ship on Friday 18 September
BPA000330719

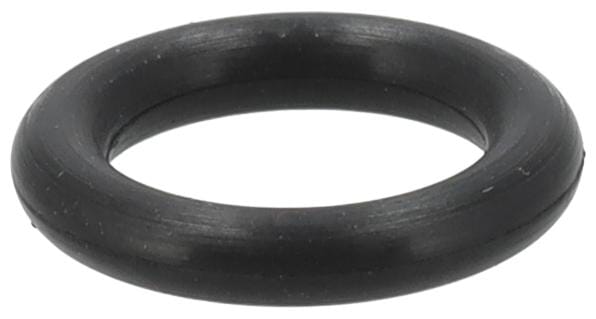

Kramp O-ring 7x1.8 75 shore Viton 10x OR7180VP010
£13.32 excl.
£15.98 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000144725

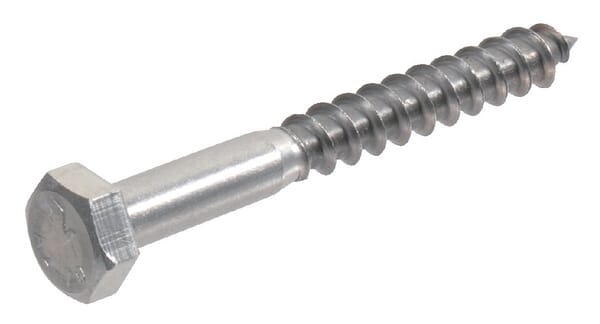

Kramp Wood screw 8x45mm, 13mm hex head, stainless steel, DIN 571 571845RVSP050
