£132.12
excl. VAT
£158.54 incl. VAT
£158.54
incl. VAT
£132.12 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September

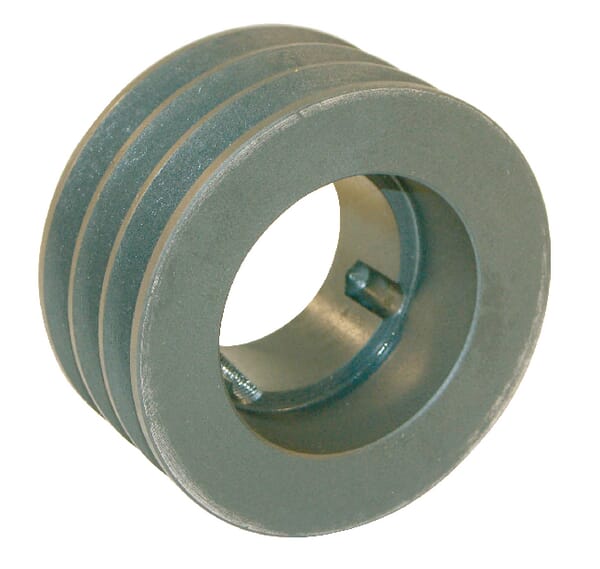

Product details
| Application range | Construction machines, Forestry machinery, Agricultural machinery, Mechanical engineering |
|---|---|
| Belt width | 13 mm |
| Benefits | Can be used with different shaft diameters, Fast and simple to assemble and dismantle |
| Consists of | V-belt pulley, No taperlock adjustment bush supplied |
| Designed for belt type | V-Belt |
| Designed for V-belt profile | A, SPA, AVX13 |
| Details | With taperlock bore |
| ECore disc thickness | 20 |
| FWorking width | 50 mm |
| Hub diameter | 124 mm |
| Hub width | 45 mm |
| JChamber diameter | 245 mm |
| KHub offset 1 | 2.5 mm |
| Lock type | 2517 |
| Material | Cast iron |
| Max. bore diameter | 60 mm |
| Max. speed | 30 m/s |
| MHub offset 2 | 2.5 mm |
| Number of grooves | 3 |
| OPulley outside diameter | 285.5 mm |
| PPitch diameter | 280 mm |
| Pulley type | 6 |
| Technical info | Recommended minimum diameter of the v-belt pulley:, For VB13 - 71 mm, For SPA - 90 mm, For XPA - 71 mm |
| Unit | Each |
Logistics
| EAN | 4014486245998 |
|---|---|
| Unit of measure | EA |
| Weight | 8369 g |
| Dimensions | 285 × 285 × 50 mm |
| Dangerous goods | No |
You might also like
BPA000304810
Kramp Jacket 4W stretch black S KW201345001048
£78.38 excl.
£94.06 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000281235

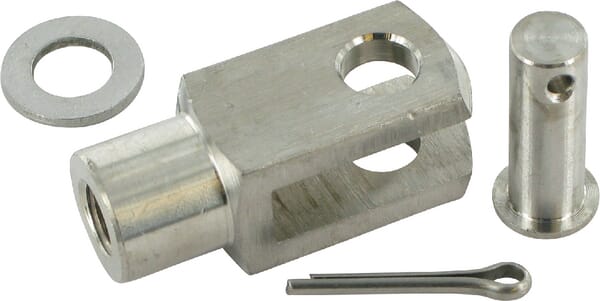

Kramp Clevis M20 stainless steel GM20CR
