£183.06
excl. VAT
£219.67 incl. VAT
£219.67
incl. VAT
£183.06 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September
Product details
| Application range | Construction machines, Forestry machinery, Agricultural machinery, Mechanical engineering |
|---|---|
| Belt width | 13 mm |
| Benefits | Can be used with different shaft diameters, Fast and simple to assemble and dismantle |
| Consists of | V-belt pulley, No taperlock adjustment bush supplied |
| Designed for belt type | V-Belt |
| Designed for V-belt profile | A, SPA, AVX13 |
| Details | With taperlock bore |
| FWorking width | 50 mm |
| Hub diameter | 160 mm |
| Hub width | 51 mm |
| JChamber diameter | 320 mm |
| KHub offset 1 | 0.5 mm |
| Lock type | 3020 |
| Material | Cast iron |
| Max. bore diameter | 75 mm |
| Max. speed | 30 m/s |
| MHub offset 2 | 0.5 mm |
| Number of grooves | 3 |
| OPulley outside diameter | 360.5 mm |
| PPitch diameter | 355 mm |
| Pulley type | 4 |
| Technical info | Recommended minimum diameter of the v-belt pulley:, For VB13 - 71 mm, For SPA - 90 mm, For XPA - 71 mm |
| Unit | Each |
Logistics
| EAN | 4014486246094 |
|---|---|
| Unit of measure | EA |
| Weight | 9708 g |
| Dimensions | 360 × 360 × 52 mm |
| Dangerous goods | No |
You might also like
BPA000317673
Kramp Bearing NWB05788
£4.24 excl.
£5.09 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000197462

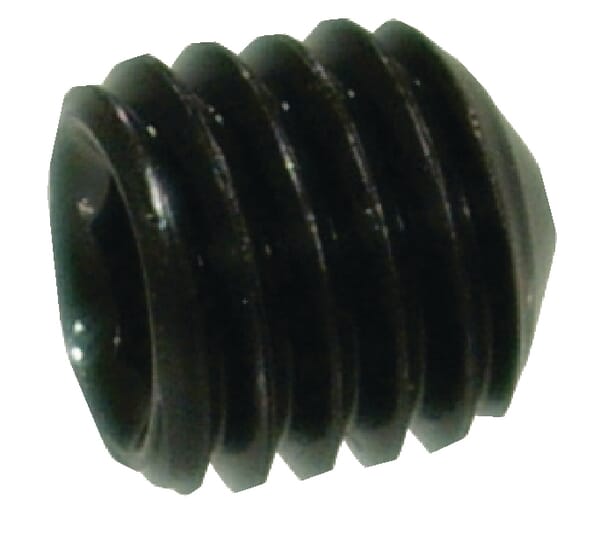

Kramp Grub screw DIN914 M8x12 steel 45H 914812BP025
£0.25 excl.
£0.30 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000337950

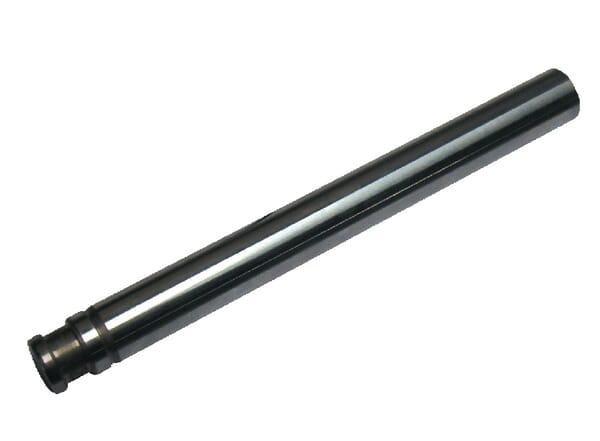

Kramp PB rod 50 stroke 500 PC2 L644 PC29050060500
£117.56 excl.
£141.07 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000181938
Kramp Windscreen lower 816810040070N
£78.84 excl.
£94.61 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000363535

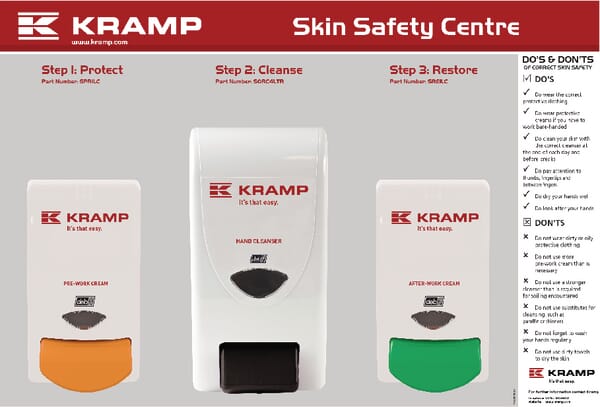

Kramp Deb Hand Cleaner Board SSC1KR
