£229.00
excl. VAT
£274.80 incl. VAT
£274.80
incl. VAT
£229.00 excl. VAT
Free shipping
In stock
Expected to ship on Thursday 24 September
Product details
| Application range | Construction machines, Forestry machinery, Agricultural machinery, Mechanical engineering |
|---|---|
| Belt width | 13 mm |
| Benefits | Can be used with different shaft diameters, Fast and simple to assemble and dismantle |
| Consists of | V-belt pulley, No taperlock adjustment bush supplied |
| Designed for belt type | V-Belt |
| Designed for V-belt profile | A, SPA, AVX13 |
| Details | With taperlock bore |
| FWorking width | 50 mm |
| Hub diameter | 159 mm |
| Hub width | 51 mm |
| JChamber diameter | 365 mm |
| Lock type | 3020 |
| Material | Cast iron |
| Max. bore diameter | 75 mm |
| Max. speed | 30 m/s |
| MHub offset 2 | 1 mm |
| Number of grooves | 3 |
| OPulley outside diameter | 405.5 mm |
| PPitch diameter | 400 mm |
| Pulley type | 4 |
| Technical info | Recommended minimum diameter of the v-belt pulley:, For VB13 - 71 mm, For SPA - 90 mm, For XPA - 71 mm |
| Unit | Each |
Logistics
| EAN | 4014486246148 |
|---|---|
| Unit of measure | EA |
| Weight | 13085 g |
| Dimensions | 450 × 50 × 450 mm |
| Dangerous goods | No |
You might also like
BPA000334459
Kramp O-ring 126.37x5.33mm 70 shore OR12637533P001
£1.70 excl.
£2.04 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000308890

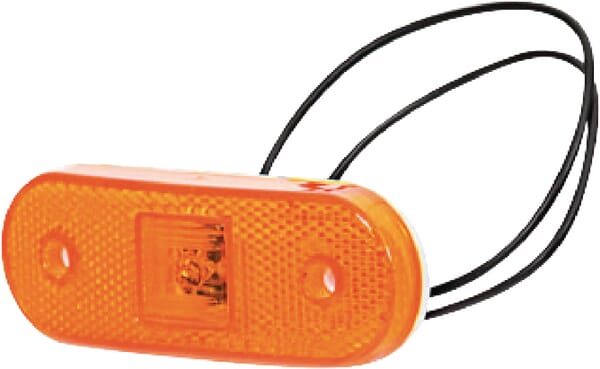

Kramp Marker light LED, rectangular, 12-24V, 113.5x40x26.5mm, LA30124
£11.42 excl.
£13.70 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000249904
Kramp Piston without seals, bore 25mm DS2902504
£6.00 excl.
£7.20 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000270560

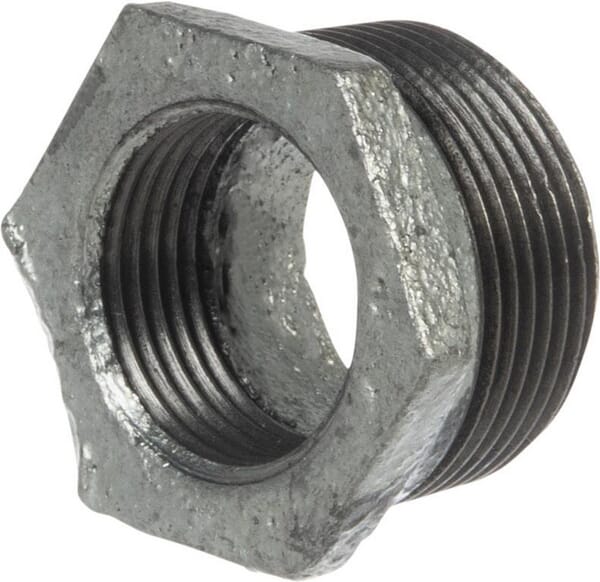

Kramp Reducer m/f 1 1/4"x1" FG2411141
£2.11 excl.
£2.53 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000269030

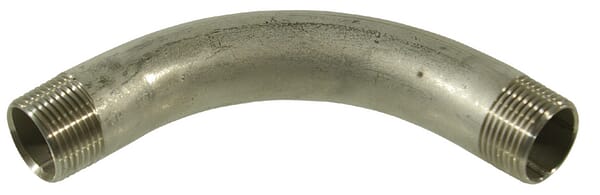

Kramp Elbow 90° S.S. 2xM 1 1/2" FG3112RVS
£40.55 excl.
£48.66 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000144383

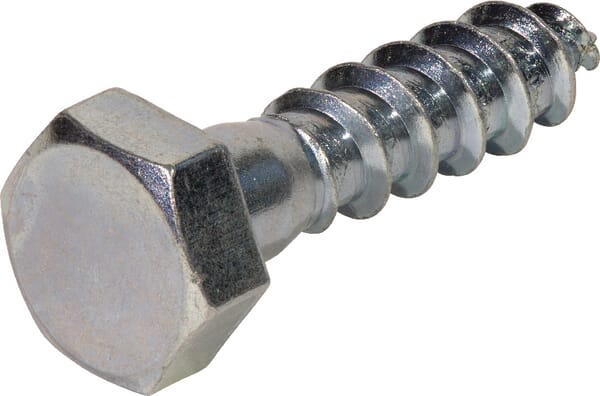

Kramp Wood screw 10x160mm, 17mm hex head, DIN 571 57110160P025
