£25.09
excl. VAT
£30.11 incl. VAT
£30.11
incl. VAT
£25.09 excl. VAT
In stock
Expected to ship on Monday 21 September
About this product

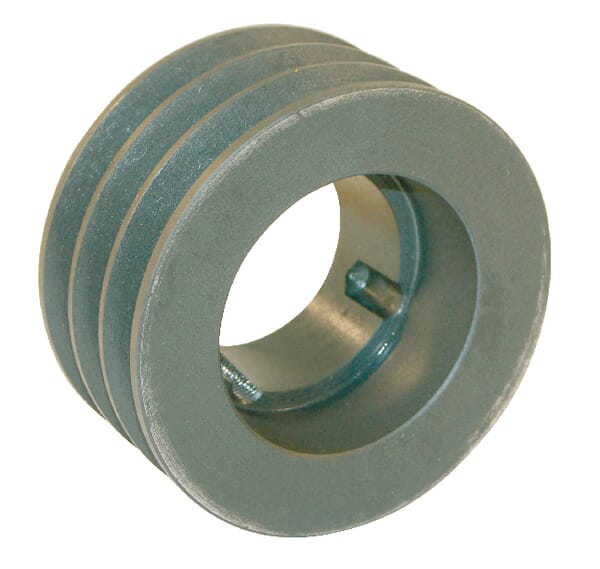

A 3-groove V-belt pulley designed for A, SPA and AVX13 profile belts, with a 95.50 mm outside diameter and 90 mm pitch diameter, supplied as a single piece. The pulley is manufactured from cast iron and features a taperlock 1610 bore for flexible shaft mounting; the adjustment bush is not included. The working width is 50 mm with a 13 mm belt width, a hub width of 25 mm, and a maximum bore diameter of 42 mm. It operates safely at speeds up to 30 m/s. The pulley accommodates different shaft diameters through the taperlock design and can be assembled and disassembled without specialised tools. The product weighs 947 g and carries the EAN 4014486245066 for inventory matching.
Product details
| Application range | Construction machines, Forestry machinery, Agricultural machinery, Mechanical engineering |
|---|---|
| Belt width | 13 mm |
| Benefits | Can be used with different shaft diameters, Fast and simple to assemble and dismantle |
| Consists of | V-belt pulley, No taperlock adjustment bush supplied |
| Designed for belt type | V-Belt |
| Designed for V-belt profile | A, SPA, AVX13 |
| Details | With taperlock bore |
| FWorking width | 50 mm |
| Hub width | 25 mm |
| JChamber diameter | 59 mm |
| KHub offset 1 | 25 mm |
| Lock type | 1610 |
| Material | Cast iron |
| Max. bore diameter | 42 mm |
| Max. speed | 30 m/s |
| Number of grooves | 3 |
| OPulley outside diameter | 95.5 mm |
| PPitch diameter | 90 mm |
| Pulley type | 8 |
| Technical info | Recommended minimum diameter of the v-belt pulley:, For VB13 - 71 mm, For SPA - 90 mm, For XPA - 71 mm |
| Unit | Each |
Logistics
| EAN | 4014486245066 |
|---|---|
| Unit of measure | EA |
| Weight | 947 g |
| Dimensions | 95 × 95 × 50 mm |
| Dangerous goods | No |
You might also like
BPA000190538

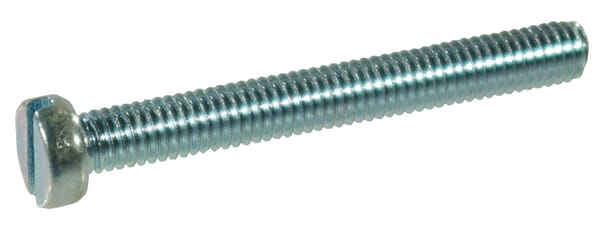

Kramp Slotted cheese head screw DIN84 M6x8 steel zinc-plated 4.8 8468P100
£0.06 excl.
£0.07 incl.
In stock
Expected to ship on Monday 21 September
BPA000077874

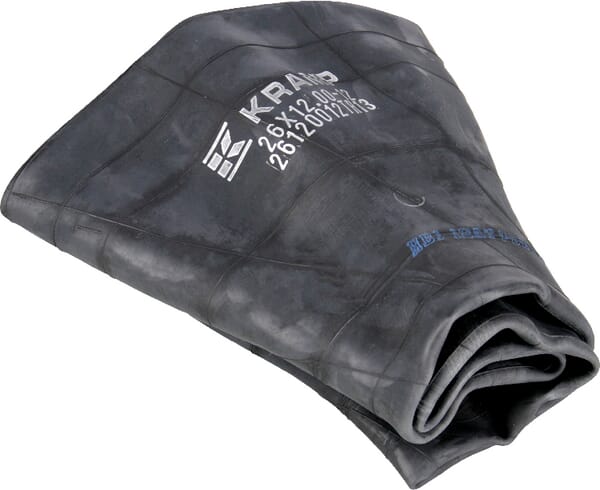

Kramp Inner tube for rim diameter 12", 26x12.00-12, straight valve TR13, 26120012TR13
£16.30 excl.
£19.56 incl.
In stock
Expected to ship on Monday 21 September
BPA000330774
Kramp O-ring 73x1.5mm 70 shore 10x OR73150P010
£5.25 excl.
£6.30 incl.
In stock
Expected to ship on Monday 21 September
BPA000225677
Kramp Half shell AH11335
£7.96 excl.
£9.55 incl.
In stock
Expected to ship on Monday 21 September
BPA000376477

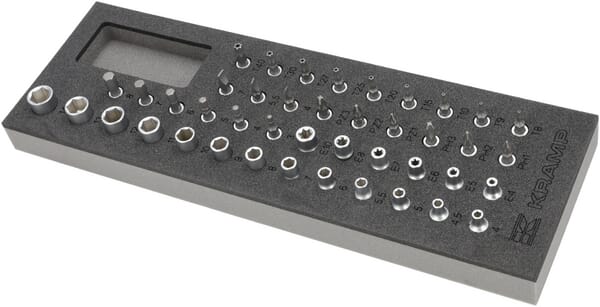

Kramp Socket set 1/4" 43 pcs TT800101
£75.44 excl.
£90.53 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000253911

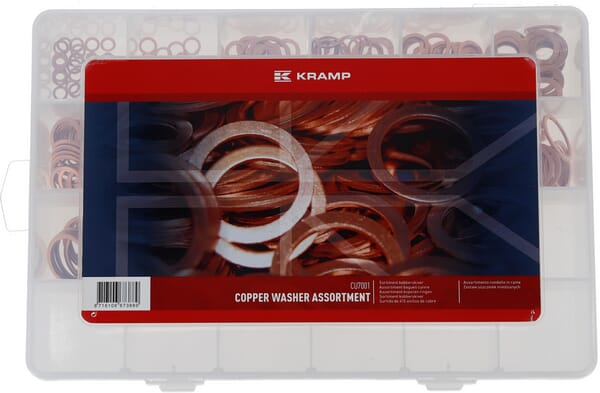

Kramp Copper washer assortment box CU7001
