£100.06
excl. VAT
£120.07 incl. VAT
£120.07
incl. VAT
£100.06 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.

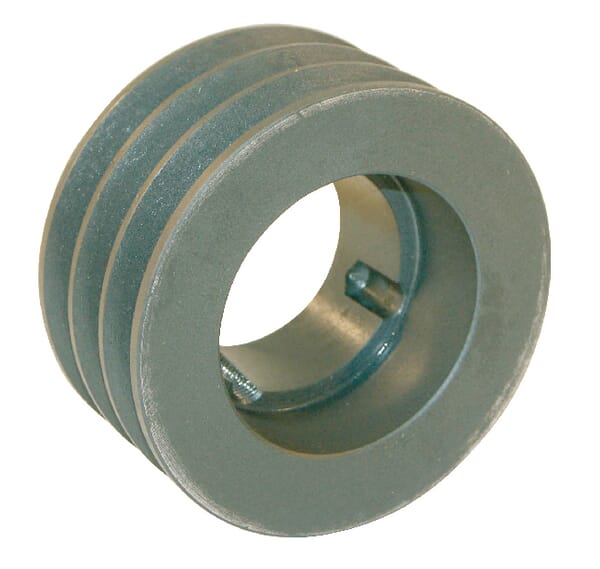

Product details
| Application range | Construction machines, Forestry machinery, Agricultural machinery, Mechanical engineering |
|---|---|
| Belt width | 17 mm |
| Benefits | Can be used with different shaft diameters, Fast and simple to assemble and dismantle |
| Consists of | V-belt pulley, No taperlock adjustment bush supplied |
| Designed for belt type | V-Belt |
| Designed for V-belt profile | B, SPB |
| Details | With taperlock bore |
| FWorking width | 63 mm |
| Hub width | 45 mm |
| JChamber diameter | 137 mm |
| Lock type | 2517 |
| Material | Cast iron |
| Max. bore diameter | 60 mm |
| Max. speed | 30 m/s |
| MHub offset 2 | 18 mm |
| Number of grooves | 3 |
| OPulley outside diameter | 187 mm |
| PPitch diameter | 180 mm |
| Pulley type | 2 |
| Technical info | Recommended minimum diameter of the v-belt pulley:, For VB17 - 112 mm, For SPB - 140 mm, For XPB - 112 mm |
| Unit | Each |
Logistics
| EAN | 4014486246834 |
|---|---|
| Unit of measure | EA |
| Weight | 6545 g |
| Dimensions | 188 × 188 × 66 mm |
| Dangerous goods | No |
You might also like
BPA000286697

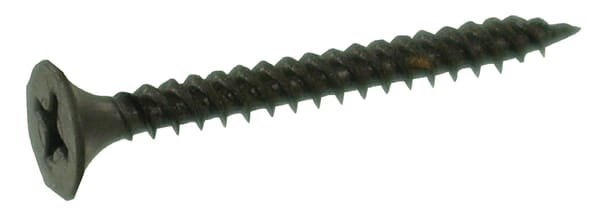

Kramp Plasterboard screw 3.5x45mm PH2 countersunk, DIN 18182 GPS3545P1000
£0.03 excl.
£0.03 incl.
In stock
Expected to ship on Monday 21 September
BPA000163659

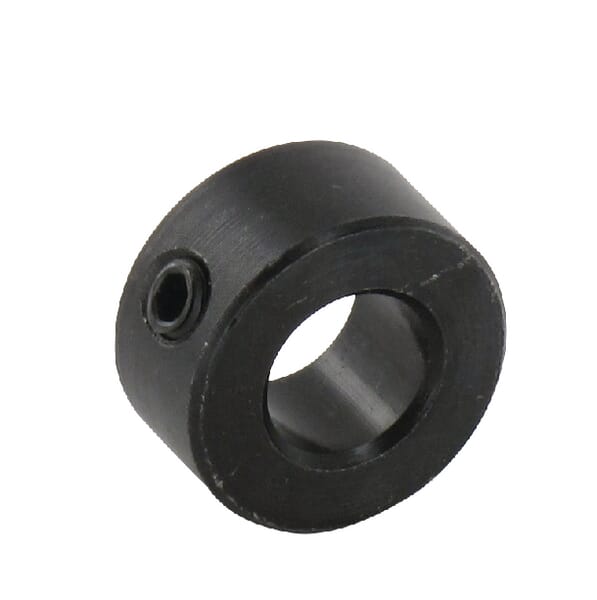

Kramp Lock collar 9 x 18 x 10 mm 705A9KR
£1.00 excl.
£1.20 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000297586

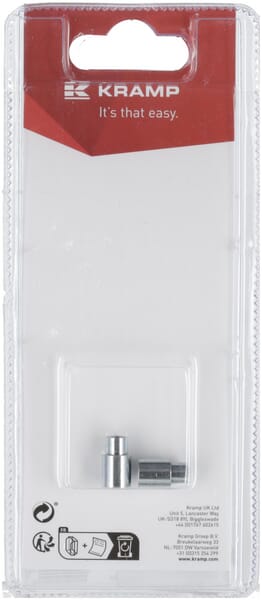

Kramp Bowden ferrule diameter 3.5mm x 14mm, 8mm (2) KGFGP453591P02B
£3.22 excl.
£3.87 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000196583

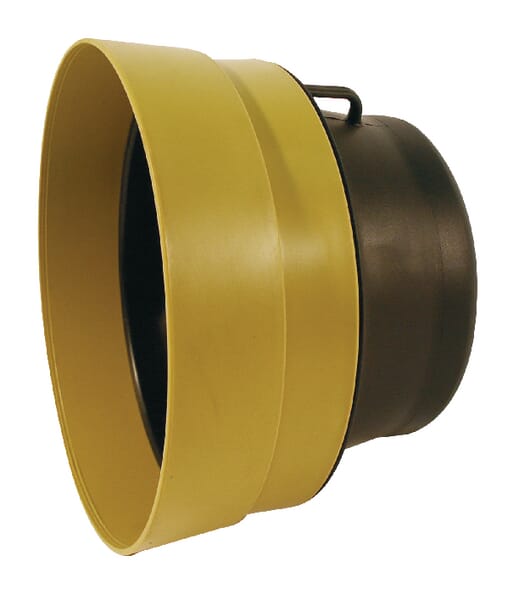

Kramp Guard cone 90000518
£24.65 excl.
£29.58 incl.
In stock
Expected to ship on Monday 21 September
BPA000318592
Kramp Spur gear module 2.5 - Z=59 MOD2559
£53.46 excl.
£64.15 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000064282

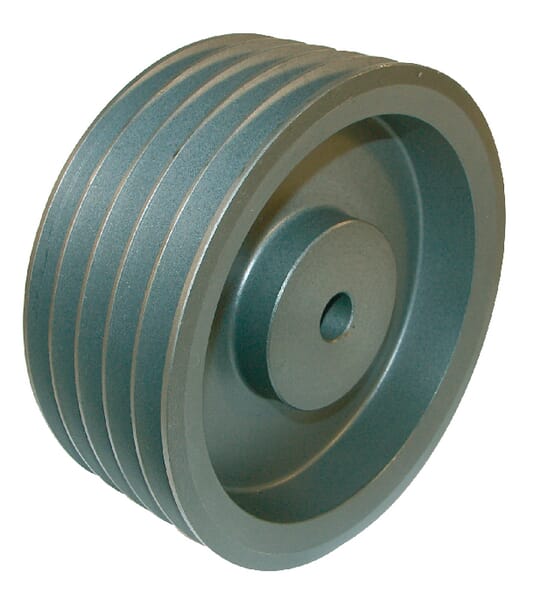

Kramp V-belt pulley 5 groove A or SPA diameter 205.50 mm 200A5
