£161.00
excl. VAT
£193.20 incl. VAT
£193.20
incl. VAT
£161.00 excl. VAT
Free shipping
In stock
Expected to ship on Thursday 24 September

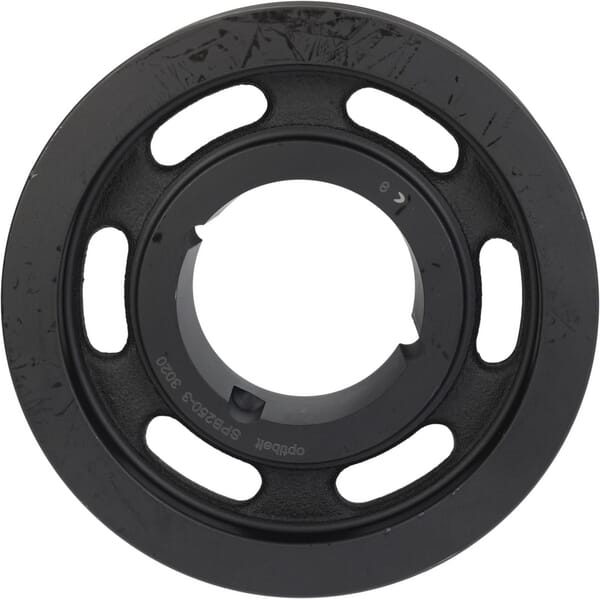

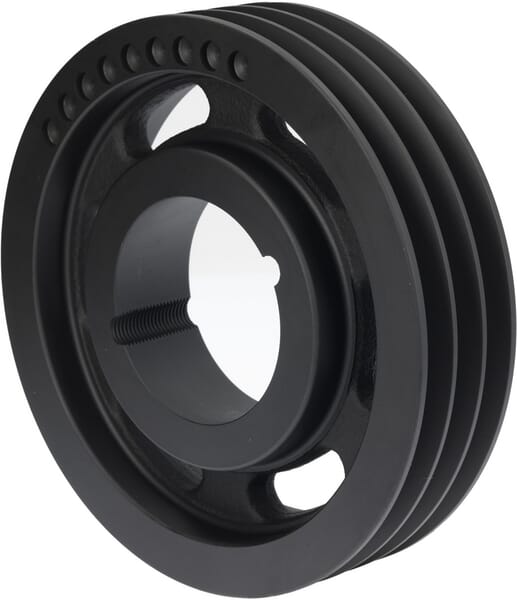

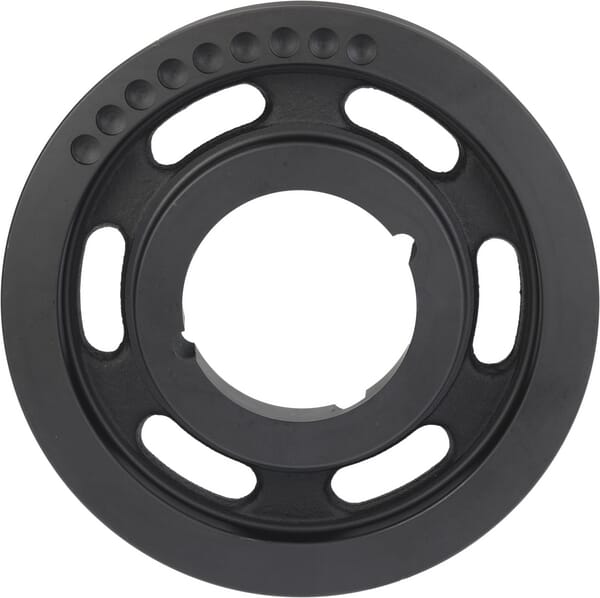

Product details
| Application range | Construction machines, Forestry machinery, Agricultural machinery, Mechanical engineering |
|---|---|
| Belt width | 17 mm |
| Benefits | Can be used with different shaft diameters, Fast and simple to assemble and dismantle |
| Consists of | V-belt pulley, No taperlock adjustment bush supplied |
| Designed for belt type | V-Belt |
| Designed for V-belt profile | B, SPB |
| Details | With taperlock bore |
| ECore disc thickness | 20 |
| FWorking width | 63 mm |
| Hub diameter | 144 mm |
| Hub width | 51 mm |
| JChamber diameter | 207 mm |
| Lock type | 3020 |
| Material | Cast iron |
| Max. bore diameter | 75 mm |
| Max. speed | 30 m/s |
| MHub offset 2 | 12 mm |
| Number of grooves | 3 |
| OPulley outside diameter | 257 mm |
| PPitch diameter | 250 mm |
| Pulley type | 6 |
| Technical info | Recommended minimum diameter of the v-belt pulley:, For VB17 - 112 mm, For SPB - 140 mm, For XPB - 112 mm |
| Unit | Each |
Logistics
| EAN | 4014486247275 |
|---|---|
| Unit of measure | EA |
| Weight | 9552 g |
| Dimensions | 260 × 260 × 65 mm |
| Dangerous goods | No |
