£186.20
excl. VAT
£223.44 incl. VAT
£223.44
incl. VAT
£186.20 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Construction machines, Forestry machinery, Agricultural machinery, Mechanical engineering |
|---|---|
| Belt width | 17 mm |
| Benefits | Can be used with different shaft diameters, Fast and simple to assemble and dismantle |
| Consists of | V-belt pulley, No taperlock adjustment bush supplied |
| Designed for belt type | V-Belt |
| Designed for V-belt profile | B, SPB |
| Details | With taperlock bore |
| ECore disc thickness | 20 |
| FWorking width | 63 mm |
| Hub diameter | 144 mm |
| Hub width | 51 mm |
| JChamber diameter | 292 mm |
| KHub offset 1 | 6 mm |
| Lock type | 3020 |
| Material | Cast iron |
| Max. bore diameter | 75 mm |
| Max. speed | 30 m/s |
| MHub offset 2 | 6 mm |
| Number of grooves | 3 |
| OPulley outside diameter | 342 mm |
| PPitch diameter | 335 mm |
| Pulley type | 6 |
| Technical info | Recommended minimum diameter of the v-belt pulley:, For VB17 - 112 mm, For SPB - 140 mm, For XPB - 112 mm |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 12834 g |
| Dimensions | 342 × 342 × 63 mm |
| Dangerous goods | No |
You might also like
BPA000163647

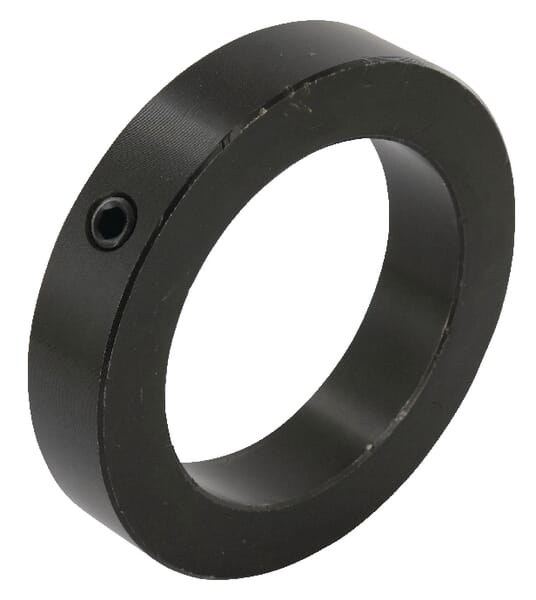

Kramp Lock collar 70 x 100 x 20 mm 705A70KR
£9.19 excl.
£11.03 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000198098
Kramp Hexagon head bolt DIN931 M20x65 steel 12.9 9312065129B
£2.85 excl.
£3.42 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000330793
Kramp O-ring 74.2x5.7mm 70 shore 10x OR7420570P010
£6.98 excl.
£8.38 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000319063

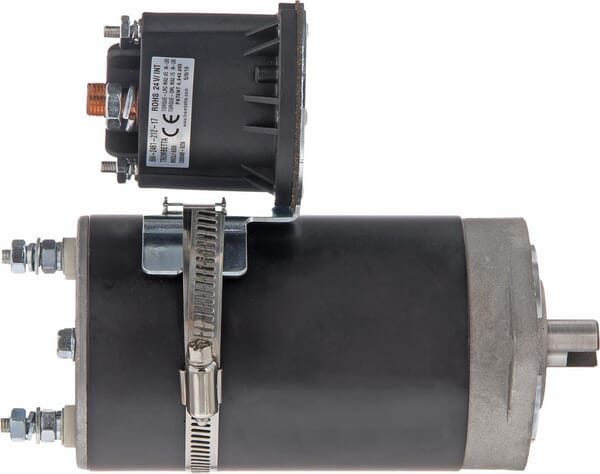

Kramp Motor MPP DC 24 Vdc 800 Watt MPPDCM24V800N
