£178.24
excl. VAT
£213.89 incl. VAT
£213.89
incl. VAT
£178.24 excl. VAT
Free shipping
In stock
Expected to ship on Thursday 24 September

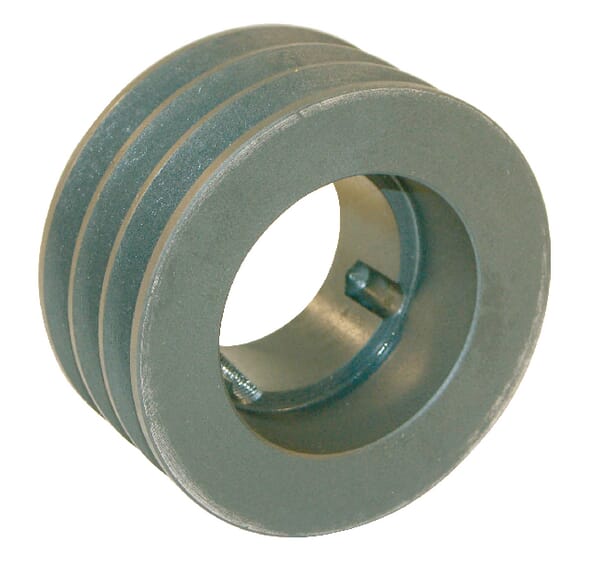

Product details
| Application range | Construction machines, Forestry machinery, Agricultural machinery, Mechanical engineering |
|---|---|
| Belt width | 17 mm |
| Benefits | Can be used with different shaft diameters, Fast and simple to assemble and dismantle |
| Consists of | V-belt pulley, No taperlock adjustment bush supplied |
| Designed for belt type | V-Belt |
| Designed for V-belt profile | B, SPB |
| Details | With taperlock bore |
| ECore disc thickness | 15 |
| FWorking width | 63 mm |
| Hub diameter | 144 mm |
| Hub width | 51 mm |
| JChamber diameter | 312 mm |
| KHub offset 1 | 6 mm |
| Lock type | 3020 |
| Material | Cast iron |
| Max. bore diameter | 75 mm |
| Max. speed | 30 m/s |
| MHub offset 2 | 6 mm |
| Number of grooves | 3 |
| OPulley outside diameter | 362 mm |
| PPitch diameter | 355 mm |
| Pulley type | 5 |
| Technical info | Recommended minimum diameter of the v-belt pulley:, For VB17 - 112 mm, For SPB - 140 mm, For XPB - 112 mm |
| Unit | Each |
Logistics
| EAN | 4014486247688 |
|---|---|
| Unit of measure | EA |
| Weight | 14157 g |
| Dimensions | 362 × 362 × 65 mm |
| Dangerous goods | No |
You might also like
BPA000037815
Kramp Oil seal 12x32x7mm type:CC DIN 3760 1x 12327CCP001
£1.75 excl.
£2.10 incl.
In stock
Expected to ship on Thursday 24 September
BPA000252510

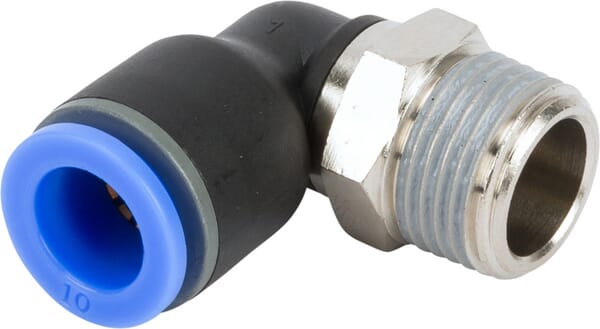

Kramp Push-in fitting ECF1038P
£3.94 excl.
£4.73 incl.
In stock
Expected to ship on Thursday 24 September
BPA000367806
Kramp Stand jack cylinder quick release SP9AB
£29.92 excl.
£35.90 incl.
In stock
Expected to ship on Wednesday 23 September
BPA000008508
Kramp Wing share 4 holes, short 00311326N
£14.74 excl.
£17.69 incl.
In stock
Expected to ship on Wednesday 23 September
BPA000270547

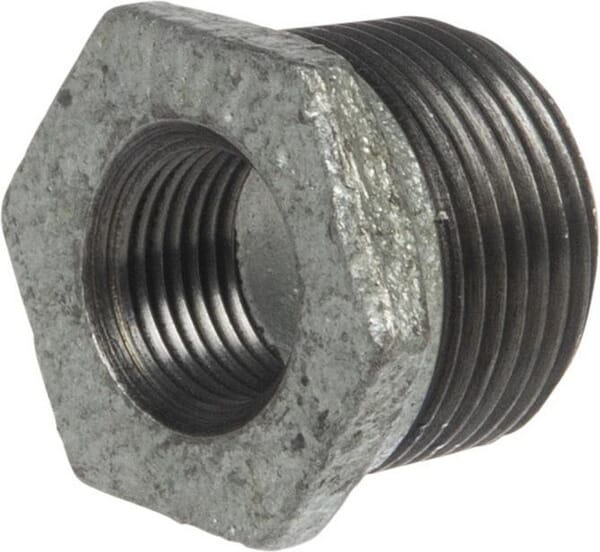

Kramp Reducer m/f 1 1/2"x1/2" FG24111212
