£193.07
excl. VAT
£231.68 incl. VAT
£231.68
incl. VAT
£193.07 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.

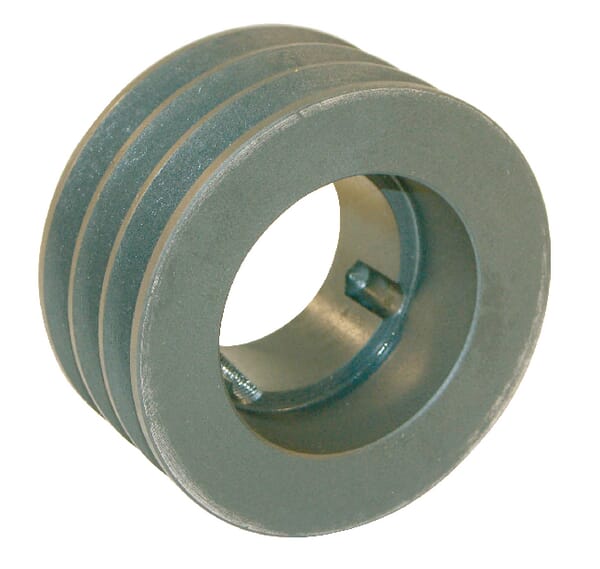

Product details
| Application range | Construction machines, Forestry machinery, Agricultural machinery, Mechanical engineering |
|---|---|
| Belt width | 22 mm |
| Benefits | Can be used with different shaft diameters, Fast and simple to assemble and dismantle |
| Consists of | V-belt pulley, No taperlock adjustment bush supplied |
| Designed for belt type | V-Belt |
| Designed for V-belt profile | C, SPC |
| Details | With taperlock bore |
| FWorking width | 85 mm |
| Hub diameter | 224 mm |
| Hub width | 51 mm |
| JChamber diameter | 168 mm |
| KHub offset 1 | 17 mm |
| Lock type | 3020 |
| Material | Cast iron |
| Max. bore diameter | 75 mm |
| Max. speed | 30 m/s |
| MHub offset 2 | 17 mm |
| Number of grooves | 3 |
| OPulley outside diameter | 233.6 mm |
| PPitch diameter | 224 mm |
| Pulley type | 3 |
| Technical info | Recommended minimum diameter of the v-belt pulley:, For VB22 - 180 mm, For SPC - 224 mm, For XPC - 180 mm |
| Unit | Each |
Logistics
| EAN | 4014486248524 |
|---|---|
| Unit of measure | EA |
| Weight | 12490 g |
| Dimensions | 233 × 233 × 84 mm |
| Dangerous goods | No |
You might also like
BPA000000114
Kramp Knife Head 0005221900KR
£12.93 excl.
£15.52 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000327668
Kramp O-ring 228.27x2.62mm 70 shore OR22827262P001
£2.85 excl.
£3.42 incl.
In stock
Expected to ship on Monday 21 September
BPA000369172

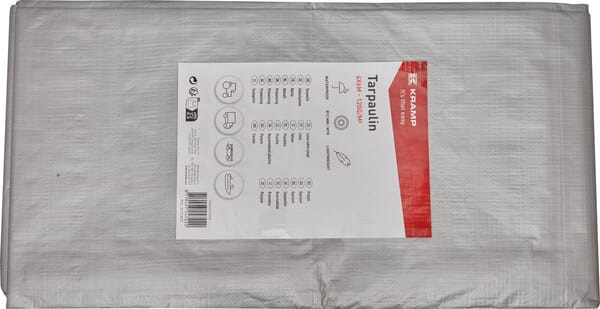

Kramp Tarpaulin 6x10m 120g/m² T6001000120KR
