£242.54
excl. VAT
£291.05 incl. VAT
£291.05
incl. VAT
£242.54 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Construction machines, Forestry machinery, Agricultural machinery, Mechanical engineering |
|---|---|
| Belt width | 22 mm |
| Benefits | Can be used with different shaft diameters, Fast and simple to assemble and dismantle |
| Consists of | V-belt pulley, No taperlock adjustment bush supplied |
| Designed for belt type | V-Belt |
| Designed for V-belt profile | C, SPC |
| Details | With taperlock bore |
| FWorking width | 85 mm |
| Hub width | 51 mm |
| JChamber diameter | 194 mm |
| KHub offset 1 | 17 mm |
| Lock type | 3020 |
| Material | Cast iron |
| Max. bore diameter | 75 mm |
| Max. speed | 30 m/s |
| MHub offset 2 | 17 mm |
| Number of grooves | 3 |
| OPulley outside diameter | 259.6 mm |
| PPitch diameter | 250 mm |
| Pulley type | 3 |
| Technical info | Recommended minimum diameter of the v-belt pulley:, For VB22 - 180 mm, For SPC - 224 mm, For XPC - 180 mm |
| Unit | Each |
Logistics
| EAN | 4014486248630 |
|---|---|
| Unit of measure | EA |
| Weight | 16110 g |
| Dimensions | 260 × 260 × 85 mm |
| Dangerous goods | No |
You might also like
BPA000179058
Kramp Hexagon socket head cap screw DIN7984 M16x40 steel zinc-plated 8.8 7984164088
£2.68 excl.
£3.22 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000281254

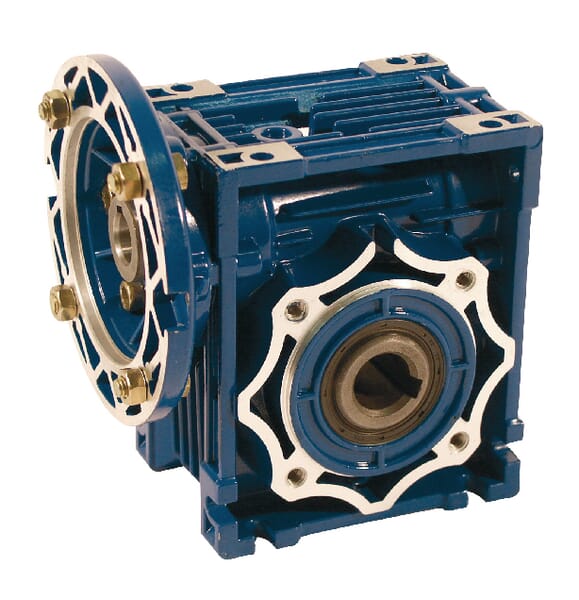

Kramp Worm gear reducer I = 80 GMR0308056B14
£103.49 excl.
£124.19 incl.
In stock
Expected to ship on Friday 18 September
BPA000248462
Kramp Seal kit CSKYAN17214999341
£71.69 excl.
£86.03 incl.
In stock
Expected to ship on Friday 18 September
BPA000297942
Kramp Power harrow tine 2x carbide tiles LH, length 285mm, suitable for Maschio, KE0923C2
£45.92 excl.
£55.10 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000182537
Kramp Door glass 82000367KR
£171.64 excl.
£205.97 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000209353

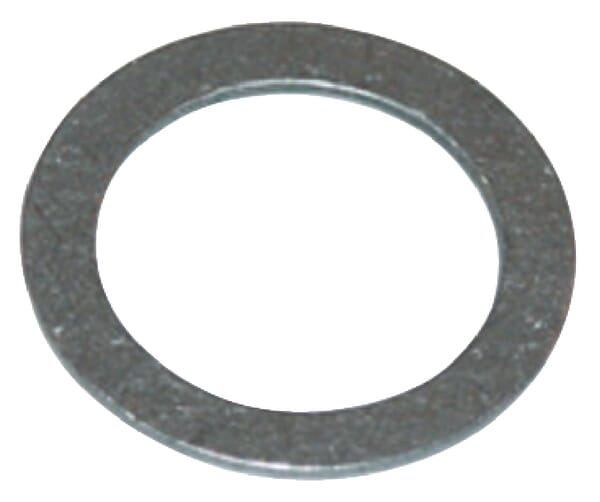

Kramp Shim diameter 12x18x0.1mm DIN 988 988121801P025
