£25.16
excl. VAT
£30.19 incl. VAT
£30.19
incl. VAT
£25.16 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Construction machines, Forestry machinery, Agricultural machinery, Mechanical engineering |
|---|---|
| Belt width | 10 mm |
| Benefits | Can be used with different shaft diameters, Fast and simple to assemble and dismantle |
| Consists of | V-belt pulley, No taperlock adjustment bush supplied |
| Designed for belt type | V-Belt |
| Designed for V-belt profile | Z, SPZ, AVX10 |
| Details | With taperlock bore |
| FWorking width | 40 mm |
| Hub width | 25 mm |
| JChamber diameter | 76 mm |
| KHub offset 1 | 15 mm |
| Lock type | 1610 |
| Material | Cast iron |
| Max. bore diameter | 42 mm |
| Max. speed | 30 m/s |
| Number of grooves | 3 |
| OPulley outside diameter | 110 mm |
| PPitch diameter | 106 mm |
| Pulley type | 8 |
| Technical info | Recommended minimum diameter of the v-belt pulley:, For VB10 - 50 mm, For SPZ - 63 mm, For XPZ - 56 mm |
| Unit | Each |
Logistics
| EAN | 4014486250138 |
|---|---|
| Unit of measure | EA |
| Weight | 1335 g |
| Dimensions | 110 × 110 × 42 mm |
| Dangerous goods | No |
You might also like
BPA000322768
Kramp Bearing NWB07994
£21.68 excl.
£26.02 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000337778
Kramp Pin and bush kit PBKUBU173
£243.78 excl.
£292.54 incl.
In stock
Expected to ship on Monday 21 September
BPA000375789
Kramp Cable tie 7.6x300mm, FW black, 100pcs TR01FW76300BLA
£16.00 excl.
£19.20 incl.
In stock
Expected to ship on Friday 18 September
BPA000157742

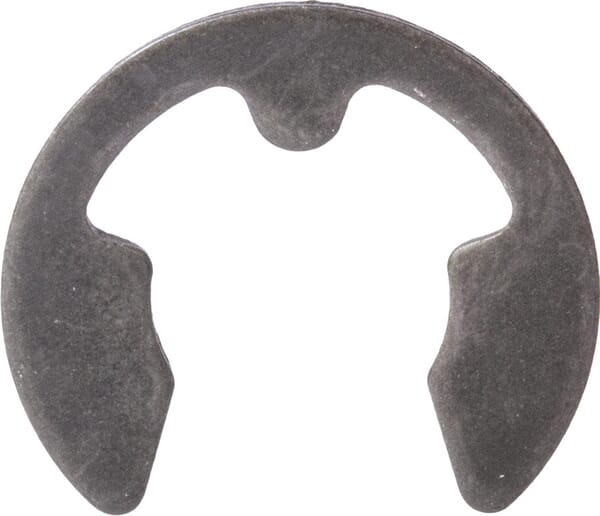

Kramp E-clip external 11x1.2mm DIN6799 Steel 679910
£0.15 excl.
£0.18 incl.
In stock
Expected to ship on Friday 18 September
BPA000092366
Kramp Oil seal 1-3/8x2-1/2x1/2" type:CB DIN 3760 1x 3492635127CBP001
£2.60 excl.
£3.12 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000240772

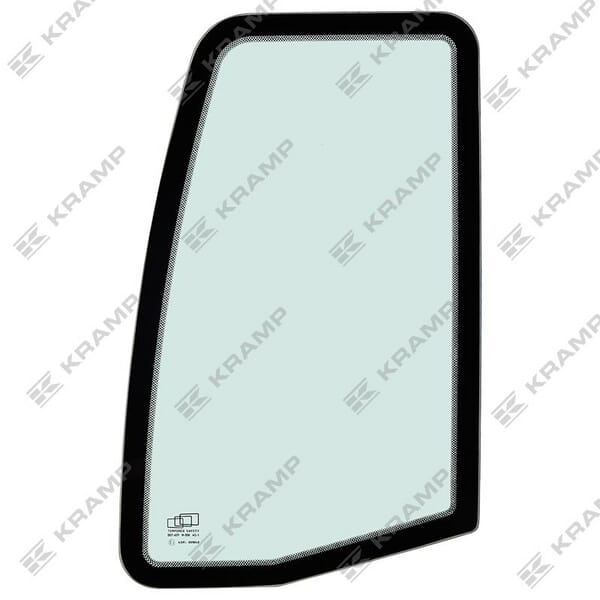

Kramp Door window upper CCGKUB028
