£52.49
excl. VAT
£62.99 incl. VAT
£62.99
incl. VAT
£52.49 excl. VAT
In stock
Expected to ship on Thursday 24 September
Product details
| Application range | Construction machines, Forestry machinery, Agricultural machinery, Mechanical engineering |
|---|---|
| Belt width | 10 mm |
| Bore diameter | 20 mm |
| BWorking width | 40 mm |
| Designed for belt type | V-Belt |
| Designed for V-belt profile | Z, SPZ, AVX10 |
| dMax. bore diameter | 26 mm |
| Hub diameter | 65 mm |
| LHub width | 45 mm |
| Lock type | n/a |
| Long description | Pulleys standard profile SPZ - 3 grooves |
| Material | Cast iron |
| Max. speed | 30 m/s |
| Number of grooves | 3 |
| OPulley outside diameter | 164 mm |
| PPitch diameter | 160 mm |
| Pulley type | 3 |
| Technical info | Hub bore, keyway and tapped hole are optional, Recommended minimum diameter of the v-belt pulley:, For VB10 - 50 mm, For SPZ - 63 mm, For XPZ - 56 mm |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 3444 g |
| Dimensions | 165 × 165 × 45 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000185043

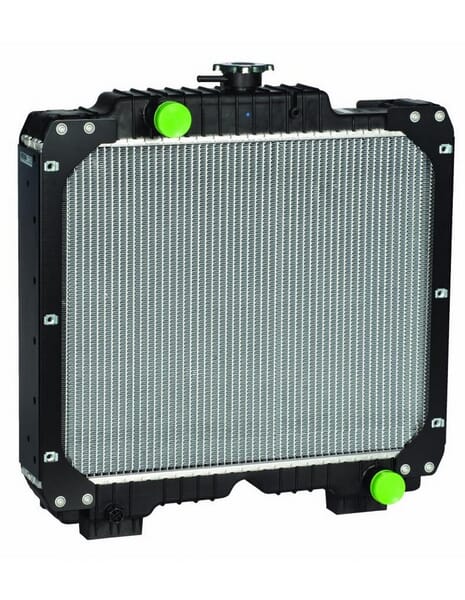

Kramp Radiator 84221364N
£452.58 excl.
£543.10 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000283768
Kramp Camlock Type D 1/2" female thread aluminium HCN100DAL013
£4.90 excl.
£5.88 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000109762
Kramp Oil seal 40x65x10mm type:CB Viton Stainless steel DIN 3760 1x 406510CBVP001
£13.37 excl.
£16.04 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000098179
Kramp Oil seal 35x65x12mm type:CC DIN 3760 1x 356512CCP001
£2.35 excl.
£2.82 incl.
In stock
Expected to ship on Thursday 24 September
BPA000322494
Kramp Bearing NWB09890
£36.02 excl.
£43.22 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000321990

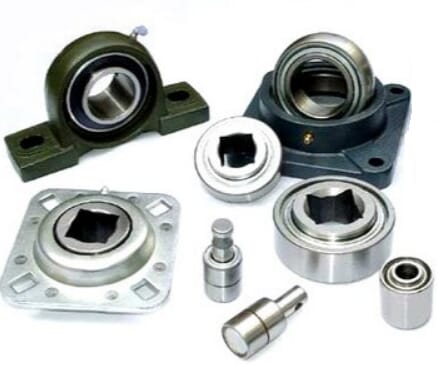

Kramp Bearing NWB09349
