£96.50
excl. VAT
£115.80 incl. VAT
£115.80
incl. VAT
£96.50 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Construction machines, Forestry machinery, Agricultural machinery, Mechanical engineering |
|---|---|
| Belt width | 10 mm |
| BWorking width | 40 mm |
| Designed for belt type | V-Belt |
| Designed for V-belt profile | Z, SPZ, AVX10 |
| dMax. bore diameter | 20 mm |
| Hub diameter | 65 mm |
| LHub width | 45 mm |
| Lock type | n/a |

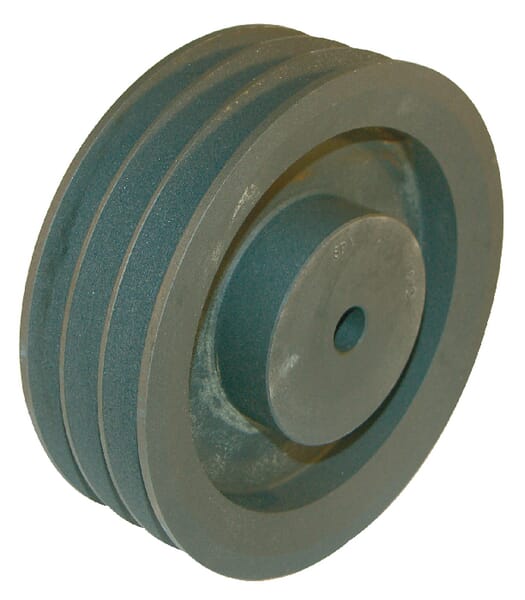

| Long description | Pulleys standard profile SPZ - 3 grooves |
| Material | Cast iron |
| Max. speed | 30 m/s |
| Number of grooves | 3 |
| OPulley outside diameter | 184 mm |
| PPitch diameter | 180 mm |
| Pulley type | 5 |
| Technical info | Hub bore, keyway and tapped hole are optional, Recommended minimum diameter of the v-belt pulley:, For VB10 - 50 mm, For SPZ - 63 mm, For XPZ - 56 mm |
| Unit | Each |
Logistics
| EAN | 4014486236606 |
|---|---|
| Unit of measure | EA |
| Weight | 2990 g |
| Dimensions | 185 × 185 × 50 mm |
| Dangerous goods | No |
You might also like
BPA000119460

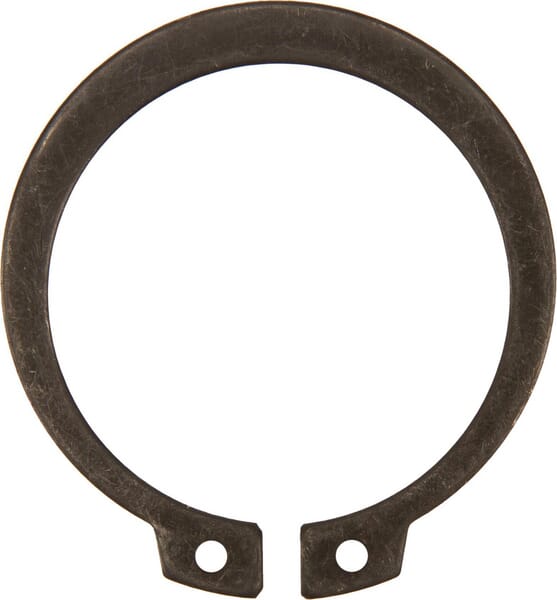

Kramp Circlip external 40x1.8mm DIN471 Steel 47140P010
£1.11 excl.
£1.33 incl.
In stock
Expected to ship on Monday 21 September
BPA000327592

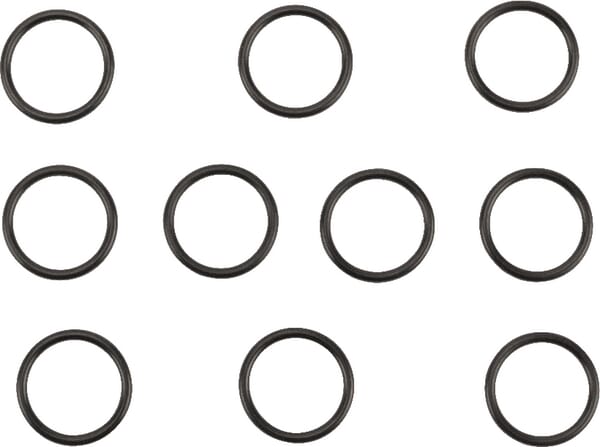

Kramp O-ring 21.9x2.62mm 90 shore 10x OR219026290P010
