£115.07
excl. VAT
£138.08 incl. VAT
£138.08
incl. VAT
£115.07 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Construction machines, Forestry machinery, Agricultural machinery, Mechanical engineering |
|---|---|
| Belt width | 10 mm |
| Benefits | Can be used with different shaft diameters, Fast and simple to assemble and dismantle |
| Consists of | V-belt pulley, No taperlock adjustment bush supplied |
| Designed for belt type | V-Belt |
| Designed for V-belt profile | Z, SPZ, AVX10 |
| Details | With taperlock bore |
| FWorking width | 40 mm |
| Hub diameter | 120 mm |
| Hub width | 45 mm |
| JChamber diameter | 286 mm |
| KHub offset 1 | 2.5 mm |
| Lock type | 2517 |
| Material | Cast iron |
| Max. bore diameter | 50 mm |
| Max. speed | 30 m/s |
| MHub offset 2 | 2.5 mm |
| Number of grooves | 3 |
| OPulley outside diameter | 319 mm |
| PPitch diameter | 315 mm |
| Pulley type | 4 |
| Technical info | Recommended minimum diameter of the v-belt pulley:, For VB10 - 50 mm, For SPZ - 63 mm, For XPZ - 56 mm |
| Unit | Each |
Logistics
| EAN | 4014486251111 |
|---|---|
| Unit of measure | EA |
| Weight | 7574 g |
| Dimensions | 320 × 316 × 48 mm |
| Dangerous goods | No |
You might also like
BPA000360995

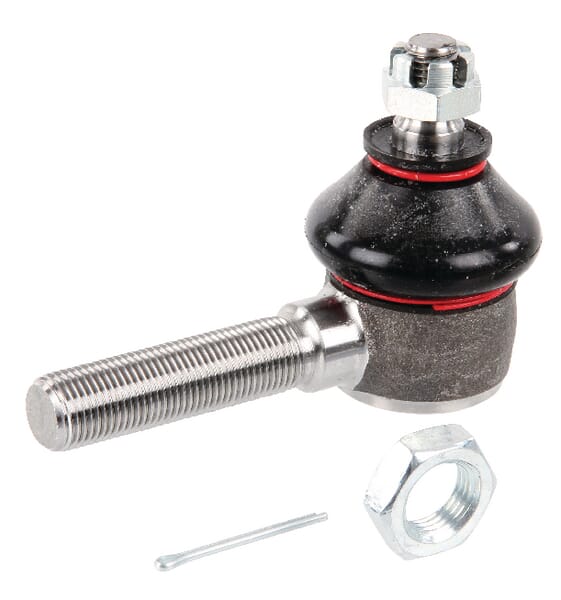

Kramp Tie rod end, right SHP281KR
£35.78 excl.
£42.94 incl.
In stock
Expected to ship on Monday 21 September
BPA000356054

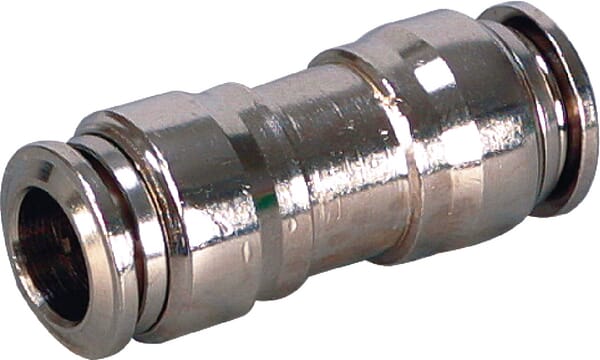

Kramp Push-in fitting 6 mm straight SC6NSF
£5.36 excl.
£6.43 incl.
In stock
Expected to ship on Monday 21 September
BPA000304650
Kramp Polo Sweatshirt navy S KW106930536048
£43.74 excl.
£52.49 incl.
In stock
Expected to ship on Monday 21 September
BPA000270998

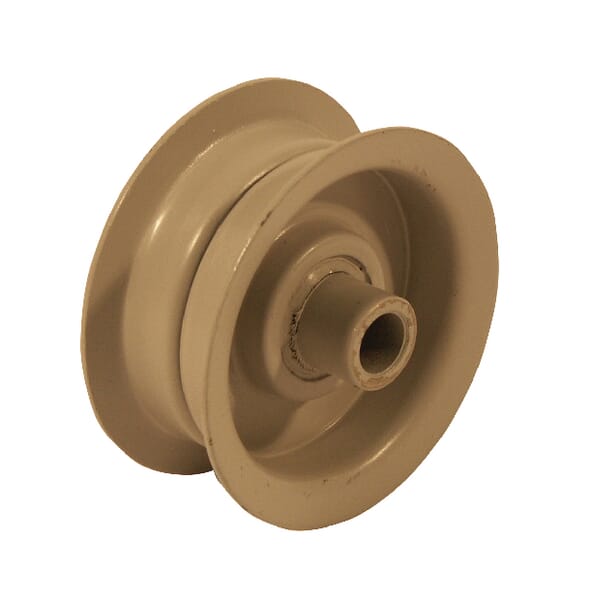

Kramp Pulley 3/8"x2" FGP011874
£19.82 excl.
£23.78 incl.
In stock
Expected to ship on Monday 21 September
BPA000284483

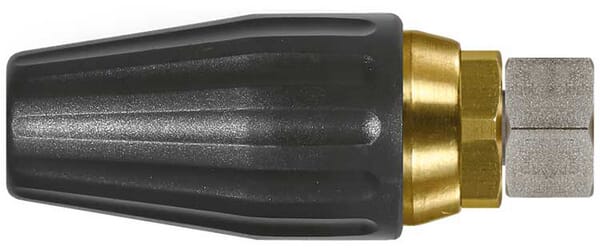

Kramp High pressure dirt blaster 20° 080 suitable for Kärcher HD3571880K
£60.05 excl.
£72.06 incl.
In stock
Expected to ship on Monday 21 September
BPA000298797

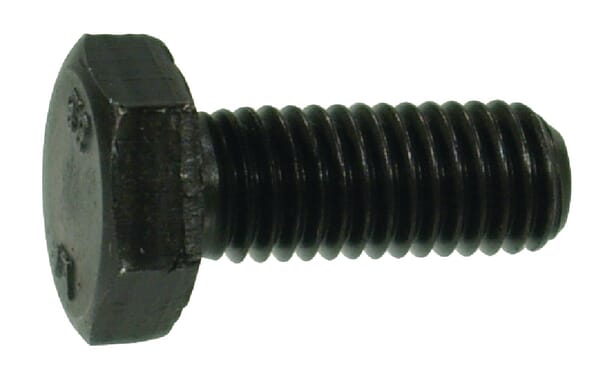

Kramp Hexagon head bolt ISO4017 M12x35 steel 8.8 ISO40171235B
