£20.28
excl. VAT
£24.34 incl. VAT
£24.34
incl. VAT
£20.28 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Construction machines, Forestry machinery, Agricultural machinery, Mechanical engineering |
|---|---|
| Belt width | 10 mm |
| Benefits | Can be used with different shaft diameters, Fast and simple to assemble and dismantle |
| Consists of | V-belt pulley, No taperlock adjustment bush supplied |
| Designed for belt type | V-Belt |
| Designed for V-belt profile | Z, SPZ, AVX10 |
| Details | With taperlock bore |
| FWorking width | 40 mm |
| Hub width | 25 mm |
| JChamber diameter | 51 mm |
| KHub offset 1 | 15 mm |
| Lock type | 1210 |
| Material | Cast iron |
| Max. bore diameter | 32 mm |
| Max. speed | 30 m/s |
| Number of grooves | 3 |
| OPulley outside diameter | 84 mm |
| PPitch diameter | 80 mm |
| Pulley type | 8 |
| Technical info | Recommended minimum diameter of the v-belt pulley:, For VB10 - 50 mm, For SPZ - 63 mm, For XPZ - 56 mm |
| Unit | Each |
Logistics
| EAN | 4014486249880 |
|---|---|
| Unit of measure | EA |
| Weight | 702 g |
| Dimensions | 82 × 82 × 40 mm |
| Dangerous goods | No |
You might also like
BPA000203311
Kramp Hexagon head bolt DIN933 M14x150 stainless steel A2 93314150RVS
£4.48 excl.
£5.38 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000328248
Kramp O-ring 32.1x1.6mm 70 shore 10x OR3210160P010
£1.85 excl.
£2.22 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000023203

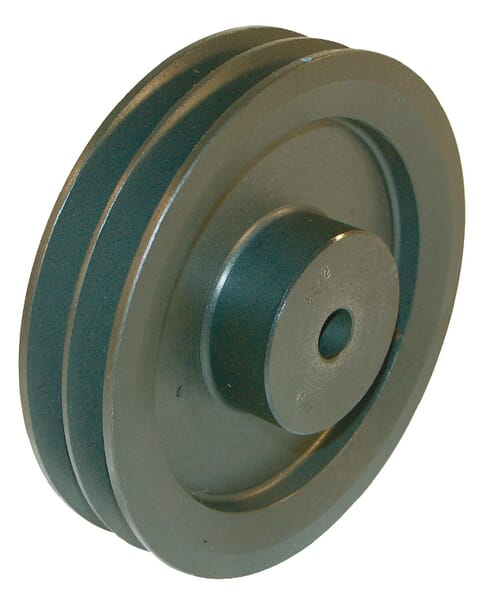

Kramp V-belt pulley 2 groove B or SPB diameter 78 mm 071B2
