£19.27
excl. VAT
£23.12 incl. VAT
£23.12
incl. VAT
£19.27 excl. VAT
In stock
Expected to ship on Tuesday 22 September

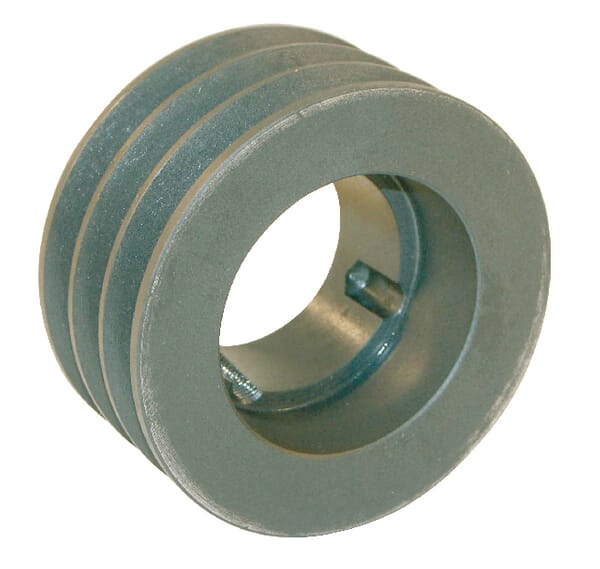

Product details
| Application range | Construction machines, Forestry machinery, Agricultural machinery, Mechanical engineering |
|---|---|
| Belt width | 10 mm |
| Benefits | Can be used with different shaft diameters, Fast and simple to assemble and dismantle |
| Consists of | V-belt pulley, No taperlock adjustment bush supplied |
| Designed for belt type | V-Belt |
| Designed for V-belt profile | Z, SPZ, AVX10 |
| Details | With taperlock bore |
| FWorking width | 40 mm |
| Hub width | 25 mm |
| JChamber diameter | 60 mm |
| KHub offset 1 | 15 mm |
| Lock type | 1610 |
| Material | Cast iron |
| Max. bore diameter | 42 mm |
| Max. speed | 30 m/s |
| Number of grooves | 3 |
| OPulley outside diameter | 89 mm |
| PPitch diameter | 85 mm |
| Pulley type | 8 |
| Technical info | Recommended minimum diameter of the v-belt pulley:, For VB10 - 50 mm, For SPZ - 63 mm, For XPZ - 56 mm |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
1610138TLKR
Optibelt Taperlock bush 1 3/8" Z6 1610138TLKR
£9.49 excl.
£11.39 incl.
161014TLKR
Optibelt Taperlock bush 14 mm 161014TLKR
£9.05 excl.
£10.86 incl.
161016TLKR
Optibelt Taperlock bush 16 mm 161016TLKR
£9.05 excl.
£10.86 incl.
161018TLKR
Optibelt Taperlock bush 18 mm 161018TLKR
£9.05 excl.
£10.86 incl.
161019TLKR
Optibelt Taperlock bush 19 mm 161019TLKR
£9.05 excl.
£10.86 incl.
161020TLKR
Optibelt Taperlock bush 20 mm 161020TLKR
£9.05 excl.
£10.86 incl.
161022TLKR
Optibelt Taperlock bush 22 mm 161022TLKR
£9.05 excl.
£10.86 incl.
161024TLKR
Optibelt Taperlock bush 24 mm 161024TLKR
£9.05 excl.
£10.86 incl.
161025TLKR
Optibelt Taperlock bush 1610 25mm Kramp 161025TLKR
£9.05 excl.
£10.86 incl.
161028TLKR
Optibelt Taperlock bush 28 mm 161028TLKR
£9.05 excl.
£10.86 incl.
161030TLKR
Optibelt Taperlock bush 30 mm 161030TLKR
£9.05 excl.
£10.86 incl.
161032TLKR
Optibelt Taperlock bush 32 mm 161032TLKR
£9.05 excl.
£10.86 incl.
161035TLKR
Optibelt Taperlock bush 35 mm 161035TLKR
£9.05 excl.
£10.86 incl.
161038TLKR
Optibelt Taperlock bush 38 mm 161038TLKR
£9.05 excl.
£10.86 incl.
161040TLKR
Optibelt Taperlock bush 40 mm 161040TLKR
£9.05 excl.
£10.86 incl.
161042TLKR
Optibelt Taperlock bush 42 mm 161042TLKR
£9.05 excl.
£10.86 incl.
1610E112TLKR
Optibelt Taperlock bush 1 1/2" 1610E112TLKR
£9.05 excl.
£10.86 incl.
1610E114TLKR
Optibelt Taperlock bush 1 1/4" 1610E114TLKR
£9.05 excl.
£10.86 incl.
1610E118TL
Optibelt Taperlock bush 1 1/8" 1610E118TL
£9.05 excl.
£10.86 incl.
1610E138TLKR
Optibelt Taperlock bush 1 3/8" 1610E138TLKR
£12.12 excl.
£14.54 incl.
1610E1TLKR
Optibelt Taperlock bush 1" 1610E1TLKR
£9.05 excl.
£10.86 incl.
1610E34TLKR
Optibelt Taperlock bush 3/4" 1610E34TLKR
£9.05 excl.
£10.86 incl.
1610E58TLKR
Optibelt Taperlock bush 5/8" 1610E58TLKR
£9.05 excl.
£10.86 incl.
1610E78TLKR
Optibelt Taperlock bush 7/8" 1610E78TLKR
£9.05 excl.
£10.86 incl.
Logistics
| EAN | 4014486249927 |
|---|---|
| Unit of measure | EA |
| Weight | 650 g |
| Dimensions | 90 × 90 × 40 mm |
| Dangerous goods | No |
You might also like
BPA000304424

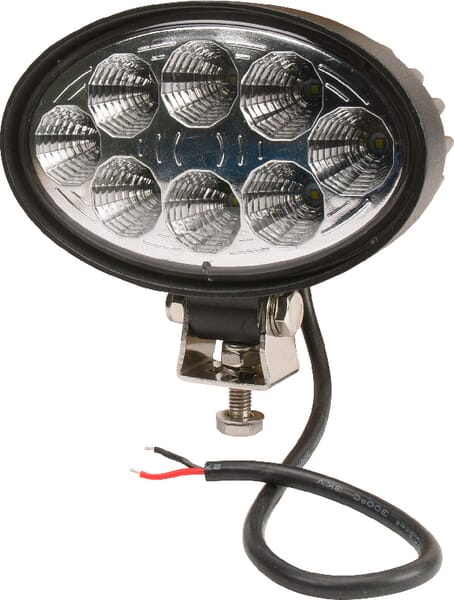

Kramp Work light LED, 24W, 2240lm, oval, 10/30V, 141.5x64.5x90mm, Flood, 8 LED's, LA10058
£22.41 excl.
£26.89 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000246737

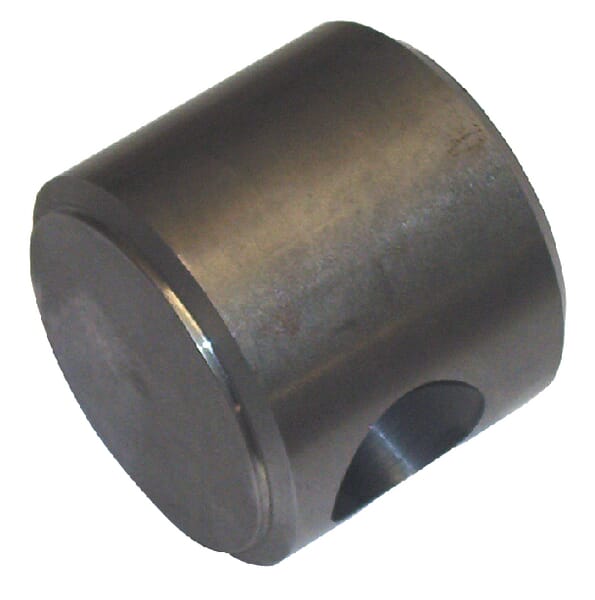

Kramp End cap+hole d.16.2 D40 SATURN DC39BEVD040B
£13.49 excl.
£16.19 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000398871

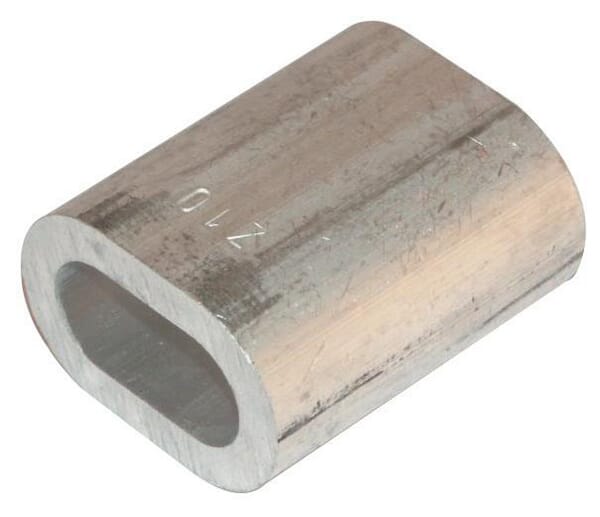

Kramp Alu cable swage ferrule 6mm WK06
£1.53 excl.
£1.84 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000172741
Kramp Vibration damper SS TYPE B 7555B55RVS
£52.08 excl.
£62.50 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000151310

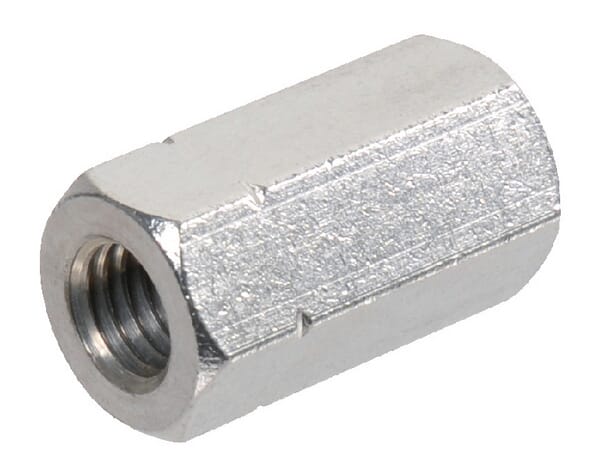

Kramp Connection nut DIN6334 M10x1.50 stainless steel A2 633410RVSP010
