£22.28
excl. VAT
£26.74 incl. VAT
£26.74
incl. VAT
£22.28 excl. VAT
In stock
Expected to ship on Monday 21 September
Product details
| Application range | Construction machines, Forestry machinery, Agricultural machinery, Mechanical engineering |
|---|---|
| Belt width | 10 mm |
| Benefits | Can be used with different shaft diameters, Fast and simple to assemble and dismantle |
| Consists of | V-belt pulley, No taperlock adjustment bush supplied |
| Designed for belt type | V-Belt |
| Designed for V-belt profile | Z, SPZ, AVX10 |
| Details | With taperlock bore |
| FWorking width | 40 mm |
| Hub width | 25 mm |
| JChamber diameter | 61 mm |
| KHub offset 1 | 15 mm |
| Lock type | 1610 |
| Material | Cast iron |
| Max. bore diameter | 42 mm |
| Max. speed | 30 m/s |
| Number of grooves | 3 |
| OPulley outside diameter | 94 mm |
| PPitch diameter | 90 mm |
| Pulley type | 8 |
| Technical info | Recommended minimum diameter of the v-belt pulley:, For VB10 - 50 mm, For SPZ - 63 mm, For XPZ - 56 mm |
| Unit | Each |
Logistics
| EAN | 4014486249972 |
|---|---|
| Unit of measure | EA |
| Weight | 865 g |
| Dimensions | 94 × 93 × 40 mm |
| Dangerous goods | No |
You might also like
BPA000202366
Kramp Hexagon nut DIN934 M20x2.50 steel Class 10 9342010B
£0.99 excl.
£1.19 incl.
In stock
Expected to ship on Monday 21 September
BPA000322050

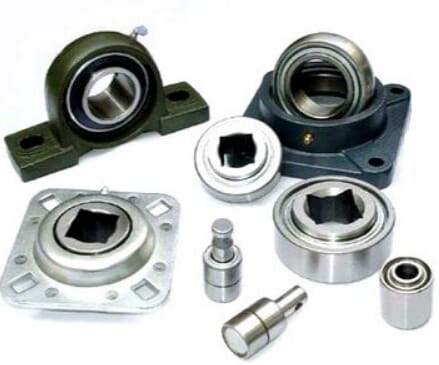

Kramp Bearing NWB09414
£9.38 excl.
£11.26 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000362157

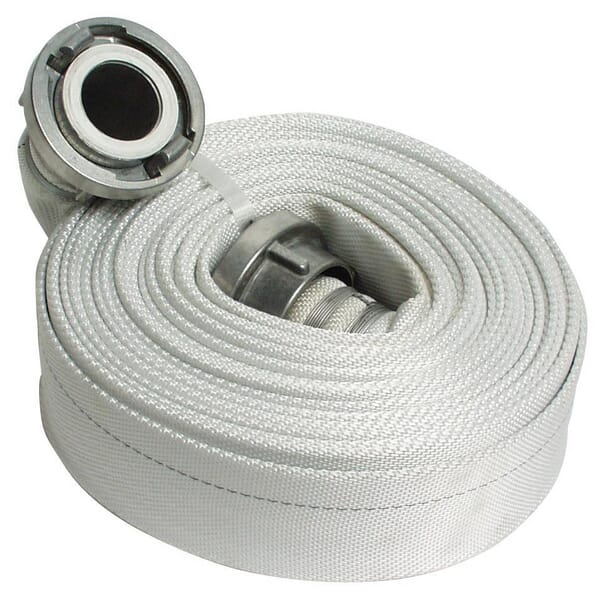

Kramp Storz fire hose B 10 m SL50507510K
£141.16 excl.
£169.39 incl.
In stock
Expected to ship on Monday 21 September
BPA000302172

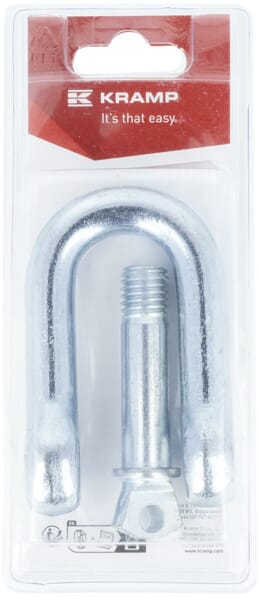

Kramp D-shackle diameter 14mm, M14 (1) KRDS14P01B
£2.17 excl.
£2.61 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000320868

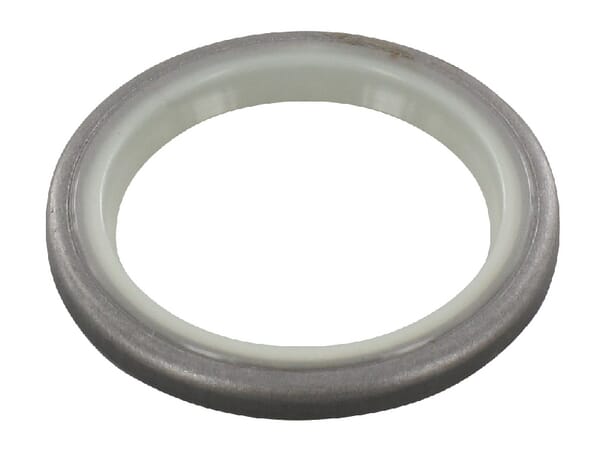

Kramp Pin seal MCWI70805
£16.30 excl.
£19.56 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000181819

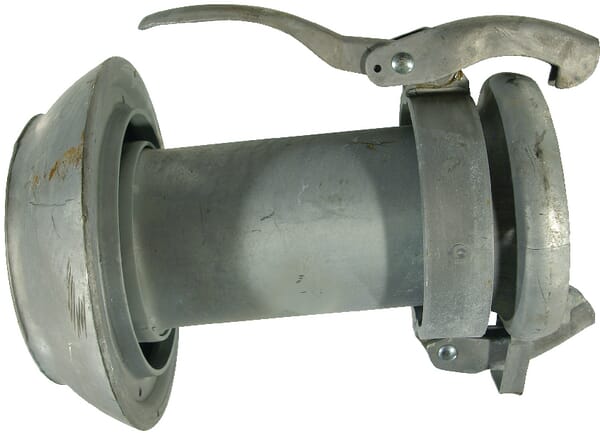

Kramp Male 8"+fem. 6" str. adaptor 8102006Z
