£41.08
excl. VAT
£49.30 incl. VAT
£49.30
incl. VAT
£41.08 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Construction machines, Forestry machinery, Agricultural machinery, Mechanical engineering |
|---|---|
| Belt width | 13 mm |
| Benefits | Can be used with different shaft diameters, Fast and simple to assemble and dismantle |
| Consists of | V-belt pulley, No taperlock adjustment bush supplied |
| Designed for belt type | V-Belt |
| Designed for V-belt profile | A, SPA, AVX13 |
| Details | With taperlock bore |
| FWorking width | 65 mm |
| Hub width | 65 mm |
| JChamber diameter | 78 mm |
| KHub offset 1 | 33 mm |
| Lock type | 2012 |
| Material | Cast iron |
| Max. bore diameter | 50 mm |
| Max. speed | 30 m/s |
| Number of grooves | 4 |
| OPulley outside diameter | 117.5 mm |
| PPitch diameter | 112 mm |
| Pulley type | 8 |
| Technical info | Recommended minimum diameter of the v-belt pulley:, For VB13 - 71 mm, For SPA - 90 mm, For XPA - 71 mm |
| Unit | Each |
Logistics
| EAN | 4014486245257 |
|---|---|
| Unit of measure | EA |
| Weight | 1900 g |
| Dimensions | 117 × 117 × 64 mm |
| Dangerous goods | No |
You might also like
BPA000278160
Kramp Hook set Trima, SMS, Lundberg, Wille FT2009
£57.96 excl.
£69.55 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000254663
Kramp Cylinder D30-60-600 ST-series D3060600ST
£211.32 excl.
£253.58 incl.
In stock
Expected to ship on Friday 18 September
BPA000304452

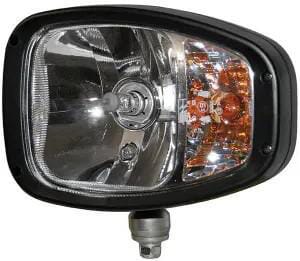

Kramp Headlight Halogen, LH 24V, LA10209H24V
£90.31 excl.
£108.37 incl.
In stock
Expected to ship on Monday 21 September
BPA000320270
Kramp Bearing NWB07459
£53.27 excl.
£63.92 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000025630

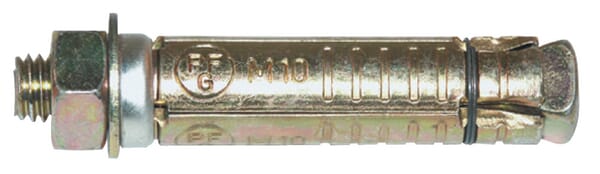

Kramp Shield anchor M10x120x60 4.6 1012060
