Product details
| Application range | Construction machines, Forestry machinery, Agricultural machinery, Mechanical engineering |
|---|---|
| Belt width | 13 mm |
| Bore diameter | 20 mm |
| BWorking width | 65 mm |
| Contains spokes | No |
| Designed for belt type | V-Belt |
| Designed for V-belt profile | A, SPA, AVX13 |
| dMax. bore diameter | 36 mm |
| Hub diameter | 60 mm |
| LHub width | 53 mm |
| Lock type | n/a |
| Long description | Pulleys standard profile SPA - 4 grooves |
| Material | Cast iron |
| Max. speed | 30 m/s |
| Number of grooves | 4 |
| OPulley outside diameter | 155.5 mm |
| PPitch diameter | 150 mm |
| Pulley type | 2 |
| Technical info | Hub bore, keyway and tapped hole are optional, Recommended minimum diameter of the v-belt pulley:, For VB13 - 71 mm, For SPA - 90 mm, For XPA - 71 mm |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 4149 g |
| Dimensions | 155 × 155 × 64 mm |
| Dangerous goods | No |
You might also like
BPA000198343
Kramp Hexagon head bolt DIN931 M30x240 steel 10.9 93130240109B
£16.06 excl.
£19.27 incl.
In stock
Expected to ship on Friday 18 September
BPA000370451

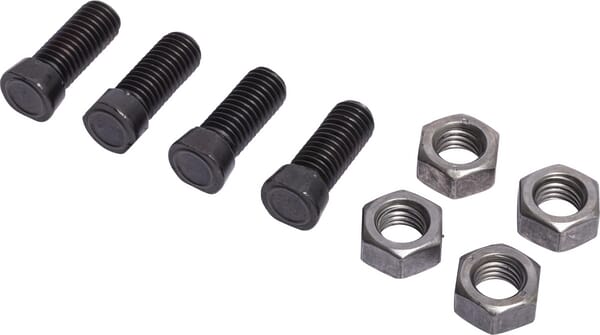

Kramp Bolt pack 4x M12x34 C2F+Nuts TB60012
£4.34 excl.
£5.21 incl.
In stock
Expected to ship on Friday 18 September
BPA000115132

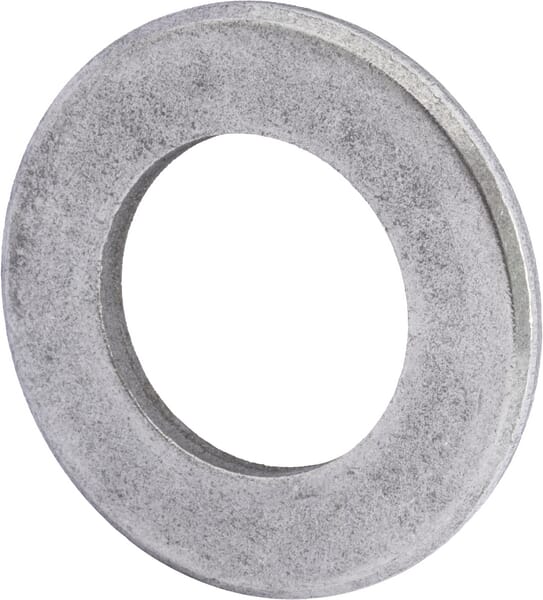

Kramp Washer M4x1mm, Steel Zinc-plated DIN 433 4334
£0.13 excl.
£0.16 incl.
In stock
Expected to ship on Friday 18 September
BPA000320809

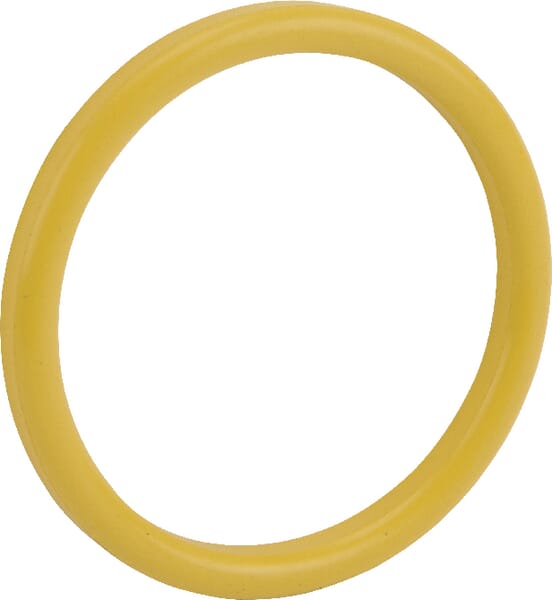

Kramp Milk coupling gasket DN50 MCG50HNBR
