£99.93
excl. VAT
£119.92 incl. VAT
£119.92
incl. VAT
£99.93 excl. VAT
In stock
Expected to ship on Friday 18 September
Product details
| Application range | Construction machines, Forestry machinery, Agricultural machinery, Mechanical engineering |
|---|---|
| Belt width | 13 mm |
| Benefits | Can be used with different shaft diameters, Fast and simple to assemble and dismantle |
| Consists of | V-belt pulley, No taperlock adjustment bush supplied |
| Designed for belt type | V-Belt |
| Designed for V-belt profile | A, SPA, AVX13 |
| Details | With taperlock bore |
| FWorking width | 65 mm |
| Hub width | 65 mm |
| JChamber diameter | 146 mm |
| Lock type | 2517 |
| Material | Cast iron |
| Max. bore diameter | 60 mm |
| Max. speed | 30 m/s |
| MHub offset 2 | 20 mm |
| Number of grooves | 4 |
| OPulley outside diameter | 195.5 mm |
| PPitch diameter | 190 mm |
| Pulley type | 2 |
| Technical info | Recommended minimum diameter of the v-belt pulley:, For VB13 - 71 mm, For SPA - 90 mm, For XPA - 71 mm |
| Unit | Each |
Logistics
| EAN | 4014486245707 |
|---|---|
| Unit of measure | EA |
| Weight | 7733 g |
| Dimensions | 195 × 195 × 65 mm |
| Dangerous goods | No |
You might also like
BPA000240347
Kramp Slider door front upper LH CCGBOB019
£57.75 excl.
£69.30 incl.
In stock
Expected to ship on Friday 18 September
BPA000357886

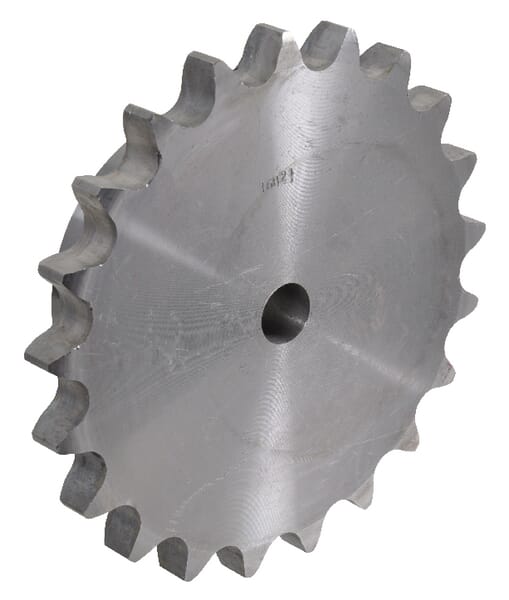

Kramp Sprocket Simplex 40 teeth 1" chain 16 B-1 SE140
£71.89 excl.
£86.27 incl.
In stock
Expected to ship on Friday 18 September
BPA000356572
Kramp Push-in fitting straight 6x1/4 SCS614NSF
£4.73 excl.
£5.68 incl.
In stock
Expected to ship on Friday 18 September
BPA000281419

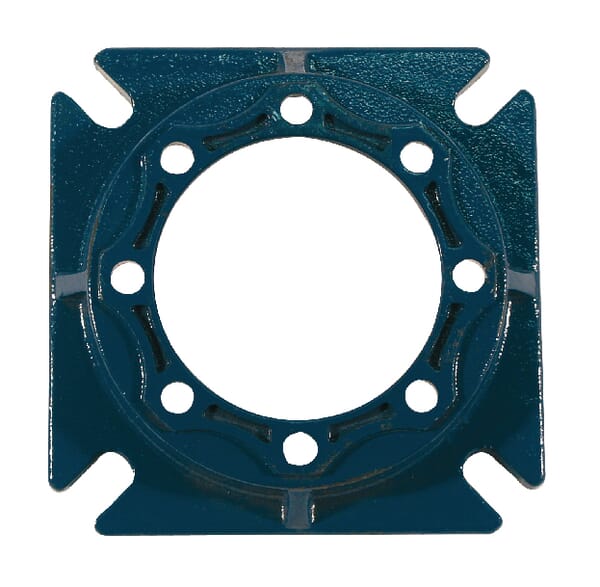

Kramp Output flange F GMR 050 GMR9050F
£10.42 excl.
£12.50 incl.
In stock
Expected to ship on Friday 18 September
BPA000284480

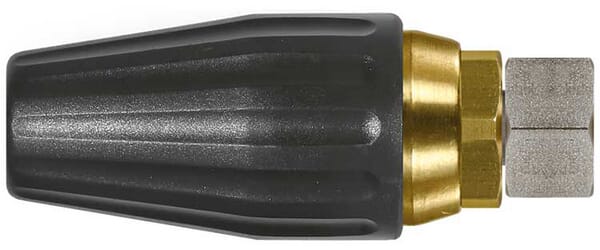

Kramp High pressure dirt blaster 20° 060 suitable for Kärcher HD3571860K
£60.05 excl.
£72.06 incl.
In stock
Expected to ship on Monday 21 September
BPA000144670

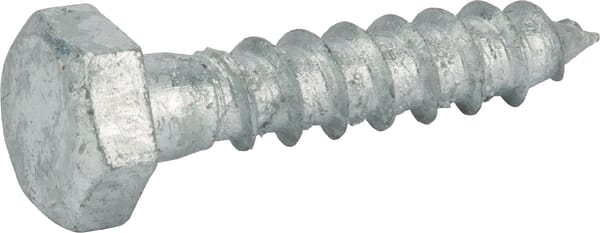

Kramp Wood screw 7x130mm, 12mm hex head, DIN 571 5717130TV
