£86.42
excl. VAT
£103.70 incl. VAT
£103.70
incl. VAT
£86.42 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Construction machines, Forestry machinery, Agricultural machinery, Mechanical engineering |
|---|---|
| Belt width | 17 mm |
| Bore diameter | 20 mm |
| BWorking width | 82 mm |
| Designed for belt type | V-Belt |
| Designed for V-belt profile | B, SPB |
| dMax. bore diameter | 20 mm |
| LHub width | 60 mm |
| Lock type | n/a |
| Material | Cast iron |
| Max. speed | 30 m/s |
| Number of grooves | 4 |
| OPulley outside diameter | 167 mm |
| PPitch diameter | 160 mm |
| Pulley type | 2 |
| Technical info | Hub bore, keyway and tapped hole are optional, Recommended minimum diameter of the v-belt pulley:, For VB17 - 112 mm, For SPB - 140 mm, For XPB - 112 mm |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 8386 g |
| Dimensions | 168 × 168 × 83 mm |
| Dangerous goods | No |
You might also like
BPA000270665

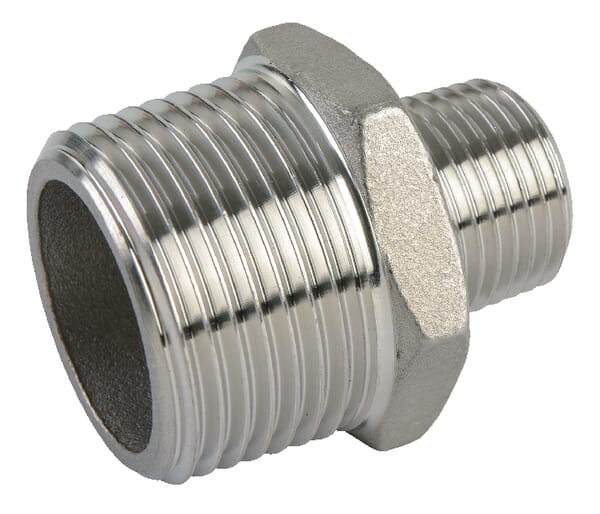

Kramp Reducer S.S. M 1 1/2"x1 1/4" FG245112114RVS
£8.30 excl.
£9.96 incl.
In stock
Expected to ship on Friday 18 September
BPA000057863
Kramp Combination spanner 10mm, 1802020010KR
£3.12 excl.
£3.74 incl.
In stock
Expected to ship on Friday 18 September
BPA000119548

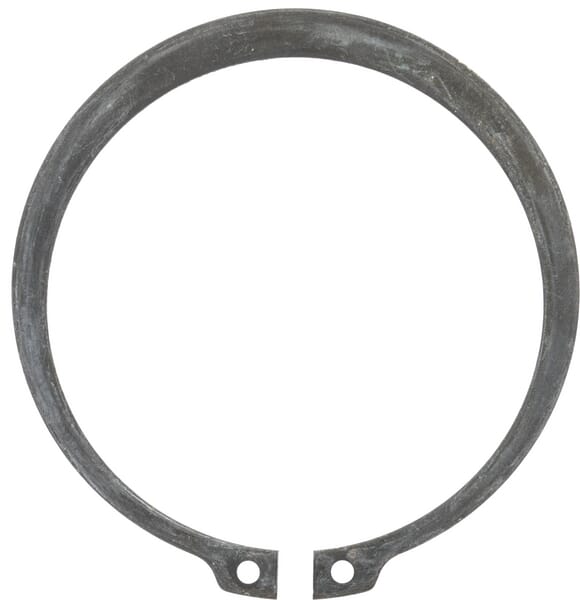

Kramp Circlip external 90x3mm DIN471 Steel 47190
