£80.71
excl. VAT
£96.85 incl. VAT
£96.85
incl. VAT
£80.71 excl. VAT
In stock
Expected to ship on Tuesday 22 September
Product details
| Application range | Construction machines, Forestry machinery, Agricultural machinery, Mechanical engineering |
|---|---|
| Belt width | 17 mm |
| Benefits | Can be used with different shaft diameters, Fast and simple to assemble and dismantle |
| Consists of | V-belt pulley, No taperlock adjustment bush supplied |
| Designed for belt type | V-Belt |
| Designed for V-belt profile | B, SPB |
| Details | With taperlock bore |
| FWorking width | 82 mm |
| Hub width | 45 mm |
| JChamber diameter | 117 mm |
| KHub offset 1 | 18.5 mm |
| Lock type | 2517 |
| Material | Cast iron |
| Max. bore diameter | 60 mm |
| Max. speed | 30 m/s |
| MHub offset 2 | 18.5 mm |
| Number of grooves | 4 |
| OPulley outside diameter | 167 mm |
| PPitch diameter | 160 mm |
| Pulley type | 3 |
| Technical info | Recommended minimum diameter of the v-belt pulley:, For VB17 - 112 mm, For SPB - 140 mm, For XPB - 112 mm |
| Unit | Each |
Logistics
| EAN | 4014486246711 |
|---|---|
| Unit of measure | EA |
| Weight | 5624 g |
| Dimensions | 168 × 168 × 82 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000372100

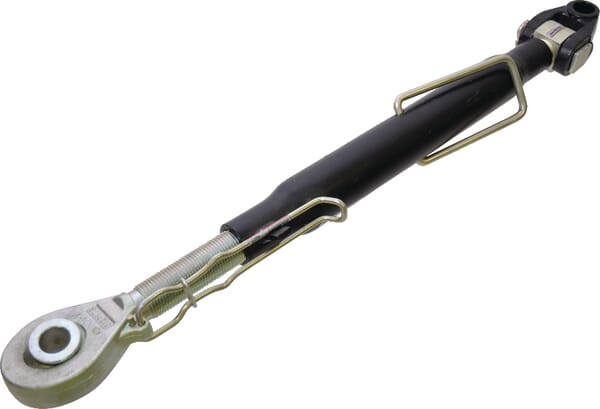

Kramp Toplink eye/knuckle 510, M36 cat.2/2 TL510362802KR
£140.22 excl.
£168.26 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000179629

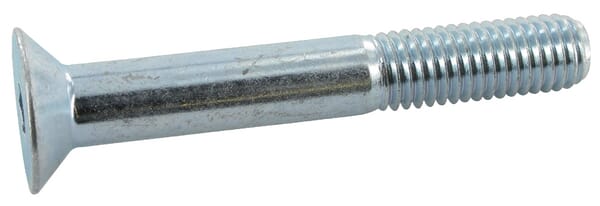

Kramp Countersunk head screw DIN7991 M8x60 steel zinc-plated 10.9 7991860
£0.47 excl.
£0.56 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000201967
Kramp Hexagon head bolt DIN933 M6x12 stainless steel A2 933612RVSP050
£0.09 excl.
£0.11 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000198603
Kramp Hexagon head bolt DIN931 M6x40 stainless steel A4 931640RVSA4
£0.33 excl.
£0.40 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000245715
Kramp Cultivator point 490x75x10mm, reversible left, curved, 4 hole, suitable for Amazone CP122KR
£13.07 excl.
£15.68 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000306059

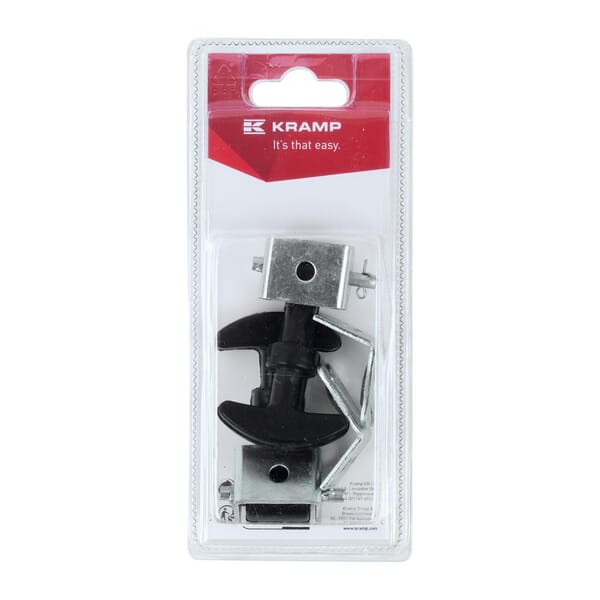

Kramp Bonnet holder 65mm (2) KRZ900650P02B
