£180.26
excl. VAT
£216.31 incl. VAT
£216.31
incl. VAT
£180.26 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September
Product details
| Application range | Construction machines, Forestry machinery, Agricultural machinery, Mechanical engineering |
|---|---|
| Belt width | 17 mm |
| Bore diameter | 25 mm |
| BWorking width | 82 mm |
| Contains spokes | Yes |
| Designed for belt type | V-Belt |
| Designed for V-belt profile | B, SPB |
| dMax. bore diameter | 54 mm |
| Hub diameter | 90 mm |
| LHub width | 70 mm |
| Lock type | n/a |
| Material | Cast iron |
| Max. speed | 30 m/s |
| Number of grooves | 4 |
| OPulley outside diameter | 257 mm |
| PPitch diameter | 250 mm |
| Pulley type | 4 |
| Technical info | Hub bore, keyway and tapped hole are optional, Recommended minimum diameter of the v-belt pulley:, For VB17 - 112 mm, For SPB - 140 mm, For XPB - 112 mm |
| Unit | Each |
Logistics
| EAN | 8716106992911 |
|---|---|
| Unit of measure | EA |
| Weight | 14225 g |
| Dimensions | 260 × 260 × 85 mm |
| Dangerous goods | No |
You might also like
BPA000161685
Kramp Pick-up tine 701700111N
£3.07 excl.
£3.68 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000396627
Kramp Concave wire Z20064N
£3.37 excl.
£4.04 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000309521
Kramp Terminal blade female, red, 0.5-1mm² 4.8x0.8mm (100x) LA9365CKR
£0.12 excl.
£0.14 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000251063

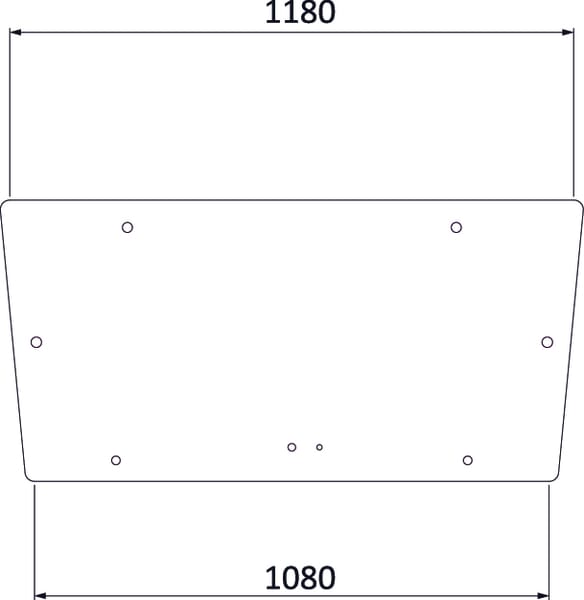

Kramp Rear window upper D6908A
