£159.40
excl. VAT
£191.28 incl. VAT
£191.28
incl. VAT
£159.40 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Construction machines, Forestry and farm equipment, Mechanical engineering |
|---|---|
| Belt width | 10 mm |
| Benefits | Can be used with different shaft diameters, Fast and simple to assemble and dismantle |
| Designed for belt type | V-Belt |
| Designed for V-belt profile | Z, SPZ, AVX10 |
| Details | For taperlock adjustment bushes |
| FWorking width | 52 mm |
| Hub diameter | 124 mm |
| Hub width | 45 mm |
| JChamber diameter | 326 mm |
| KHub offset 1 | 3.5 mm |
| Lock type | 2517 |
| Long description | Pulleys Taperlock profile SPZ - 4 grooves |
| Material | Cast iron |
| Max. bore diameter | 60 mm |
| Max. speed | 30 m/s |
| MHub offset 2 | 3.5 mm |
| Number of grooves | 4 |
| OPulley outside diameter | 359 mm |
| PPitch diameter | 355 mm |
| Pulley type | 5 |
| Technical info | Recommended minimum diameter of the v-belt pulley:, VB10 - 50 mm, SPZ - 63 mm, XPZ - 56 mm |
| Unit | Each |
Logistics
| EAN | 4014486251180 |
|---|---|
| Unit of measure | EA |
| Weight | 10850 g |
| Dimensions | 360 × 360 × 53 mm |
| Dangerous goods | No |
You might also like
BPA000119564

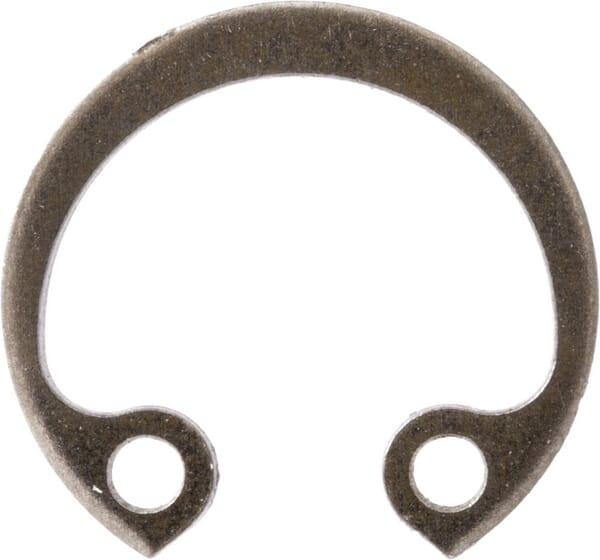

Kramp Circlip internal 9x0.8mm DIN472 Stainless steel 47209RVS
£0.19 excl.
£0.23 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000151344

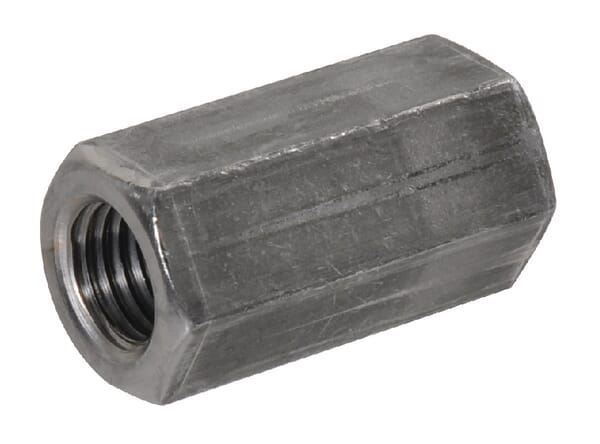

Kramp Connection nut DIN6334 M8x1.25 black 63348B
£0.14 excl.
£0.17 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000360752
Kramp Tie rod end RH Case - IH SHP015KR
£270.34 excl.
£324.41 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000203799

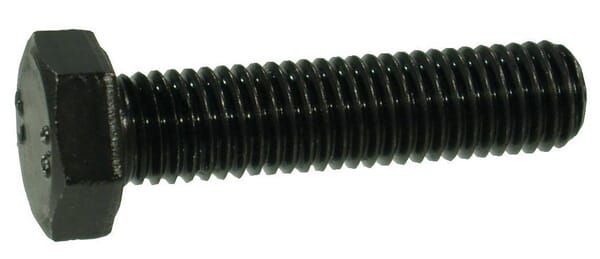

Kramp Hexagon head bolt DIN933 M4x16 steel 8.8 933416B
£0.04 excl.
£0.05 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000251536
Kramp Hose clamp, 55-65mm double bolt, double band DIN912 zinc plated DBHC5565
£1.56 excl.
£1.87 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000203202

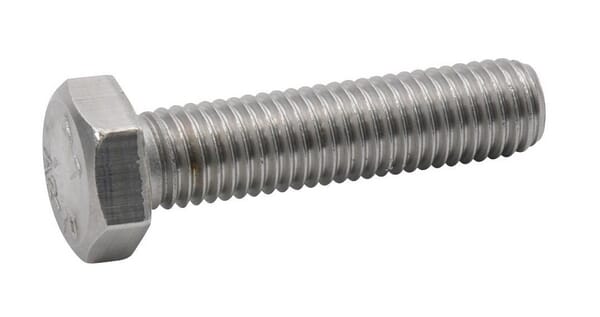

Kramp Hexagon head bolt DIN933 M12x25 stainless steel A4 9331225RVSA4P025
