£63.57
excl. VAT
£76.28 incl. VAT
£76.28
incl. VAT
£63.57 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Construction machines, Forestry machinery, Agricultural machinery, Mechanical engineering |
|---|---|
| Belt width | 13 mm |
| Benefits | Can be used with different shaft diameters, Fast and simple to assemble and dismantle |
| Consists of | V-belt pulley, No taperlock adjustment bush supplied |
| Designed for belt type | V-Belt |
| Designed for V-belt profile | A, SPA, AVX13 |
| Details | With taperlock bore |
| FWorking width | 80 mm |
| Hub width | 80 mm |
| JChamber diameter | 91 mm |
| KHub offset 1 | 24 mm |
| Lock type | 2012 |
| Material | Cast iron |
| Max. bore diameter | 50 mm |
| Max. speed | 30 m/s |
| MHub offset 2 | 24 mm |
| Number of grooves | 5 |
| OPulley outside diameter | 130.5 mm |
| PPitch diameter | 125 mm |
| Pulley type | 3 |
| Technical info | Recommended minimum diameter of the v-belt pulley:, For VB13 - 71 mm, For SPA - 90 mm, For XPA - 71 mm |
| Unit | Each |
Logistics
| EAN | 4014486245363 |
|---|---|
| Unit of measure | EA |
| Weight | 2900 g |
| Dimensions | 130 × 130 × 80 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000240832
Kramp Front window upper CCGMER008
£307.98 excl.
£369.58 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000330728
Kramp O-ring 72x2.5mm 75 shore Viton OR72250VP001
£3.42 excl.
£4.10 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000061066

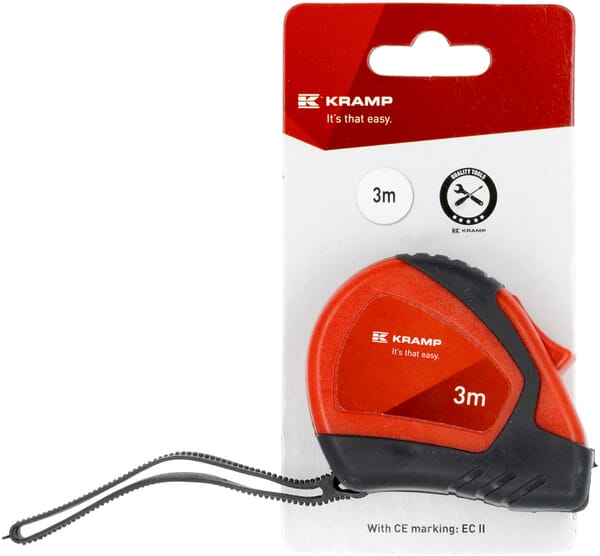

Kramp Tape measure anti slip 3 m 1842102003KR
£2.89 excl.
£3.47 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000099741

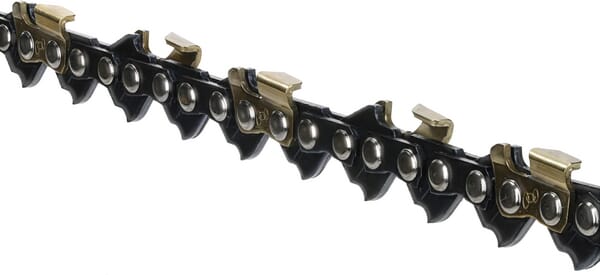

Kramp Saw chain 3/8" 1.5mm 68 DL semi chisel 3815SB68KR
