£268.01
excl. VAT
£321.61 incl. VAT
£321.61
incl. VAT
£268.01 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Construction machines, Forestry machinery, Agricultural machinery, Mechanical engineering |
|---|---|
| Belt width | 13 mm |
| Benefits | Can be used with different shaft diameters, Fast and simple to assemble and dismantle |
| Consists of | V-belt pulley, No taperlock adjustment bush supplied |
| Designed for belt type | V-Belt |
| Designed for V-belt profile | A, SPA, AVX13 |
| Details | With taperlock bore |
| ECore disc thickness | 25 |
| FWorking width | 80 mm |
| Hub diameter | 178 mm |
| Hub width | 65 mm |
| JChamber diameter | 280 mm |
| KHub offset 1 | 4.5 mm |
| Lock type | 3535 |
| Material | Cast iron |
| Max. bore diameter | 90 mm |
| Max. speed | 30 m/s |
| MHub offset 2 | 4.5 mm |
| Number of grooves | 5 |
| OPulley outside diameter | 320.5 mm |
| PPitch diameter | 315 mm |
| Pulley type | 7 |
| Technical info | Recommended minimum diameter of the v-belt pulley:, For VB13 - 71 mm, For SPA - 90 mm, For XPA - 71 mm |
| Unit | Each |
Logistics
| EAN | 4014486246063 |
|---|---|
| Unit of measure | EA |
| Weight | 21800 g |
| Dimensions | 320 × 320 × 90 mm |
| Dangerous goods | No |
You might also like
BPA000028831
Kramp Intake manifold 11281412203KR
£7.71 excl.
£9.25 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000260856
Kramp Electric motor 0.55 kW EM80A4B31B0IE2A
£214.69 excl.
£257.63 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000187711

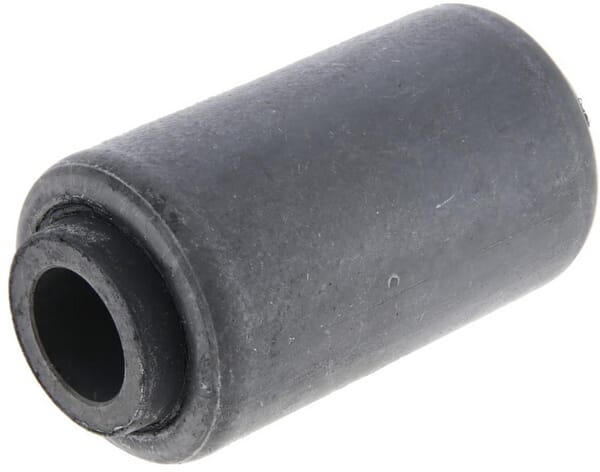

Kramp Bushing 87538599N
