£76.55
excl. VAT
£91.86 incl. VAT
£91.86
incl. VAT
£76.55 excl. VAT
In stock
Expected to ship on Monday 21 September
Product details
| Application range | Construction machines, Forestry machinery, Agricultural machinery, Mechanical engineering |
|---|---|
| Belt width | 17 mm |
| Benefits | Can be used with different shaft diameters, Fast and simple to assemble and dismantle |
| Consists of | V-belt pulley, No taperlock adjustment bush supplied |
| Designed for belt type | V-Belt |
| Designed for V-belt profile | B, SPB |
| Details | With taperlock bore |
| FWorking width | 101 mm |
| Hub width | 45 mm |
| JChamber diameter | 97 mm |
| KHub offset 1 | 28 mm |
| Lock type | 2517 |
| Material | Cast iron |
| Max. bore diameter | 60 mm |
| Max. speed | 30 m/s |
| MHub offset 2 | 28 mm |
| Number of grooves | 5 |
| OPulley outside diameter | 147 mm |
| PPitch diameter | 140 mm |
| Pulley type | 3 |
| Technical info | Recommended minimum diameter of the v-belt pulley:, For VB17 - 112 mm, For SPB - 140 mm, For XPB - 112 mm |
| Unit | Each |
Logistics
| EAN | 4014486246605 |
|---|---|
| Unit of measure | EA |
| Weight | 4368 g |
| Dimensions | 150 × 150 × 100 mm |
| Dangerous goods | No |
You might also like
BPA000342397
Kramp Platewheel Simplex 90 teeth 3/8" chain 06 B-1 PW3890
£29.63 excl.
£35.56 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000281274

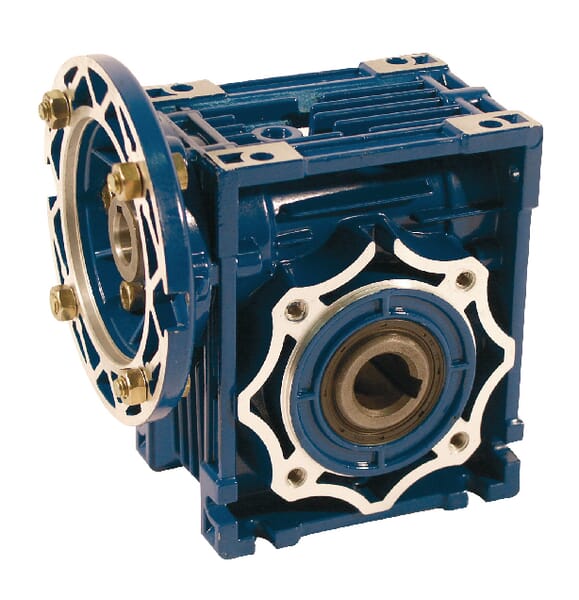

Kramp Worm gear reducer I = 7.5 GMR0407571B14
£124.07 excl.
£148.88 incl.
In stock
Expected to ship on Monday 21 September
BPA000342211
Kramp Platewheel Simplex 28 teeth 1/2" chain 08 B-1 PW1228
£5.40 excl.
£6.48 incl.
In stock
Expected to ship on Monday 21 September
BPA000360453
Kramp Screw on filter SOF14
£1.89 excl.
£2.27 incl.
In stock
Expected to ship on Monday 21 September
BPA000325756

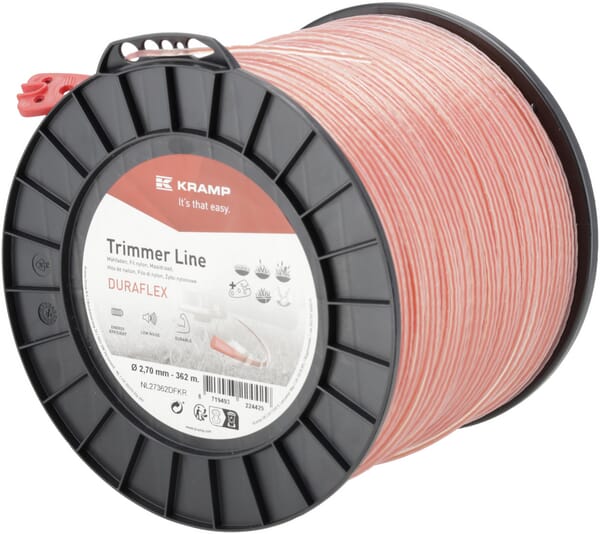

Kramp Trimmer line diameter 2.7x362m, Kramp DuraFlex NL27362DFKR
£56.66 excl.
£67.99 incl.
In stock
Expected to ship on Monday 21 September
BPA000173711

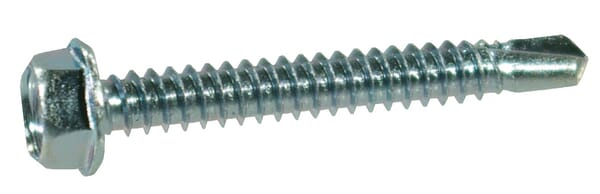

Kramp Self tapping screw 3.5x16mm, 5.5mm flange hex head, DIN 7504 7504K3516P200
