£397.95
excl. VAT
£477.54 incl. VAT
£477.54
incl. VAT
£397.95 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Construction machines, Forestry machinery, Agricultural machinery, Mechanical engineering |
|---|---|
| Belt width | 22 mm |
| Benefits | Can be used with different shaft diameters, Fast and simple to assemble and dismantle |
| Consists of | V-belt pulley, No taperlock adjustment bush supplied |
| Designed for belt type | V-Belt |
| Designed for V-belt profile | C, SPC |
| Details | With taperlock bore |
| ECore disc thickness | 20 |
| FWorking width | 136 mm |
| Hub diameter | 178 mm |
| Hub width | 89 mm |
| JChamber diameter | 244 mm |
| KHub offset 1 | 23.5 mm |
| Lock type | 3535 |
| Material | Cast iron |
| Max. bore diameter | 90 mm |
| Max. speed | 30 m/s |
| MHub offset 2 | 23.5 mm |
| Number of grooves | 5 |
| OPulley outside diameter | 309.6 mm |
| PPitch diameter | 300 mm |
| Pulley type | 6 |
| Technical info | Recommended minimum diameter of the v-belt pulley:, For VB22 - 180 mm, For SPC - 224 mm, For XPC - 180 mm |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
3535138TLKR
Optibelt Taperlock bush 1 3/8" Z6 3535138TLKR
£121.32 excl.
£145.58 incl.
353535TLKR
Optibelt Taperlock bush 35 mm 353535TLKR
£60.90 excl.
£73.08 incl.
353538TLKR
Optibelt Taperlock bush 38 mm 353538TLKR
£94.42 excl.
£113.30 incl.
353540TLKR
Optibelt Taperlock bush 40 mm 353540TLKR
£66.16 excl.
£79.39 incl.
353542TLKR
Optibelt Taperlock bush 42 mm 353542TLKR
£66.16 excl.
£79.39 incl.
353545TLKR
Optibelt Taperlock bush 45 mm 353545TLKR
£66.16 excl.
£79.39 incl.
353548TLKR
Optibelt Taperlock bush 48 mm 353548TLKR
£66.16 excl.
£79.39 incl.
353550TLKR
Optibelt Taperlock bush 50 mm 353550TLKR
£66.16 excl.
£79.39 incl.
353555TLKR
Optibelt Taperlock bush 55 mm 353555TLKR
£66.16 excl.
£79.39 incl.
353560TLKR
Optibelt Taperlock bush 60 mm 353560TLKR
£66.16 excl.
£79.39 incl.
353565TLKR
Optibelt Taperlock bush 65 mm 353565TLKR
£66.16 excl.
£79.39 incl.
353570TLKR
Optibelt Taperlock bush 70 mm 353570TLKR
£66.16 excl.
£79.39 incl.
353575TLKR
Optibelt Taperlock bush 75 mm 353575TLKR
£66.16 excl.
£79.39 incl.
353580TLKR
Optibelt Taperlock bush 80 mm 353580TLKR
£66.16 excl.
£79.39 incl.
353585TLKR
Optibelt Taperlock bush 85 mm 353585TLKR
£69.15 excl.
£82.98 incl.
353590TLKR
Optibelt Taperlock bush 90 mm 353590TLKR
£66.16 excl.
£79.39 incl.
Logistics
| EAN | 4014486248821 |
|---|---|
| Unit of measure | EA |
| Weight | 25000 g |
| Dimensions | 310 × 310 × 137 mm |
| Dangerous goods | No |
You might also like
BPA000361159
Kramp Tie rod end SHP477KR
£50.43 excl.
£60.52 incl.
Backorder available
Usually ships within 3–8 weeks

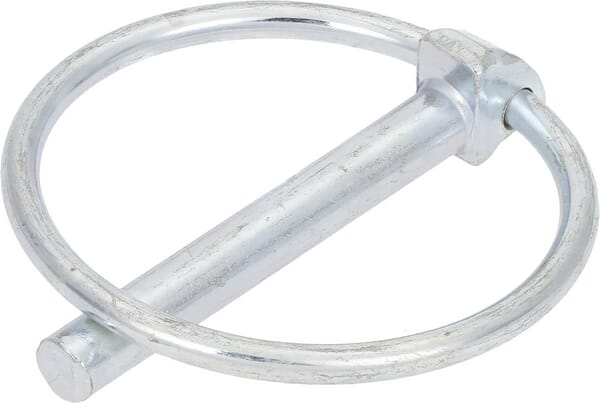

BPA000312452
Kramp Linch pin 6x45mm LP6KR
£0.24 excl.
£0.29 incl.
In stock
Expected to ship on Friday 18 September
BPA000308903
Kramp Marker light LED, square, 12-24V, 65x65x28mm, LA30138
£11.00 excl.
£13.20 incl.
In stock
Expected to ship on Friday 18 September

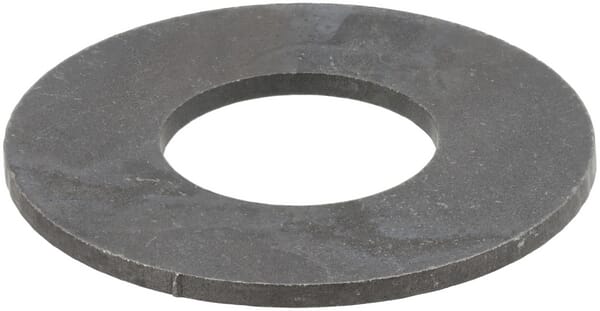

BPA000240044
Kramp Shim diameter 20x45x2mm CBS204520H
£2.33 excl.
£2.80 incl.
In stock
Expected to ship on Friday 18 September
BPA000328308
Kramp O-ring 33x2.5mm 90 shore 10x OR3325090P010
£7.87 excl.
£9.44 incl.
In stock
Expected to ship on Monday 21 September

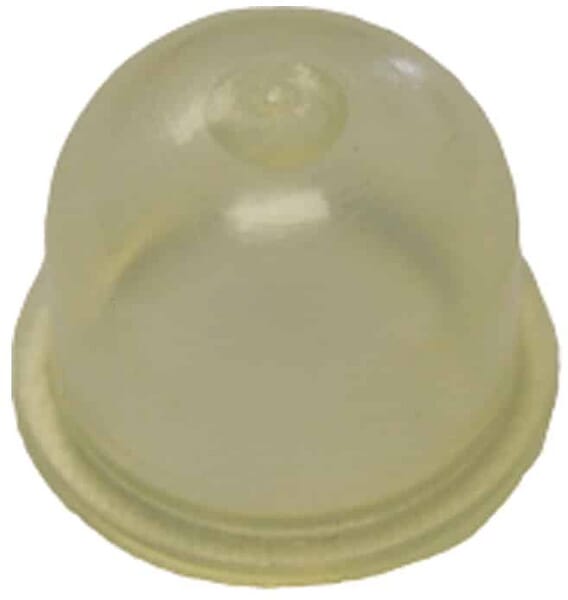

BPA000112901
