£67.53
excl. VAT
£81.04 incl. VAT
£81.04
incl. VAT
£67.53 excl. VAT
In stock
Expected to ship on Monday 21 September
About this product

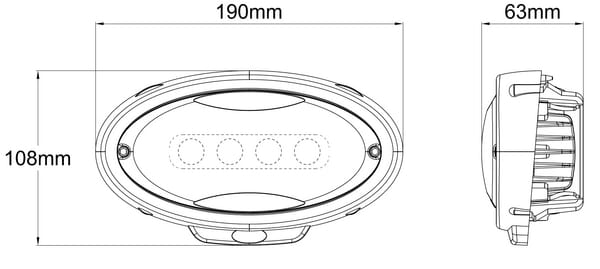

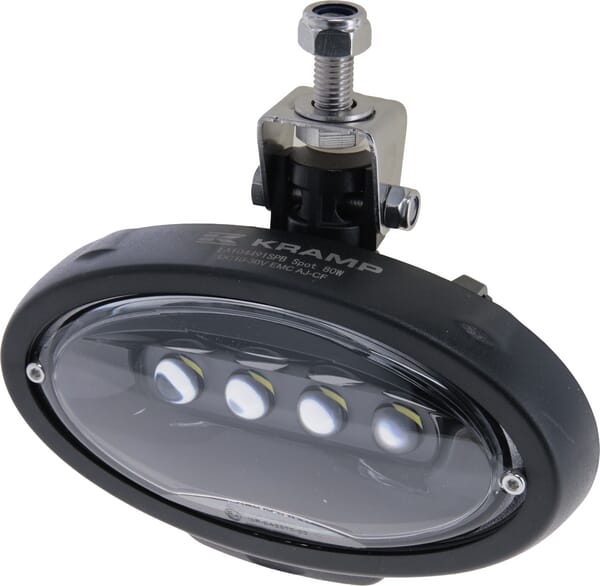

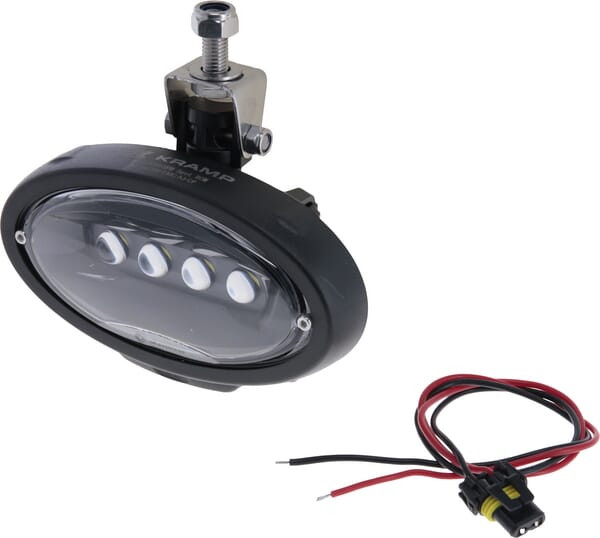

An 80W LED work light in oval configuration, producing 8840 lumens of 6000 K white light with a spot beam pattern. The unit operates across a 10–30V nominal voltage range (covering 12V and 24V systems) and is supplied as a single piece with a 9006 plug connector. The housing is constructed from aluminium in black finish and measures 190 mm wide by 108 mm high by 63 mm deep. The light contains four LEDs, supports multiple mounting positions (front, top, rear) via M8 flush-mount threads, and carries CE authorisation. Operating temperature range is −40 °C to +80 °C, with an insulation class of 69K and compliance with CISPR 25 Class 3 standard. The unit weighs 870 g and carries the EAN 8719493482096.
Product details
| Application | Universal, Truck, Tractor, Construction vehicle |
|---|---|
| Authorisation number | CE |
| CISPR standard | 25 Class 3 |
| Colour temperature | 6000 K |
| Content in sale unit | 1 pcs |
| Function | Work light |
| Height | 108 mm |
| Housing colour | Black |
| Housing material | Aluminium |
| Insulation class | 69K |
| Length (depth) | 63 mm |
| Light colour | White |

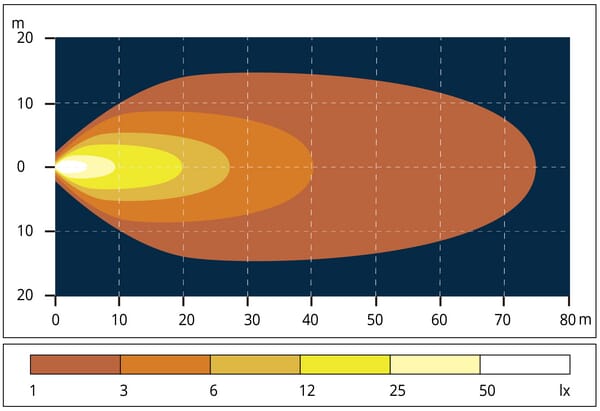

| Light type | Spot beam |
| Long description | This work lamp illuminates your workspace to help improve concentration. LED lighting allows powerful machinery to be operated with great accuracy in darkness - an investment that really pays. |
| Luminous flux | 8840 lm |
| Max working temperature | 80 °C |
| Min working temperature | -40 °C |
| Mounting holes diameter | 8 mm |

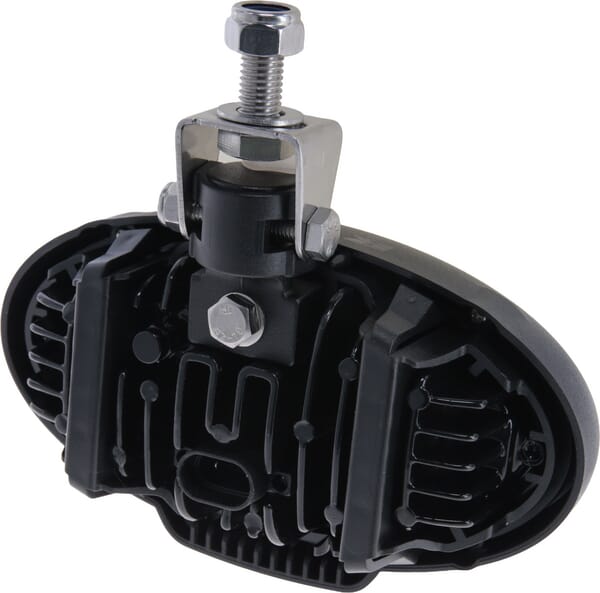

| Mounting position | Rear, Top, Front |
| Mounting thread diameter | M8 |
| Mounting type | Flush-mount |
| Nominal voltage | 12 V, 24 V |
| Nominal voltage range | 10-30 V |
| Number of LEDs | 4 |
| Original number equivalent | RE269636, RE269637, RE331642 |
| Plug type | 9006 |
| Power | 80 W |
| Product details | LED lamps are exposed to dirt, fertilisers, road salt, acids and more., For best performance and long life, the lens and cooling fins should be cleaned regularly, Meets latest LED technology, Minimum 30.000 hrs of lifetime, Retail friendly packaging, 1 year warranty |
| Pros | Extensive ground illumination for use in the field, Optimal ambient lighting |
| Series | BLACK |
| Shape | Oval |
| Suitable for machine/vehicle brand | John Deere |
| Suitable for machine/vehicle model | (Spot Version of LA104491 / LA104491B) |
| Suitable for machine/vehicle series | (Spot Version of LA104491 / LA104491B) |
| Technology | LED |
| Unit | Each |
| Weight | 0.79 kg |
| Width | 190 mm |
Logistics
| EAN | 8719493482096 |
|---|---|
| Unit of measure | EA |
| Weight | 870 g |
| Dimensions | 187 × 125 × 120 mm |
| Dangerous goods | No |
You might also like
BPA000329910
Kramp O-ring 47x5 70 shore 10x OR475P010
£11.52 excl.
£13.82 incl.
In stock
Expected to ship on Monday 21 September

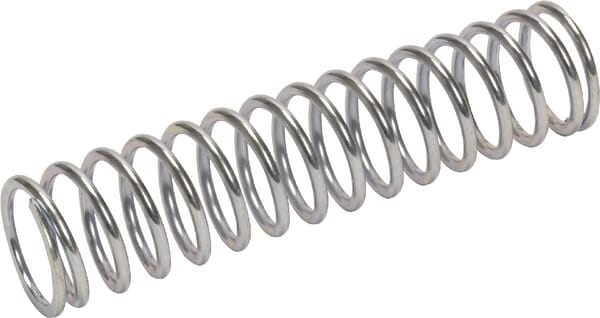

BPA000033961
Kramp Compression spring 1,5x14x17 1135300511
£1.47 excl.
£1.76 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000231231

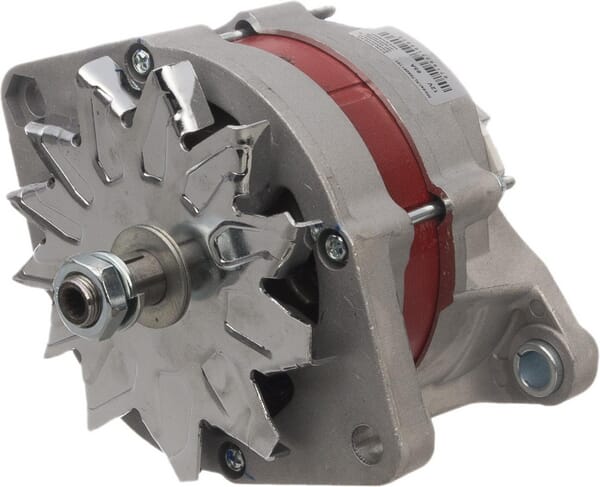

Kramp Alternator 14V 65A ALT26251101
£114.88 excl.
£137.86 incl.
In stock
Expected to ship on Monday 21 September
BPA000203601
Kramp Hexagon head bolt DIN933 M20x60 steel 8.8 9332060B
£1.87 excl.
£2.24 incl.
In stock
Expected to ship on Monday 21 September
BPA000195435
Kramp John Deere black matt 400ml 911504KR
£11.63 excl.
£13.96 incl.
In stock
Expected to ship on Monday 21 September
BPA000140522
Kramp Oil seal 55x68x8mm type:CC DIN 3760 10x 55688CCP010
£16.02 excl.
£19.22 incl.
In stock
Expected to ship on Monday 21 September
Recently viewed
BPA000077433

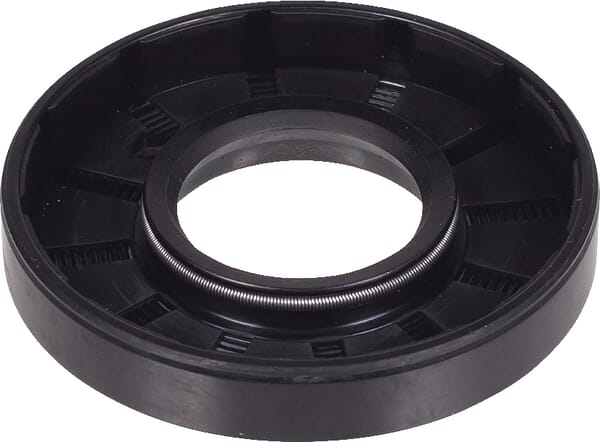

Kramp Oil seal 25x58x10mm type:CB DIN 3760 1x 255810CBP001
£2.16 excl.
£2.59 incl.
In stock
Expected to ship on Monday 21 September
BPA000169425

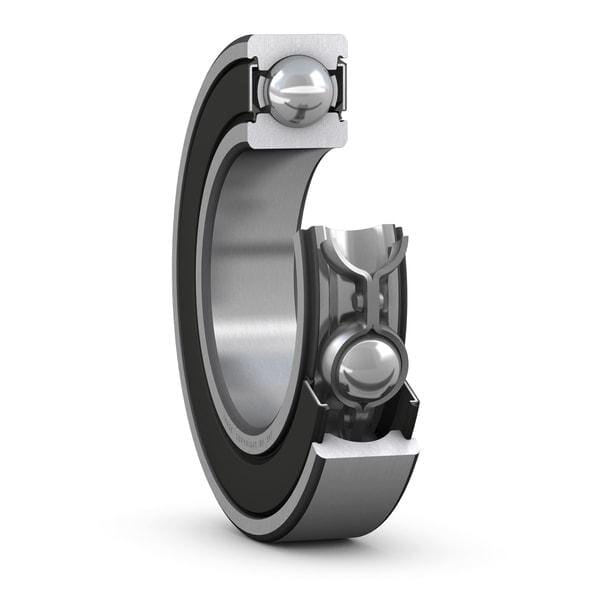

SKF Deep groove ball bearing 17x35x10mm 75006003ZZC3GJN
