Product details
| Application range | HW 4242.5350 is for HW80 |
|---|---|

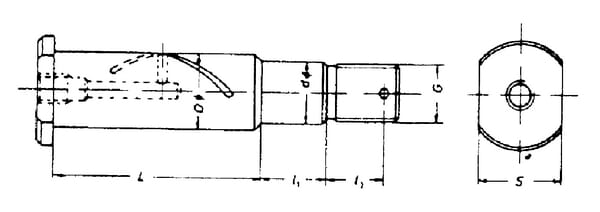

| D,dPin outside diameter | 30 mm, 26 mm |
| L1Length | 26.5 mm |
| L2Thread length | 26 mm |
| LPin total length | 131 mm |
| SHead diameter | 32 mm |
| Thread diameter | M24 |
| Thread pitch | 1.50 mm |
| Thread type | Metric |
| Unit | Each |
Logistics
| EAN | 8719607065108 |
|---|---|
| Unit of measure | EA |
| Weight | 1042 g |
| Dimensions | 228 × 54 × 44 mm |
| Dangerous goods | No |
