£193.76
excl. VAT
£232.51 incl. VAT
£232.51
incl. VAT
£193.76 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Beam angle | Extreme wide beam more than 80° |
|---|---|
| Beam angle adjustable | No |
| Built-in height (depth) | 68 mm |
| Colour consistency (McAdam ellipse) | SDCM5 |
| Colour of light adjustable | No |
| Colour rendering index CRI | 80-89 |
| Colour temperature | 4000 K |
| Connection type | Push-in clamp |
| Cover material | Opal, Plastic |
| Dimmable | No |
| Emergency power supply integrated | No |
| Exchangeable control gear | No |
| Filament test according to IEC 60695-2-11 | 850 °C - 30 s |
| Height | 68 mm |
| Housing colour | Grey |
| Housing material | Plastic |
| Impact strength class code | IK08 |
| Lamp type | LED not replaceable |
| Length (depth) | 1590 mm |
| Light colour | White |
| Light distributor type | Diffuser lens/optic/panel |
| Light outlet | Direct |
| Light sensor | No |
| Light sharing type | Symmetric |
| Long description | The damp-proof compact fittings are energy-saving and have even light distribution and high light output. The fittings have a streamlined enclosure and are easy to install. |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | Yes |
| Luminous flux adjustable | No |
| Manufacturer Product ID | 4058075210080 |
| Max. number of luminaires per miniature circuit breaker B16 (MCB) | 46 |
| Max. number of luminaires per miniature circuit breaker C16 (MCB) | 59 |
| Max. system power | 31 W |
| Movement sensor | No |
| Nominal current | 170-170 mA |
| Nominal voltage | 220-220 V |
| Number of bulbs | 31 |
| Number of poles | 3 |
| Operation by Bluetooth | No |
| Photobiological safety according to EN 62471 | RG0 |
| Power factor | 0.9 |
| Product details | The light fitting offer high light output - Can be used in car parks and underpasses, garages, workshops, on assembly lines and are perfect for industrial and storage facilities - Installation accessories such as hanging kit and theft-protection kit are included |
| Pros | The light fittings provide even light distribution - These lights can help save as much as 50% electricity when compared to fluorescent lights - Streamlined enclosure - The mounting brackets can be freely installed on the lights for easy installation - Push-button connection means that the fittings can be installed without the need for tools |
| Protection class code | II |
| Rated ambient temperature according to IEC 62722-2-1 | -35-50 °C |
| Rated life time L70/B50 at 25 °C | 50000 h |
| Rated luminous flux according to IEC 62722-2-1 | 3800 lm |
| Suitable for built-in mounting | No |
| Suitable for ceiling mounting | Yes |
| Suitable for clamp-mounting | No |
| Suitable for emergency lighting | No |
| Suitable for lamp power | 31-31 W |
| Suitable for light line configuration | No |
| Suitable for surface mounting | Yes |
| Suitable for suspended mounting | No |
| Suitable for workplace according to EN 12464-1 | No |
| Surface protection housing | None |
| Type of control gear | Electronic ballast |
| Type of grid | High-gloss |

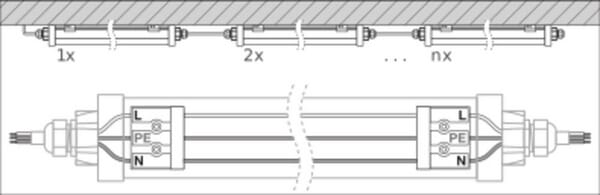

| Type of wiring | Suitable for through wiring |
| Unit | Each |
| Voltage type | AC |
| Wall mounting | Yes |
| Width | 86 mm |
| With control gear | Yes |
| With light source | Yes |
Logistics
| EAN | 4058075210080 |
|---|---|
| Unit of measure | EA |
| Weight | 1540 g |
| Dimensions | 70 × 1620 × 90 mm |
| Dangerous goods | No |
