£1,189.11
excl. VAT
£1,426.93 incl. VAT
£1,426.93
incl. VAT
£1,189.11 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Colour | Grey |
|---|---|
| Current | 21 A |

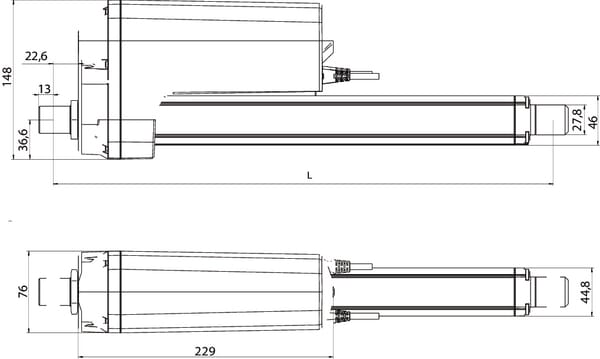

| Distance of mounting points | 1249 mm |
| Duty cycle | 20 % |
| Eye diameter | 12.2 mm |
| Insulation class | 66, 69 |
| Long description | The LA36 actuator is one of the most solid and powerful LINAK actuators, designed to operate under extreme conditions., The LA36 is a maintenance-free product with a long service life and a high IP degree. It is also available with an extra-long service life., This high-quality actuator offers a very strong alternative to hydraulic solutions. |
| Max. pull force | 2600 N |
| Max. push force | 2600 N |
| Non load speed | 40.7 mm/s |
| On load speed | 30.6 mm/s |
| Operating temperature | 5-40 °C |
| Product details | Built-in endstop switches, Mechanical overload protection through integrated slip clutch, Nonrotating piston rod eye, Hand crank for manual operation, Stroke length from 100 to 999mm, Thrust from 500 N - 6.800 N depending on gear ratio and spindle pitch, Max. speed up to 160mm/sec. depending on load and spindle pitch, Heavy duty aluminum housing for harsh conditions, Exchangeable cables in different lengths, Ambient operating temperature -30°C to +65°C |
| Pros | Maintenance-free and has a long service life, A very strong alternative to hydraulic solutions, High IP degree IP66 (dynamic) and IP69K (static), Extremely powerful |
| Stroke | 999 mm |
| Unit | Each |
| Voltage | 12 V |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 10776 g |
| Dimensions | 1310 × 210 × 100 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000375995
LINAK Positioning module with switch TREM167
£144.56 excl.
£173.47 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000239985

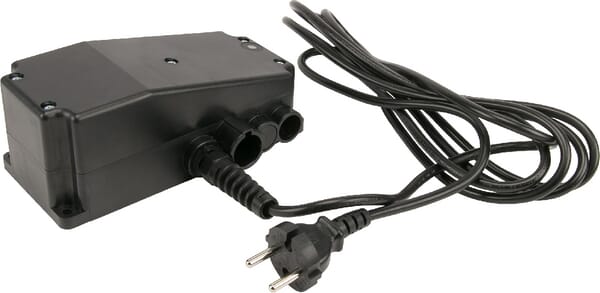

LINAK Control box CB8-T CB8001T200010
£214.75 excl.
£257.70 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000239986
LINAK Control box CB8-T CB8001T400010
£214.75 excl.
£257.70 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000308942

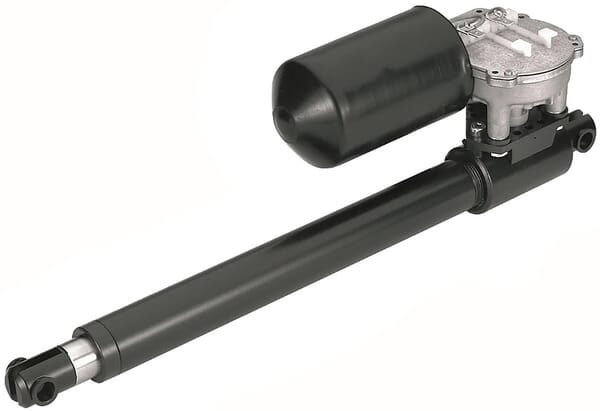

LINAK Actuator 12 V S=150 Brake IP51 LA3031004015050N
£661.47 excl.
£793.76 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000309408

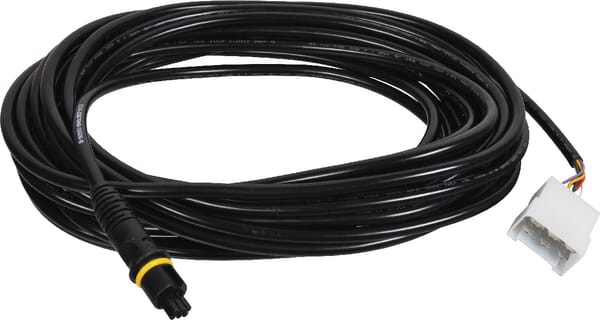

LINAK Cable with 6P microfit open end LA902370021500C
£14.56 excl.
£17.47 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000308885

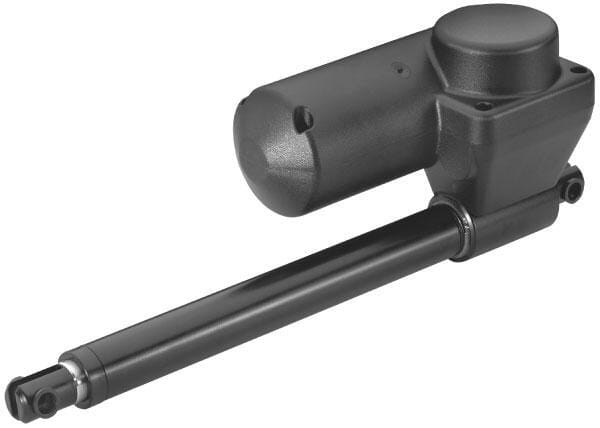

LINAK Actuator 24 V-L S=100 LA3011R000100420
