£586.43
excl. VAT
£703.72 incl. VAT
£703.72
incl. VAT
£586.43 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Colour | Black |
|---|---|
| Current | 14 A |
| Distance of mounting points | 406 mm |
| Duty cycle | 10 % |
| Eye diameter | 10.1 mm |
| Insulation class | 66 |
| Long description | The LA30 linear actuator is a powerful actuator that is small enough for most applications., In addition to its use in industrial automation and for agricultural machinery, the actuator is also ideal for the correct positioning of satellite dishes. |
| Max. pull force | 3500 N |
| Max. push force | 3500 N |
| Non load speed | 17 mm/s |
| On load speed | 9.5 mm/s |
| Operating temperature | 5-40 °C |
| Product details | Consists of a high-quality plastic housing, Acme threaded spindle for optimum efficiency, Stainless steel piston rod, Without limit switches |
| Pros | Easy installation, Low noise level |
| Stroke | 250 mm |
| Unit | Each |
| Voltage | 12 V |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 2540 g |
| Dimensions | 430 × 130 × 100 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000304622

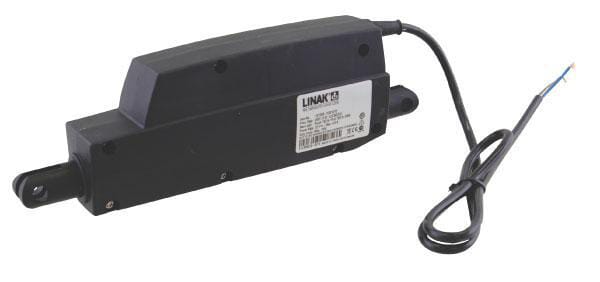

LINAK Actuator 12V S=100 LA1210012
£214.47 excl.
£257.36 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000308771

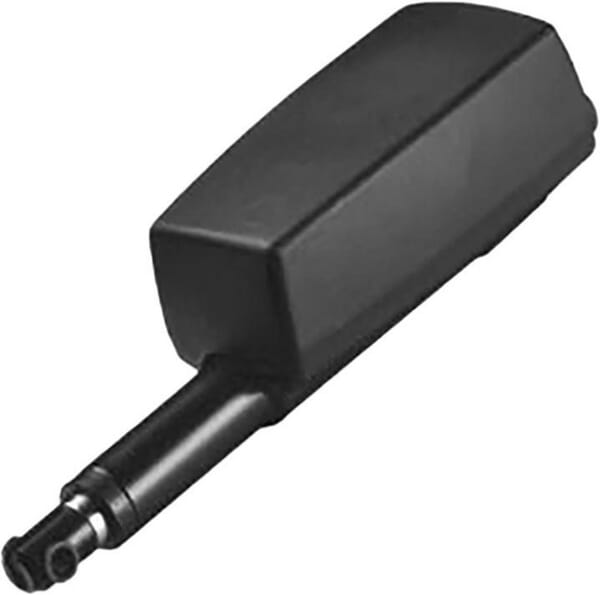

LINAK Actuator 24 V-S S=150 LA28110000150110
£396.88 excl.
£476.26 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000308848

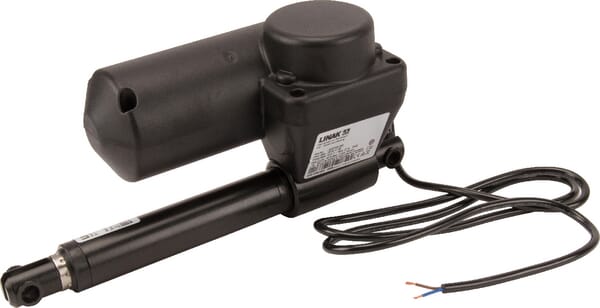

LINAK Actuator 12 V-S S=100 LA30110000100225
£591.59 excl.
£709.91 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000308982
LINAK Actuator 24V S=300 LA3630024
£1,220.25 excl.
£1,464.30 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000308862
LINAK Actuator 12 V-S S=300 LA30110000300225
£640.14 excl.
£768.17 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000308944

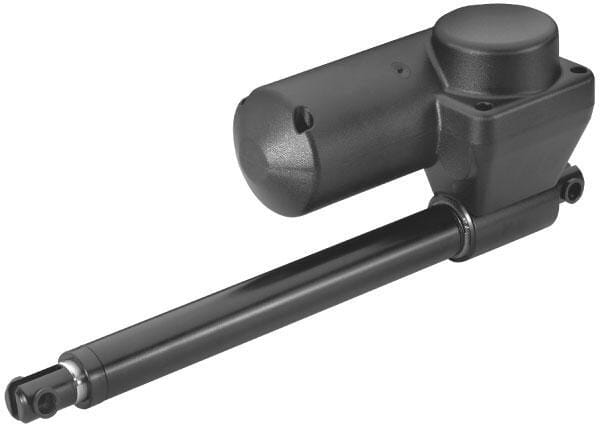

LINAK Actuator 12 V S=200 Brake LA30310040200525
