£7.60
excl. VAT
£9.12 incl. VAT
£9.12
incl. VAT
£7.60 excl. VAT
In stock
Expected to ship on Friday 18 September

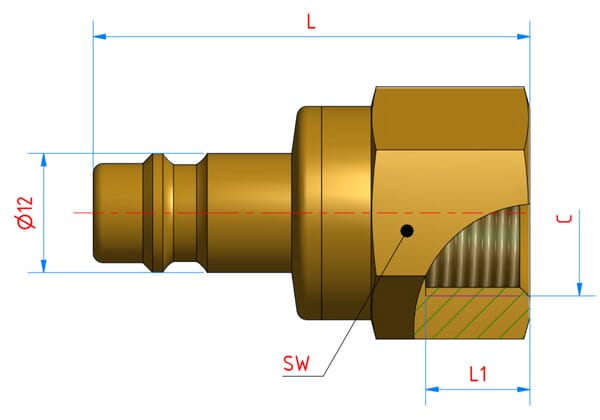

Product details
| Body size | 1/4 Inch |
|---|---|
| Connection 1, type | Quick coupling |
| Connection 1, type - male/female | Male |
| Connection 2, thread diameter | 1/4 Inch |
| Connection 2, thread type | BSPP |
| Connection 2, type | Thread |
| Connection 2, type - male/female | Female |
| Connection 2, wrench/spanner size | 22.0 mm |
| Connection no 1 diameter | 12 mm |
| Designed for medium | Air |
| ISO standard | 228 |
| L1Connection 2, thread length | 10.5 mm |
| LTotal length | 44 mm |
| Material | Brass |
| Max working pressure | 35 BAR |
| Max working temperature | 100 °C |
| Min. working temperature | -20 °C |
| Shape | Straight |
| Unit | Each |
| Weight | 64 g |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 68 g |
| Dimensions | 45 × 27 × 27 mm |
| Dangerous goods | No |
