£4.07
excl. VAT
£4.88 incl. VAT
£4.88
incl. VAT
£4.07 excl. VAT
In stock
Expected to ship on Friday 18 September
Product details

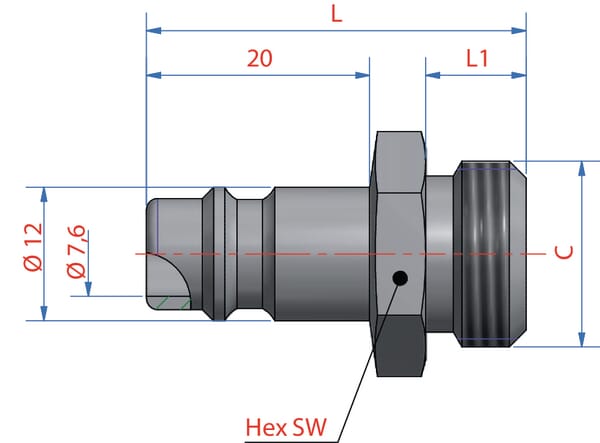

| Connection 1, type | Quick coupling |
|---|---|
| Connection 1, type - male/female | Male |
| Connection 2, length | 15 mm |
| Connection 2, thread diameter | 1/2 Inch |
| Connection 2, thread type | BSP |
| Connection 2, type | Thread |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 22.0 mm |
| Connection no 1 diameter | 7.8 mm |
| Designed for medium | Air |
| Interchangeable with | Cejn 320, Rectus 26, JWL 520/530, Prevost ESC/ESG, Festo |
| ISO standard | 228 |
| Material | Steel |
| Max working pressure | 35 BAR |
| Max working temperature | 100 °C |
| Min. working temperature | -20 °C |
| Shape | Straight |
| Surface treatment | Nickel-plated, Hardened |
| Total length | 40 mm |
| Unit | Each |
| Weight | 47 g |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 40 g |
| Dimensions | 40 × 30 × 30 mm |
| Dangerous goods | No |
You might also like
BPA000262958

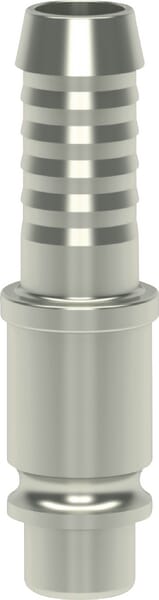

Lüdecke Male connector with 10mm hosetail ESAC10SS
£4.22 excl.
£5.06 incl.
In stock
Expected to ship on Friday 18 September
BPA000363600
Lüdecke MODY hose coupling SSG19
£23.56 excl.
£28.27 incl.
In stock
Expected to ship on Friday 18 September
BPA000262739
Lüdecke Male con with 1/2" BSP M/Thd ES12NA
£3.03 excl.
£3.64 incl.
In stock
Expected to ship on Friday 18 September
BPA000263174

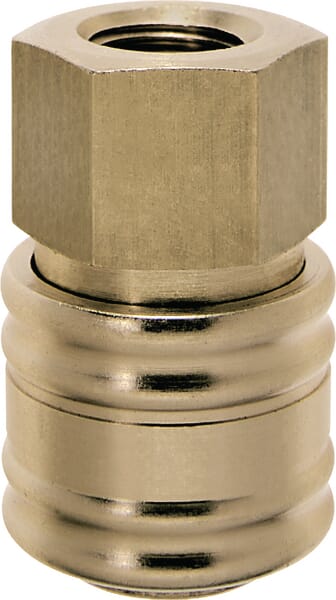

Lüdecke Q-Rel coup with 1/2" BSP F/Thd ESO12I
£7.86 excl.
£9.43 incl.
In stock
Expected to ship on Friday 18 September
BPA000298879
Lüdecke Claw inner thread coupling KIG38
£9.88 excl.
£11.86 incl.
In stock
Expected to ship on Friday 18 September
BPA000263183

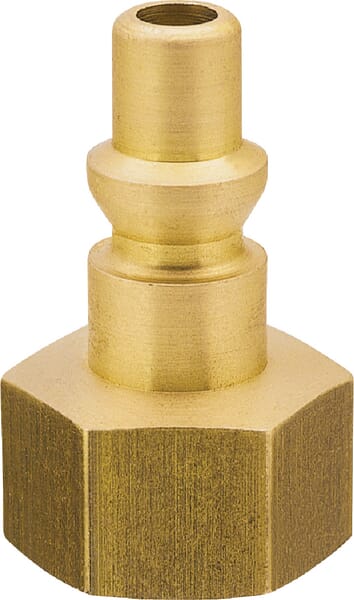

Lüdecke Hydr. plug int. thd. BSP 3/8" ESO38NI
