£14.52
excl. VAT
£17.42 incl. VAT
£17.42
incl. VAT
£14.52 excl. VAT
In stock
Expected to ship on Friday 18 September
Product details
| Connectable under pressure | Yes |
|---|---|
| Connection 1, type | Quick coupling |
| Connection 1, type - male/female | Female |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 22.0 mm |
| Designed for medium | Air |
| Interchangeable with | Cejn 320, Rectus 26, JWL 520/530, Prevost ESC/ESG, Festo |
| ISO standard | 228 |
| LTotal length | 130 mm |
| Material | Brass |
| Max working pressure | 35 BAR |
| Max working temperature | 100 °C |
| Min. working temperature | -20 °C |
| Seal material | Nitrile rubber [NBR] |
| Shape | Straight |
| SW2Connection 2, hex size | 14 mm |
| Unit | Each |
| Weight | 90 g |
Compatible accessories
Parts and components that work with this product.
ES10S
Lüdecke Male connector with 10mm hosetail ES10S
£1.26 excl.
£1.51 incl.
ES12NA
Lüdecke Male con with 1/2" BSP M/Thd ES12NA
£3.03 excl.
£3.64 incl.
ES12NI
Lüdecke Male con with 1/2" BSP F/Thd ES12NI
£3.62 excl.
£4.34 incl.
ES13S
Lüdecke Male connector with 13mm hosetail ES13S
£1.88 excl.
£2.26 incl.
ES1415NA
Lüdecke Male connector with M14x1.5mm male thread ES1415NA
£2.51 excl.
£3.01 incl.
ES1415NI
Lüdecke Male connector with M14x1.5mm female thread ES1415NI
£2.50 excl.
£3.00 incl.
ES14NA
Lüdecke Male con with 1/4" BSP M/Thd ES14NA
£1.70 excl.
£2.04 incl.
ES14NI
Lüdecke Male con with 1/4" BSP F/Thd ES14NI
£1.80 excl.
£2.16 incl.
ES1615NA
Lüdecke Male connector with M16x1.5mm male thread ES1615NA
£2.92 excl.
£3.50 incl.
ES1615NI
Lüdecke Male connector with M16x1.5mm female thread ES1615NI
£2.96 excl.
£3.55 incl.
ES1815NA
Lüdecke Male connector with M18x1.5mm male thread ES1815NA
£3.50 excl.
£4.20 incl.
ES1815NI
Lüdecke Male connector with M18x1.5mm female thread ES1815NI
£3.53 excl.
£4.24 incl.
ES18NA
Lüdecke Male con with 1/8" BSP M/Thd ES18NA
£1.47 excl.
£1.76 incl.
ES18NI

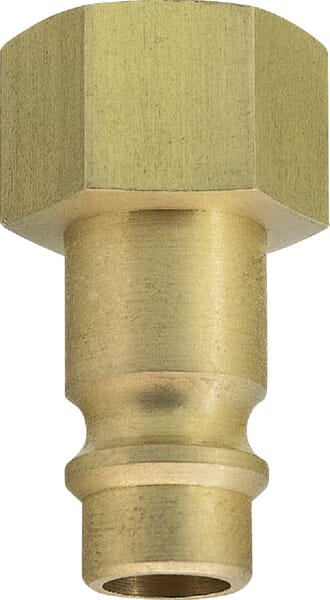

Lüdecke Male con with 1/8" BSP F/Thd ES18NI
£1.82 excl.
£2.18 incl.
ES38NA
Lüdecke Male con with 3/8" BSP M/Thd ES38NA
£2.14 excl.
£2.57 incl.
ES38NI
Lüdecke Male con with 3/8" BSP F/Thd ES38NI
£1.99 excl.
£2.39 incl.
ES4S
Lüdecke Male connector with 4mm hosetail ES4S
£1.87 excl.
£2.24 incl.
ES6S
Lüdecke Male connector with 6mm hosetail ES6S
£1.17 excl.
£1.40 incl.
ES8S
Lüdecke Male connector with 8mm hosetail ES8S
£1.37 excl.
£1.64 incl.
ES9S
Lüdecke Male connector with 9mm hosetail ES9S
£1.34 excl.
£1.61 incl.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 98 g |
| Dimensions | 135 × 26 × 26 mm |
| Dangerous goods | No |
You might also like
BPA000262799
Lüdecke Q-Rel coup with 3/8" BSP F/Thd ES38I
£6.57 excl.
£7.88 incl.
In stock
Expected to ship on Friday 18 September
BPA000343394

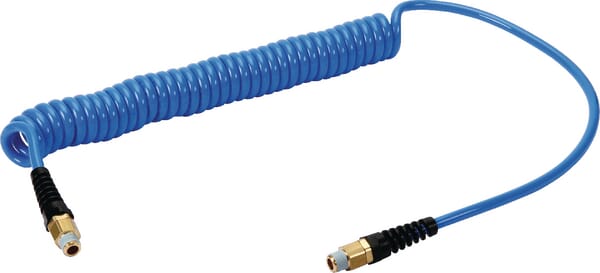

Lüdecke Spiral hose 8x5 6 m 1/4" PUB586DVK
£93.32 excl.
£111.98 incl.
In stock
Expected to ship on Monday 21 September
BPA000263200

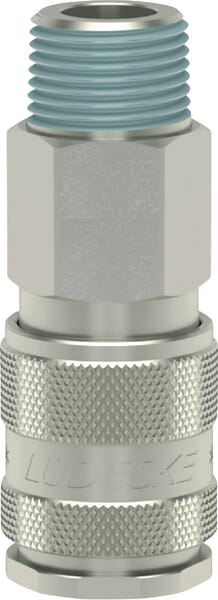

Lüdecke Q-Rel coup with 3/8" BSP M/Thd ESOI38A
£18.35 excl.
£22.02 incl.
In stock
Expected to ship on Friday 18 September
BPA000263149
Lüdecke Male con with 3/8" BSP F/Thd ESM38NI
£2.32 excl.
£2.78 incl.
In stock
Expected to ship on Friday 18 September
BPA000263013

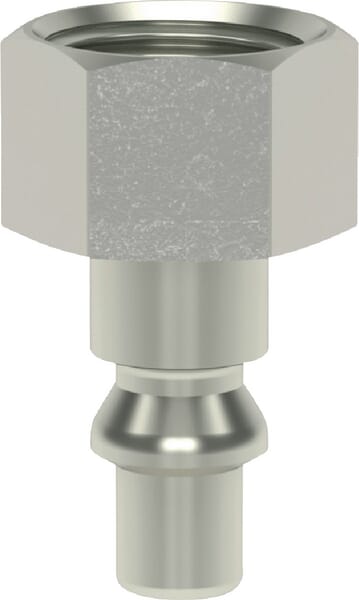

Lüdecke Male con with 1/8" BSP F/Thd ESAI18NIS
