£13.21
excl. VAT
£15.85 incl. VAT
£15.85
incl. VAT
£13.21 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.

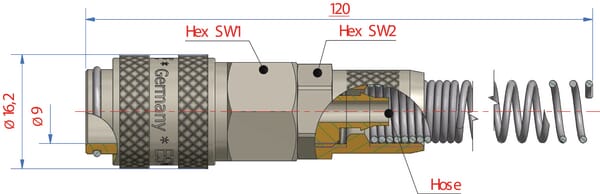

Product details
| Connectable under pressure | Yes |
|---|---|
| Connection 1, type | Quick coupling |
| Connection 1, type - male/female | Male |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 11.0 mm |
| Long description | Mini one-hand quick connect couplings, suitable for low vacuum. |
| Material | Brass |
| Max working temperature | 100 °C |
| Min. working temperature | -20 °C |
| Product details | Body, sleeve: Brass MS58, Springs, retaining ring: Stainless steel 1.4310, Balls: Stainless Steel 1.3541, Seals: NBR |
| Shape | Straight |
| SW1Connection no 1 wrench size | 14.0 mm |
| Total length | 120 mm |
| Unit | Each |
| Weight | 39 g |
Compatible accessories
Parts and components that work with this product.
ESM14NA
Lüdecke Male con with 1/4" BSP M/Thd ESM14NA
£1.79 excl.
£2.15 incl.
ESM14NI
Lüdecke Male con with 1/4" BSP F/Thd ESM14NI
£2.12 excl.
£2.54 incl.
ESM18NA
Lüdecke Male con with 1/8" BSP M/Thd ESM18NA
£1.55 excl.
£1.86 incl.
ESM18NI
Lüdecke Male con with 1/8" BSP F/Thd ESM18NI
£1.79 excl.
£2.15 incl.
ESM38NA
Lüdecke Male con with 3/8" BSP M/Thd ESM38NA
£2.09 excl.
£2.51 incl.
ESM38NI
Lüdecke Male con with 3/8" BSP F/Thd ESM38NI
£2.32 excl.
£2.78 incl.
ESM4S
Lüdecke Male connector with 4mm hosetail ESM4S
£1.79 excl.
£2.15 incl.
ESM4SQ
Lüdecke Male connector with 4x6mm hosetail ESM4SQ
£4.79 excl.
£5.75 incl.
ESM4SQF
Lüdecke Male connector / spring guard 4x6mm ESM4SQF
£5.42 excl.
£6.50 incl.
ESM6S
Lüdecke Male connector with 6mm hosetail ESM6S
£1.79 excl.
£2.15 incl.
ESM6SQ
Lüdecke Male connector with 6x8mm hosetail ESM6SQ
£5.18 excl.
£6.22 incl.
ESM6SQF
Lüdecke Male connector / spring guard 6x8mm ESM6SQF
£5.84 excl.
£7.01 incl.
ESM8S
Lüdecke Male connector with 8mm hosetail ESM8S
£1.79 excl.
£2.15 incl.
ESM9S
Lüdecke Male connector with 9mm hosetail ESM9S
£1.90 excl.
£2.28 incl.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 42 g |
| Dimensions | 120 × 15 × 5 mm |
| Dangerous goods | No |
