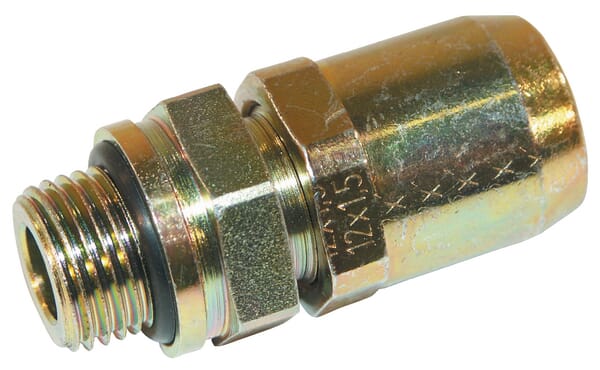

Product details
| Application range | WIRA push-in couplings are used for installation of plastic tubes in air brake systems and associated equipment on commercial vehicles, For plastic tubes to DIN 73378, DIN74324, SAE J 844 and J 1394 |
|---|---|
| Benefits | No tools are necessary for assembling the plastic tubes, Instead you just push the tube into the coupling - ready, The connections will seal immediately and permanently |
| Connection 1, thread diameter | M22 |
| Connection 1, thread pitch | 1.50 mm |
| Details | Developed from the most common connections |
| DPipe diameter | 15 mm |
| Shape | Straight |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 140 g |
| Dimensions | 50 × 29 × 27 mm |
| Dangerous goods | No |
