Product details
| Bore diameter | 12 mm |
|---|---|
| Damping type | n/a |

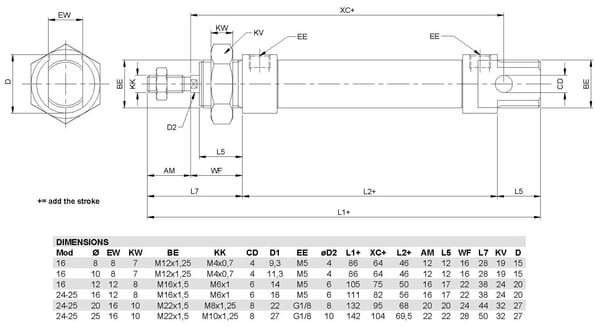

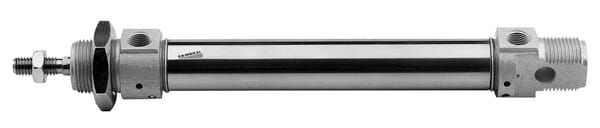

| Long description | The Camozzi Series 16 pneumatic cylinders are robust, double-acting cylinders designed for reliable linear motion in industrial automation applications. This series combines a compact design with durable materials, making it suitable for both standard and demanding operating environments. Series 16 cylinders comply with ISO 6432 standards, ensuring full interchangeability and easy integration into existing pneumatic systems. |
| Magnetic | No |
| Outside diameter | 12 mm |
| Product details | Camozzi, series 16, Double-acting operation for precise and controlled movement, Non magnetic piston, ISO 6432 compliant, standardized mounting dimensions, Compact design, ideal for installations with limited space, Aluminium barrel with anodized finish for corrosion resistance, Stainless steel piston rod for durability and long service life, Low friction seals for smooth operation and reduced air consumption, Filtered air in class [7:8:4] according to ISO 8573-1, Seals : NBR/PU, Maximum speed 1 m/sec (unloaded), Operating pressure : up to 10 bar, Operating temperature : 0°C to +80°C (with dry air -20°C)1 |
| Rod diameter | 6 mm |
| Series | 16 |
| Stroke | 80 mm |
| Type | Double acting |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | — |
| Dimensions | — |
| Dangerous goods | No |
