£28.67
excl. VAT
£34.40 incl. VAT
£34.40
incl. VAT
£28.67 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details

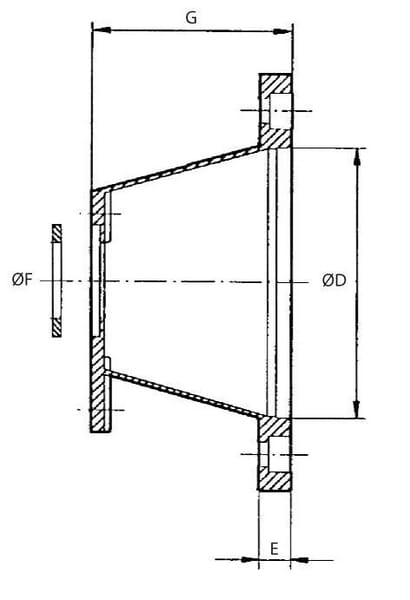

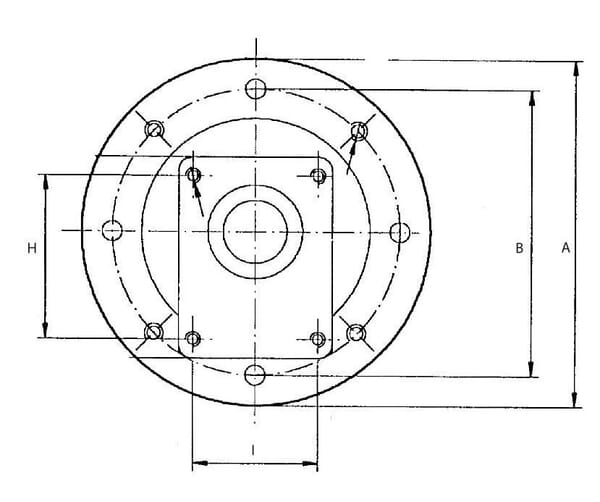

| AOutside diameter | 200 mm |
|---|---|
| BDiameter bolt circle | 165 mm |

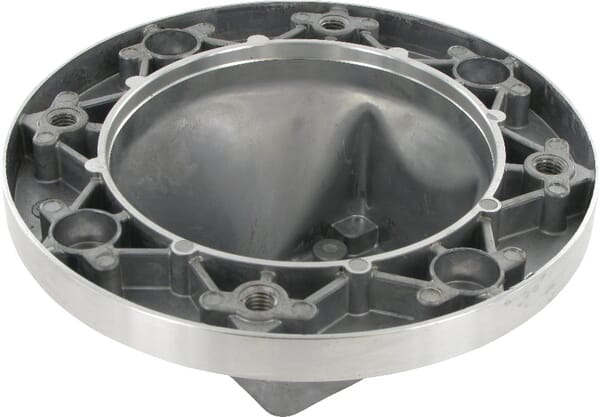

| Designed for | The standard lantern rings are made of die-cast aluminium. The lantern rings are applicable for the pumps of the SATURN range and are suitable for powers between 0.25 and 22 kW. For motors with a B5 flange. |
| Diameter of mounting hole | 137 mm |
| DInside diameter | 130 mm |
| Extra info | The 4S type is designed without centre washer. The pump and motor combination is often mounted to the tank vertically, meaning that the pump is immersed in the reservoir. |
| Flange | B5 |
| Flange width | 18 mm |
| HDistance mounting holes center to center long side | 66.00 mm |
| Long description | Pump carriers are required to couple pumps to standard IEC electric motors. Alignment issues are thus avoided. |
| Master model code | LMG200MFS05M4S |
| Material | Die-cast aluminium |
| Power max. | 0.75 kW |
| Product details | Standard pump holders for gear pumps group 1,2,3, type L, For gear pumps with rectangular flange and tapered shaft (European standard), Assortment : 0.22 to 22kW, Cast aluminium, Type 4E (see Master model Code) is equipped with centering ring. The pump and motor combination is often mounted horizontally on top of the tank for convenient maintenance. Disassembling the pump is generally possible without removing the motor, the coupling half that is mounted on the pump fits through the hole of the bell housing., type 4S (see Master model Code) is equipped without a centering ring. The pump and motor combination is often mounted to the tank vertically, meaning that the pump is immersed in the reservoir, In combination with elastic couplings type GE, Temperature range : -30 °C to +80 °C |
| Pros | No alignment of pump and motor required |
| Pump group | Gr 0.5 |
| Total width | 87 mm |
| Type | 4S |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 633 g |
| Dimensions | 198 × 197 × 86 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000318861
MP Filtri Electr/visual differential indicator 7 bar FHM/FHB/FMP/FMM MP9E8
£155.36 excl.
£186.43 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000252774
MP Filtri Filter element DK310A010ANCP01
£285.26 excl.
£342.31 incl.
Backorder available
Usually ships within 3–8 weeks

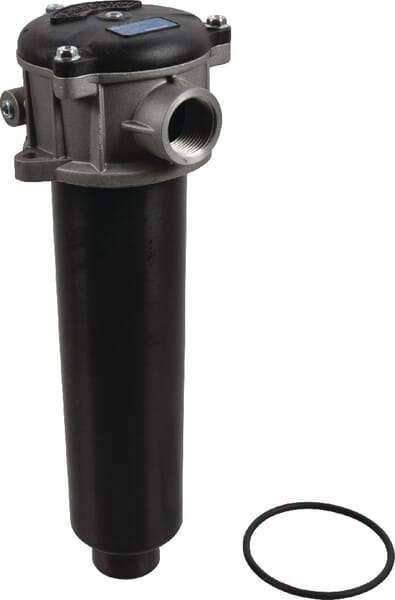

BPA000318937
MP Filtri Filter Housing 1 MPF91004
£58.30 excl.
£69.96 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000192747
MP Filtri Filter element 8IN090A010ANBP01
£72.43 excl.
£86.92 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping

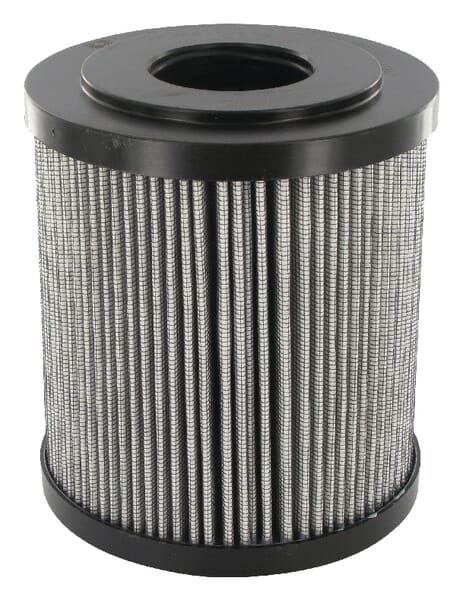

BPA000321491
MP Filtri Filter element 3 µm MF4002A03HB
£174.41 excl.
£209.29 incl.
Backorder available
Usually ships within 3–8 weeks

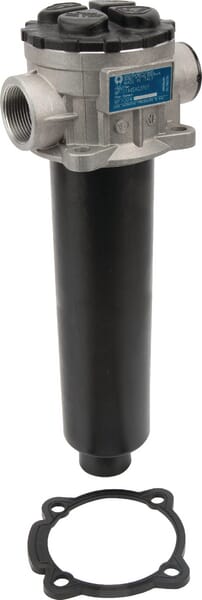

BPA000319234
