£48.83
excl. VAT
£58.60 incl. VAT
£58.60
incl. VAT
£48.83 excl. VAT
In stock
Expected to ship on Wednesday 23 September
Product details
| Bypass opening pressure | 1.75 BAR |
|---|---|
| Colour | White |
| Indicator port thread diameter | 1/8 Inch |
| Indicator port type | Thread |
| Inlet port thread diameter | 1-1/4 Inch |

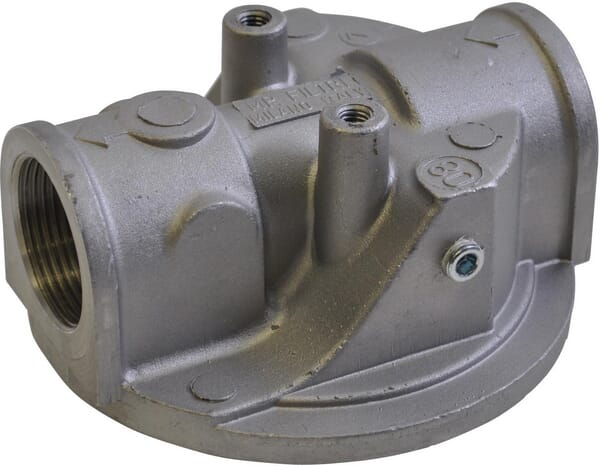

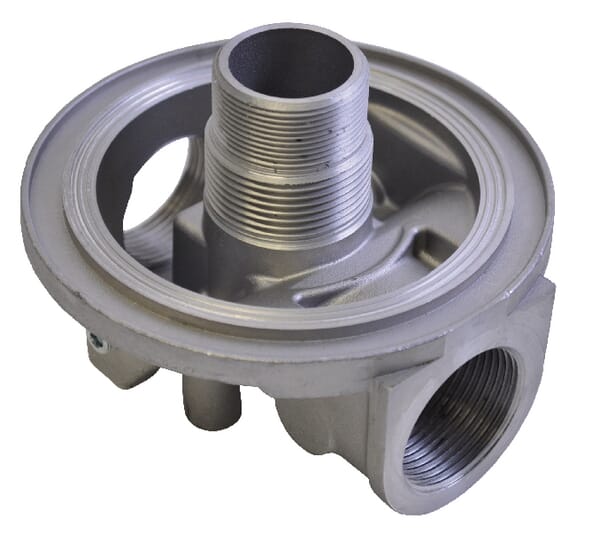

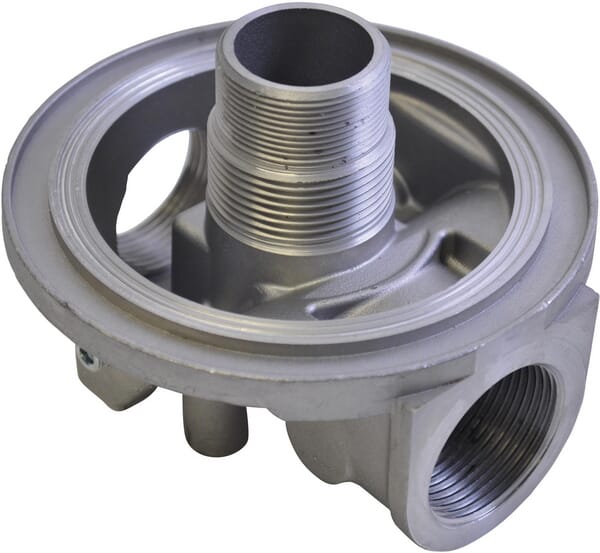

| Long description | The MPS spin-on filters are used as safety and work filters and, according to international guidelines (ISO 4406), are designed to protect a single pump, a valve or the entire hydraulic circuit from impurities in the fluids used. The aluminium filter head is mounted inline and can be fitted with a dirt indicator. In combination with filters type CS. |
| Max working pressure | 12 BAR |

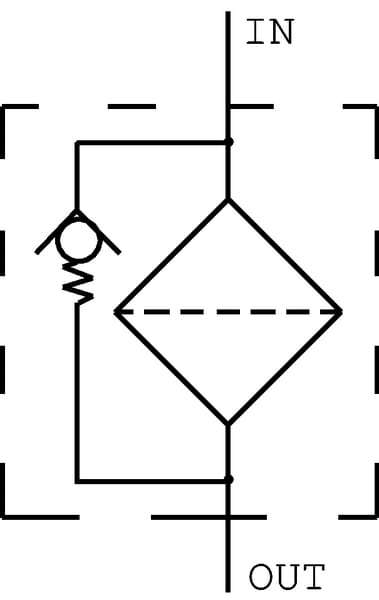

| Product details | SG1 = Suction filterhead with bypass 0.3 bar, RG1 = Return filterhead with bypass valve 1.75 bar, OG1 = Without bypass valve, Maximum pressure filter head : 12 bar, Mounting: Pipe mounting, filter in vertical position, In combination with filter elements type CS, Medium: Suitable for mineral oil, Filtering: From the outside in, Flow rate depends on build size and filter choice., Filter elements available in fibreglass (A), paper (P) or metal (M), Filter elements available as M25 / M60 / P10 / P25 / A03 / A06 / A10 / A16 / A25 (in µm) |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 719 g |
| Dimensions | 130 × 130 × 105 mm |
| Dangerous goods | No |
You might also like
BPA000253744

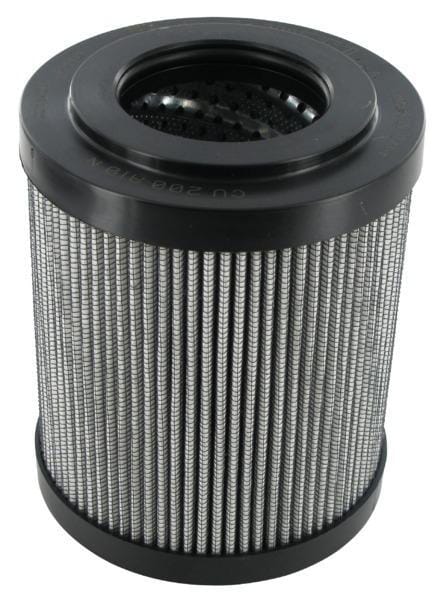

MP Filtri Filter element 90 µm CU200M90N
£42.89 excl.
£51.47 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000310460
MP Filtri Engine Flange LFR300
£59.82 excl.
£71.78 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000321492

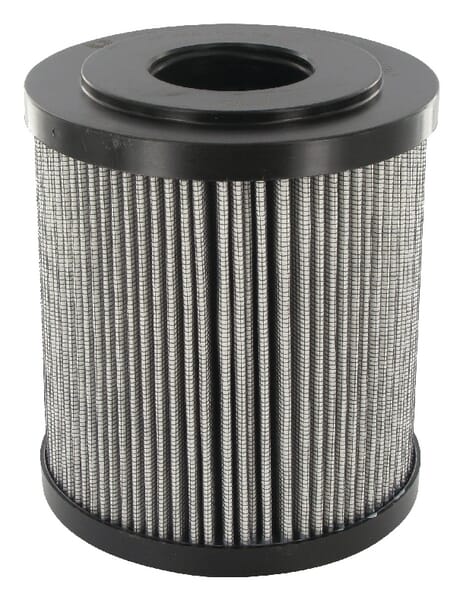

MP Filtri Filter element 6 µm MF4002A06HB
£184.63 excl.
£221.56 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000279000
MP Filtri Pressure filter 3/4" 10 µm FMM0504BADA10NP01
£205.46 excl.
£246.55 incl.
In stock
Expected to ship on Friday 18 September
BPA000287729

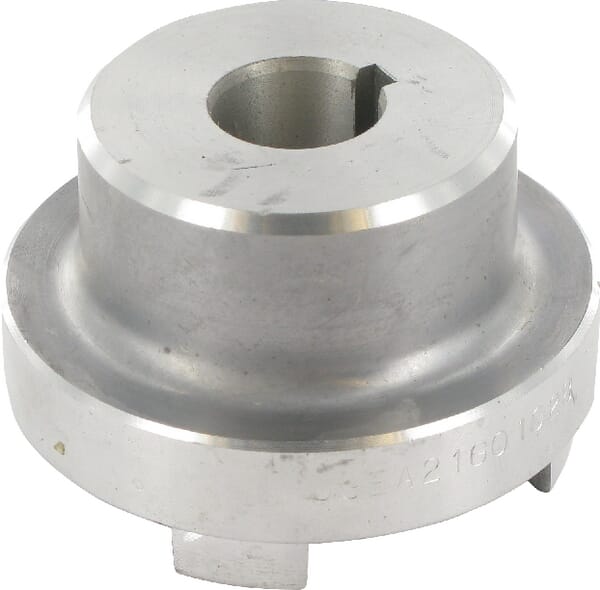

MP Filtri Pump half GEP005M
£4.71 excl.
£5.65 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000280564

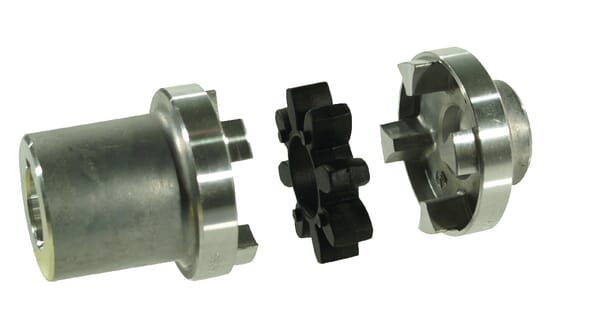

MP Filtri Coupling ø38: 3 GE383
