£36.73
excl. VAT
£44.08 incl. VAT
£44.08
incl. VAT
£36.73 excl. VAT
In stock
Expected to ship on Monday 21 September
Product details
| Bypass opening pressure | 0.3 BAR |
|---|---|
| Colour | Black |
| Indicator port thread diameter | 1/8 Inch |
| Indicator port type | Thread |
| Inlet port thread diameter | 1-1/4 Inch |

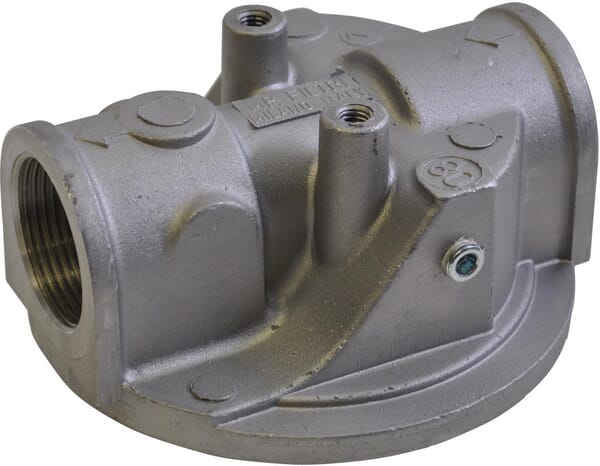

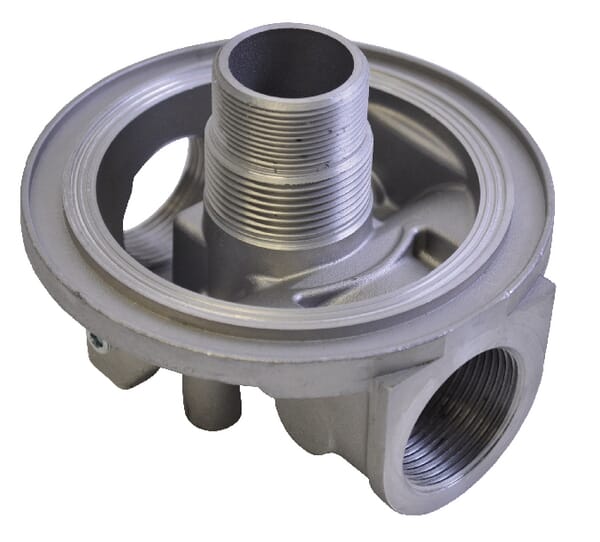

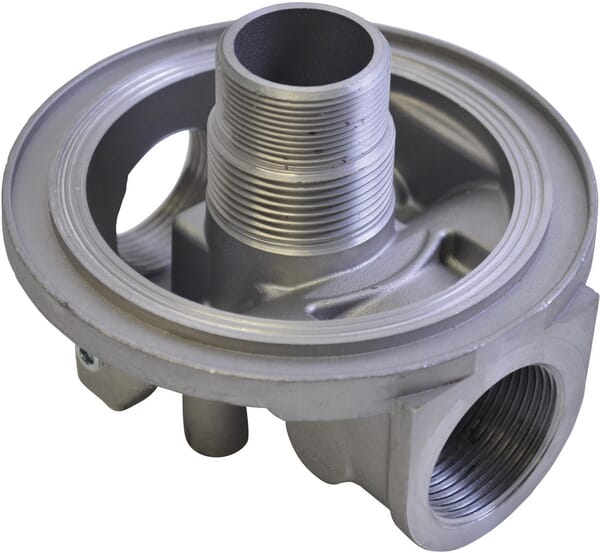

| Long description | The MPS spin-on filters are used as safety and work filters and, according to international guidelines (ISO 4406), are designed to protect a single pump, a valve or the entire hydraulic circuit from impurities in the fluids used. The aluminium filter head is mounted inline and can be fitted with a dirt indicator. In combination with filters type CS. |
| Max working pressure | 1 BAR |

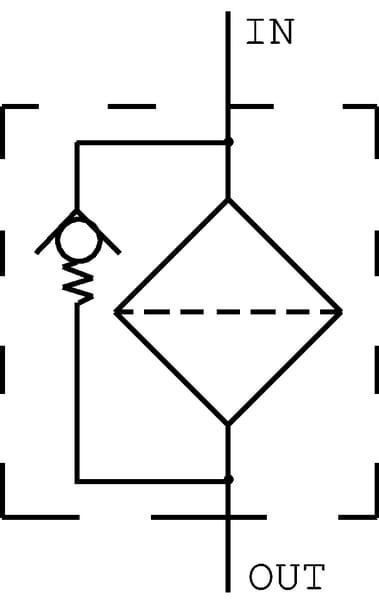

| Product details | SG1 = Suction filterhead with bypass 0.3 bar, RG1 = Return filterhead with bypass valve 1.75 bar, OG1 = Without bypass valve, Maximum pressure filter head : 12 bar, Mounting: Pipe mounting, filter in vertical position, In combination with filter elements type CS, Medium: Suitable for mineral oil, Filtering: From the outside in, Flow rate depends on build size and filter choice., Filter elements available in fibreglass (A), paper (P) or metal (M), Filter elements available as M25 / M60 / P10 / P25 / A03 / A06 / A10 / A16 / A25 (in µm) |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 725 g |

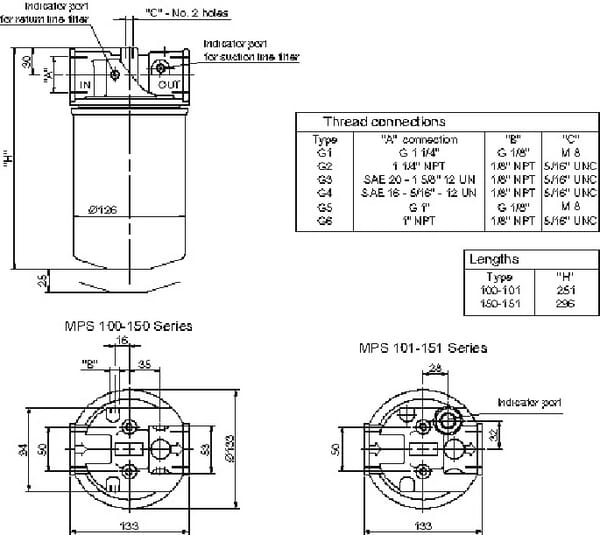

| Dimensions | 134 × 133 × 100 mm |
| Dangerous goods | No |
You might also like
BPA000318901

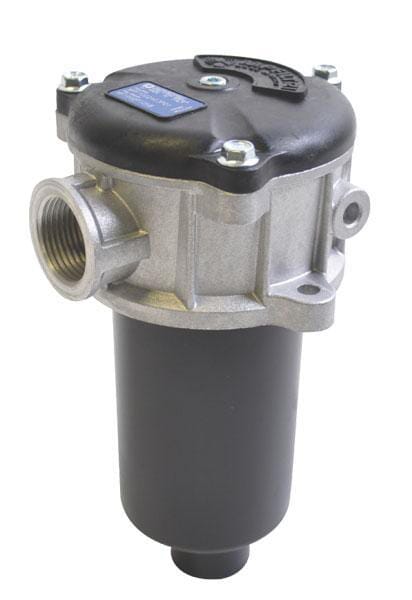

MP Filtri Return MPF100/1-12-M60-T 3/4" MPF1001M60
£65.41 excl.
£78.49 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000253576
MP Filtri Filter element DP099M060ANP01
£184.50 excl.
£221.40 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000248023

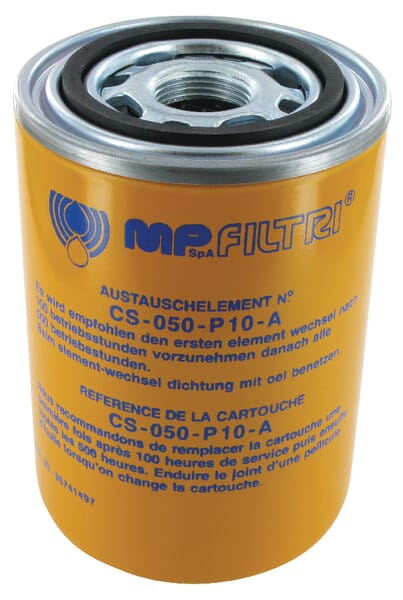

MP Filtri Filter element 10 µm CS050P10
£15.85 excl.
£19.02 incl.
In stock
Expected to ship on Monday 21 September
BPA000287752

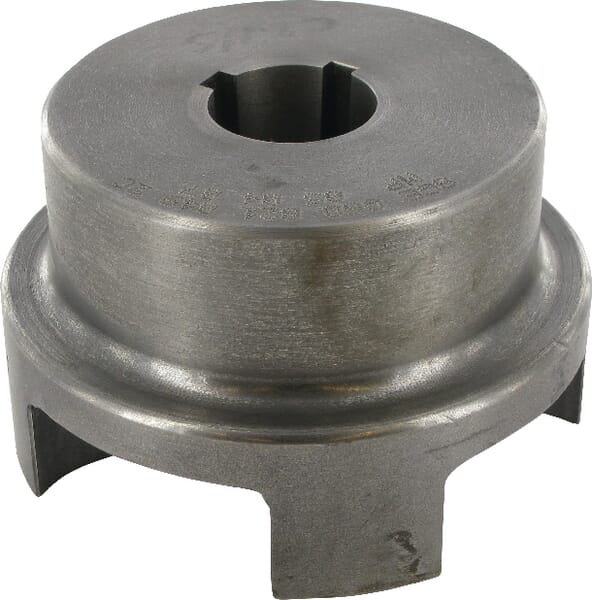

MP Filtri Pump half GEP685
£89.62 excl.
£107.54 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000319250

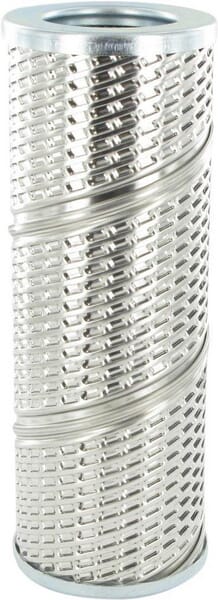

MP Filtri Filter element 90 µm MR1003M90A
£36.26 excl.
£43.51 incl.
Backorder available
Usually ships within 3–8 weeks

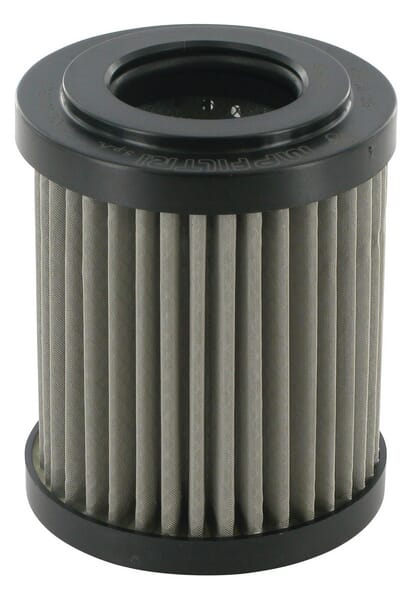

BPA000253686
