£287.16
excl. VAT
£344.59 incl. VAT
£344.59
incl. VAT
£287.16 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September
Product details

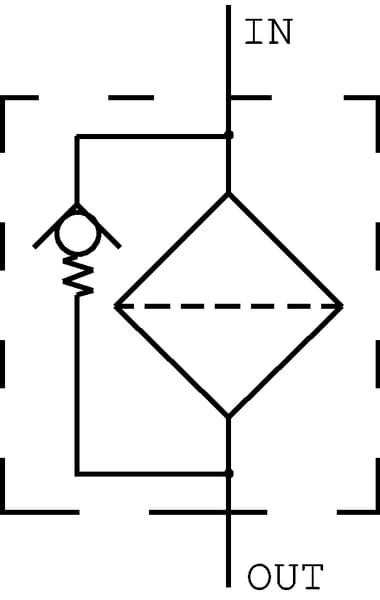

| Bypass | Yes |
|---|---|
| Filter finess | 10 µm |
| Filtration level | Absolute |
| Filtration material | Glass fibre |

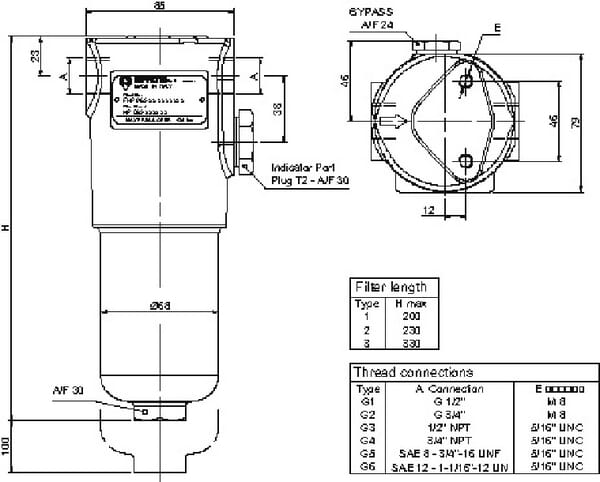

| Height | 196 mm |
| Housing material | Steel |
| Includes | Filter comes standard without indicator plug |
| Inlet port thread diameter | 1/2 Inch |
| Length | 192 mm |

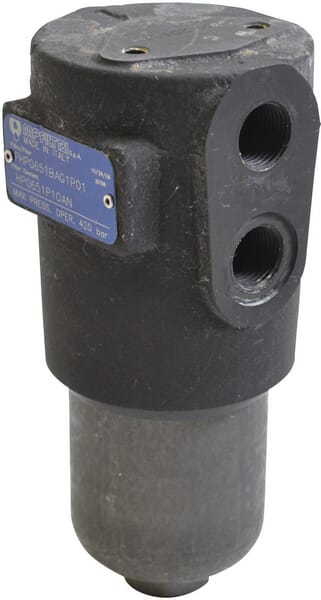

| Long description | The FHP series consists of versatile high-pressure filters that protect sensitive components in hydraulic high-pressure systems up to 420 bar. |

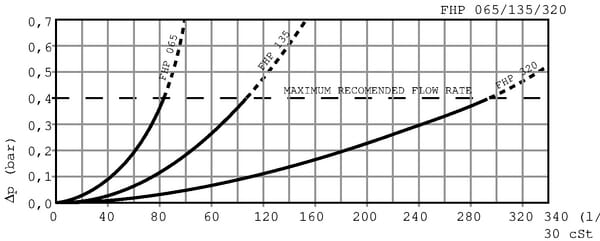

| Max flow rate | 50 l/min |
| Max working pressure | 420 BAR |
| Max working temperature | 110 °C |
| Medium | Hydraulic oil |
| Min flow rate | 45 l/min |
| Min working temperature | -25 °C |
| Original number equivalent | FHP065-1-B-A-G1-A10-N-P01 |
| Outlet port thread diameter | 1/2 Inch |
| Outside diameter | 85 mm |
| Pressure collapse | 20 BAR |
| Product details | Suitable for mineral oil, Maximum pressure difference across element 20 bar (N series) or 210 bar (S series), Filtering from the outside in, Maximum operating pressure 420 bar, Burst pressure 1260 bar, Temperature -25°C to +110°C, Bypass opening pressure: 6 bar +-10%, Flow rate depends on build size and filter choice, Filter elements available in Fibreglass (A) or Metal (M), Filter elements available as A03 / A06 / A10 / A16 /A25 / M25 (in µm) |
| Pros | Can be placed in any position through pipe installation |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 4000 g |
| Dimensions | 255 × 145 × 145 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000319343

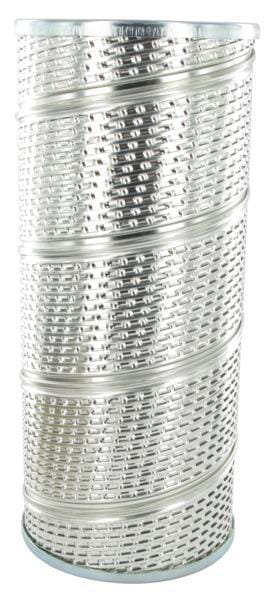

MP Filtri Filter element 6 µm MR6304A06A
£202.98 excl.
£243.58 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000248055
MP Filtri Filter element 3 µm CS150A03
£230.56 excl.
£276.67 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000289024
MP Filtri Filter element 25 µm HP1351A25AN
£49.59 excl.
£59.51 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000287730
MP Filtri Pump half GEP081
£4.46 excl.
£5.35 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000210474

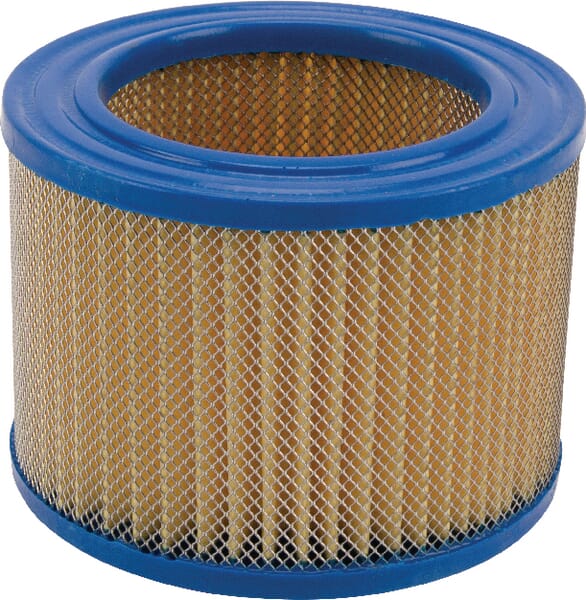

MP Filtri Air filter element A1151A03P01
£8.96 excl.
£10.75 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000364437

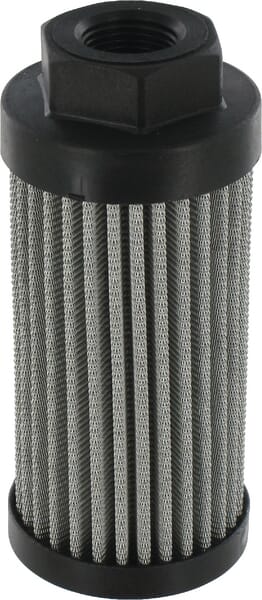

MP Filtri Suction flter 60-µm wout bypass STR451M60
