£279.64
excl. VAT
£335.57 incl. VAT
£335.57
incl. VAT
£279.64 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September

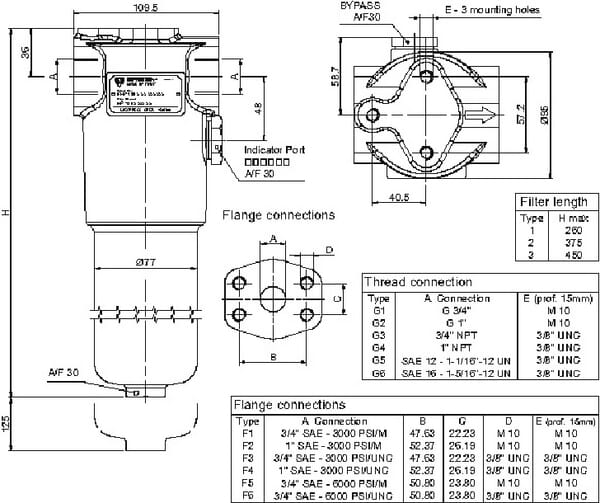

Product details

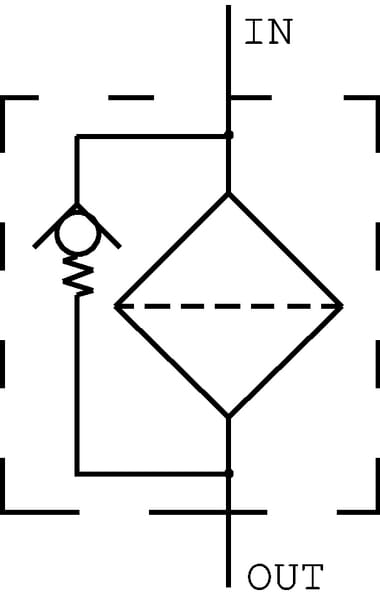

| Bypass | Yes |
|---|---|
| Filter finess | 10 µm |
| Filtration level | Absolute |
| Filtration material | Glass fibre |
| Height | 260 mm |
| Housing material | Steel |
| Includes | Filter comes standard without indicator plug |
| Inlet port flange diameter | 125 mm |
| Inlet port thread diameter | 3/4 Inch |
| Length | 254 mm |
| Long description | The FHP series consists of versatile high-pressure filters that protect sensitive components in hydraulic high-pressure systems up to 420 bar. |

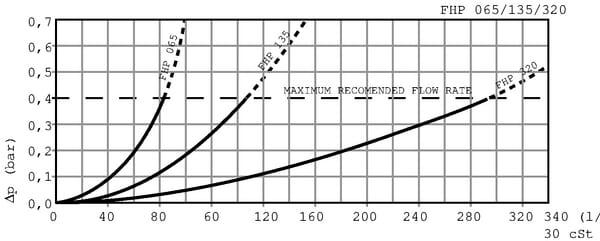

| Max flow rate | 95 l/min |
| Max working pressure | 420 BAR |
| Max working temperature | 110 °C |
| Medium | Hydraulic oil |
| Min flow rate | 120 l/min |
| Min working temperature | -25 °C |
| Original number equivalent | FHP135-1-B-A-G1-A10-N-P01 |
| Outlet port thread diameter | 3/4 Inch |
| Outside diameter | 110 mm |
| Pressure collapse | 20 BAR |
| Product details | Suitable for mineral oil, Maximum pressure difference across element 20 bar (N series) or 210 bar (S series), Filtering from the outside in, Maximum operating pressure 420 bar, Burst pressure 1260 bar, Temperature -25°C to +110°C, Working height is the free space needed under the filter for replacing the element, Bypass opening pressure: 6 bar +-10%, Flow rate depends on build size and filter choice, Filter elements available in Fibreglass (A) or Metal (M), Filter elements available as A03 / A06 / A10 / A16 /A25 / M25 (in µm) |
| Pros | Can be placed in any position through pipe installation. |
| Sensor port | Yes |
| Sensor port thread diameter | M10 |
| Sensor port thread type | G |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
MP9E6
MP Filtri Electr/visual differential indicator 2 bar FRI MP9E6
£155.36 excl.
£186.43 incl.
MP9E7
MP Filtri Electr/visual differential indicator 5 bar LMP/FMP/FHP/FMM MP9E7
£155.36 excl.
£186.43 incl.
MP9E8

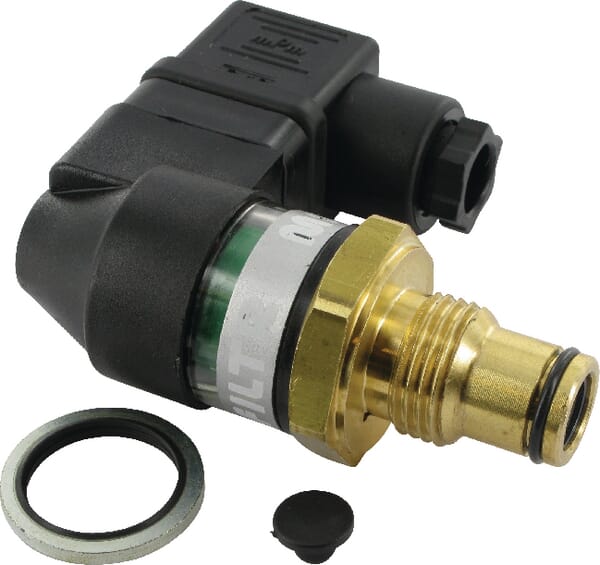

MP Filtri Electr/visual differential indicator 7 bar FHM/FHB/FMP/FMM MP9E8
£155.36 excl.
£186.43 incl.
MP9T2H
MP Filtri Indicator plug MP9T2H
£12.01 excl.
£14.41 incl.
MP9V0P01

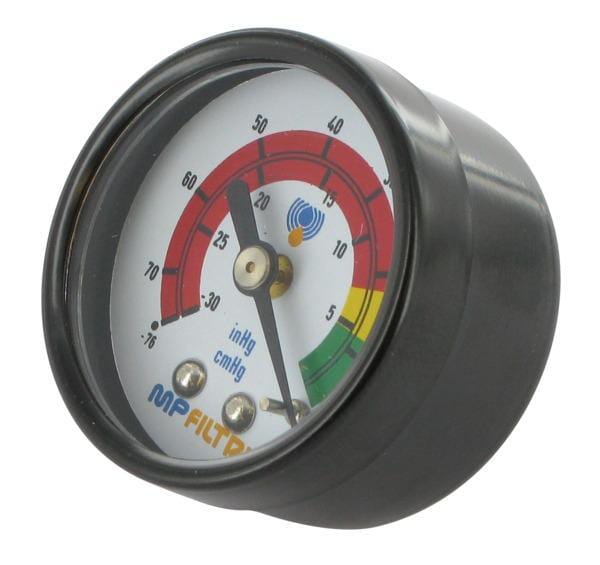

MP Filtri Visual vacuum gauge 1/4 BSP rear MPS/SF2 MP9V0P01
£27.92 excl.
£33.50 incl.
MP9V6
Visual differential indicator 2 bar FRI/LMP
Not currently stocked
MP9V7
MP Filtri Visual differential indicator 5 bar LMP /FMP/FHP/FMM MP9V7
£84.53 excl.
£101.44 incl.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 7724 g |
| Dimensions | 317 × 125 × 122 mm |
| Dangerous goods | No |
You might also like
BPA000319287

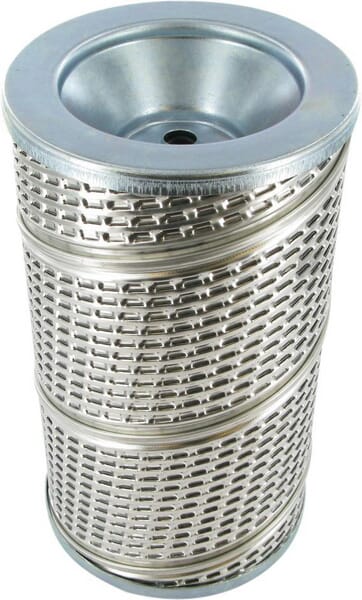

MP Filtri Filter element 10 µm MR2502A10A
£77.66 excl.
£93.19 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000321440

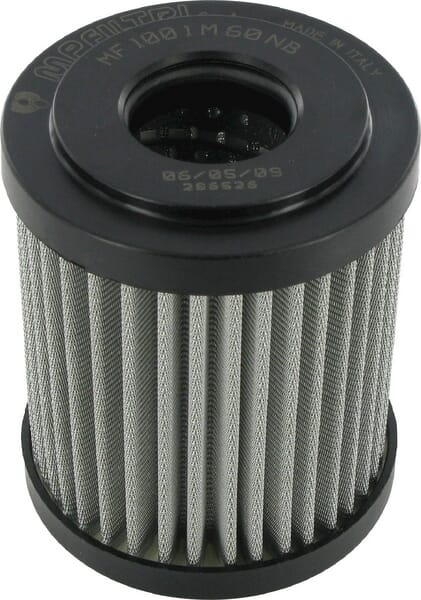

MP Filtri Filter element 60 µm MF1001M60NB
£25.80 excl.
£30.96 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000376260

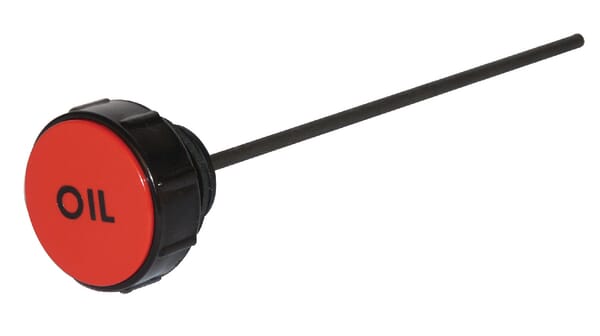

MP Filtri Dipstick/fillingcap 1.1/2" BSP TSD24
£14.88 excl.
£17.86 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000287737

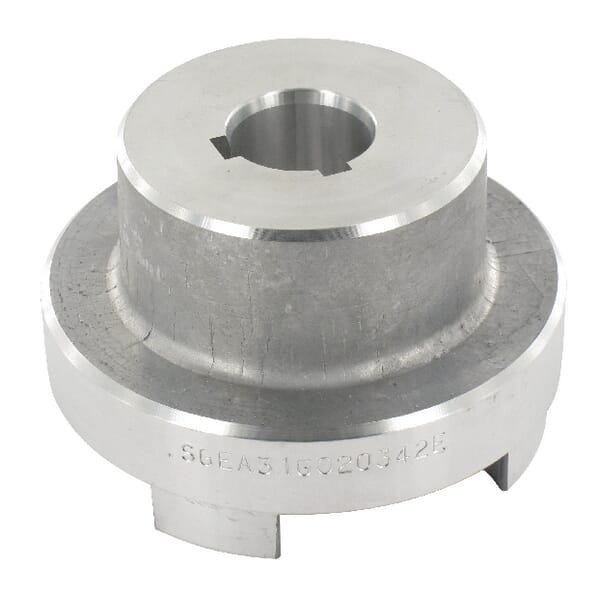

MP Filtri Pump half GEP331
