£501.14
excl. VAT
£601.37 incl. VAT
£601.37
incl. VAT
£501.14 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September
Product details
| Bypass | Yes |
|---|---|
| Filter finess | 10 µm |
| Filtration level | Absolute |
| Filtration material | Glass fibre |
| Height | 373 mm |
| Housing material | Steel |
| Includes | Filter comes standard without indicator plug |
| Inlet port flange diameter | 125 mm |
| Inlet port thread diameter | 1 Inch |
| Length | 367 mm |

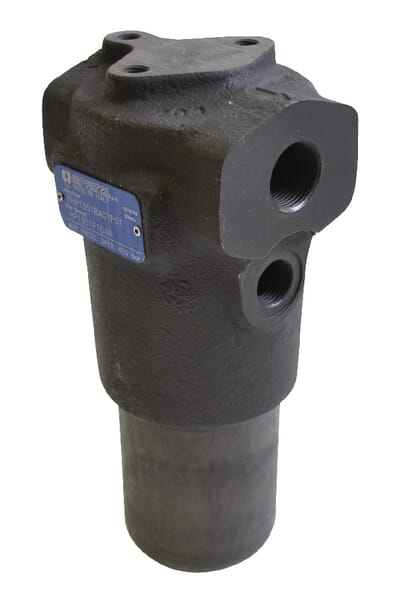

| Long description | The FHP series consists of versatile high-pressure filters that protect sensitive components in hydraulic high-pressure systems up to 420 bar. |
| Max flow rate | 129 l/min |
| Max working pressure | 420 BAR |
| Max working temperature | 110 °C |
| Medium | Hydraulic oil |
| Min flow rate | 148 l/min |
| Min working temperature | -25 °C |
| Original number equivalent | FHP135-2-B-A-G2-A10-N-P01 |
| Outlet port thread diameter | 1 Inch |
| Outside diameter | 110 mm |
| Pressure collapse | 20 BAR |
| Product details | Suitable for mineral oil, Maximum pressure difference across element 20 bar (N series) or 210 bar (S series), Filtering from the outside in, Maximum operating pressure 420 bar, Burst pressure 1260 bar, Temperature -25°C to +110°C, Working height is the free space needed under the filter for replacing the element, Bypass opening pressure: 6 bar +-10%, Flow rate depends on build size and filter choice, Filter elements available in Fibreglass (A) or Metal (M), Filter elements available as A03 / A06 / A10 / A16 /A25 / M25 (in µm) |
| Pros | Can be placed in any position through pipe installation. |
| Sensor port | Yes |
| Sensor port thread diameter | M10 |
| Sensor port thread type | G |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 9172 g |
| Dimensions | 425 × 167 × 165 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000318860
MP Filtri Electr/visual differential indicator 5 bar LMP/FMP/FHP/FMM MP9E7
£155.36 excl.
£186.43 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000192496

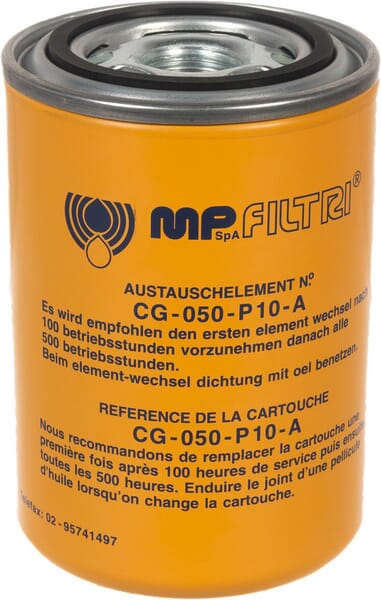

MP Filtri Filter cartridge 8CG050P10A
£57.01 excl.
£68.41 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000258145

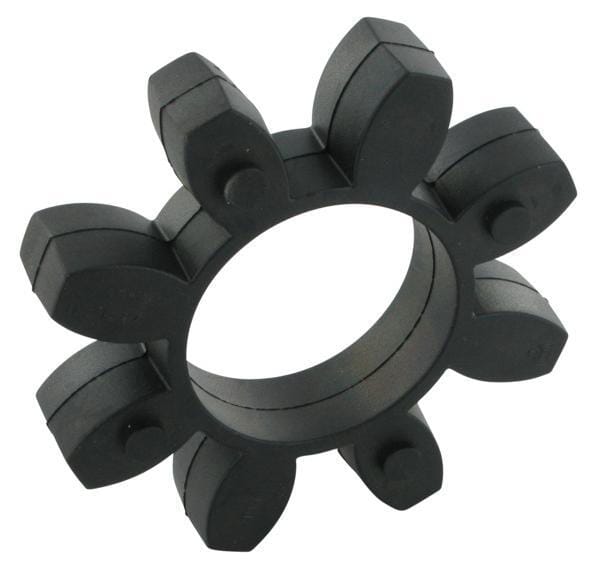

MP Filtri Coupling Rubber 4 - 87 Sh EGE4
£42.77 excl.
£51.32 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000258147
MP Filtri Coupling Rubber 6 - 87 Sh EGE6
£59.42 excl.
£71.30 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000287714

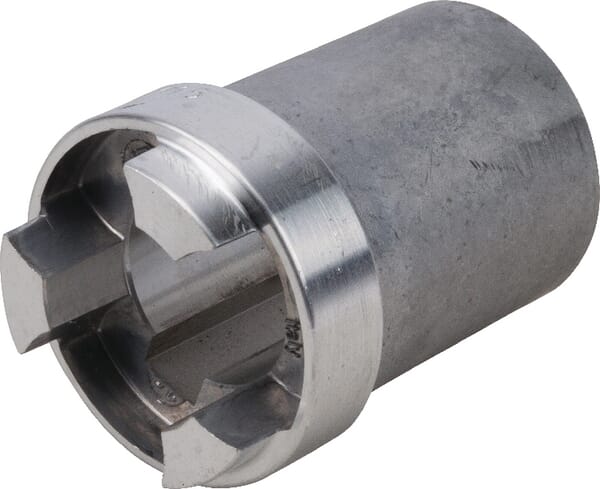

MP Filtri Engine half GEM224
£22.32 excl.
£26.78 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000288992

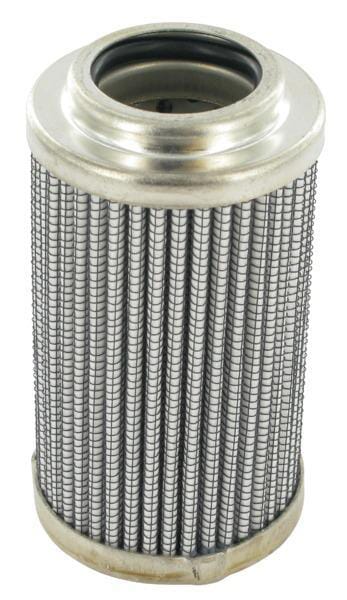

MP Filtri Filter element 3 µm HP0651A03AN
