£397.12
excl. VAT
£476.54 incl. VAT
£476.54
incl. VAT
£397.12 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September
Product details
| Bypass | Yes |
|---|---|
| Filter finess | 10 µm |
| Filtration level | Absolute |
| Filtration material | Glass fibre |

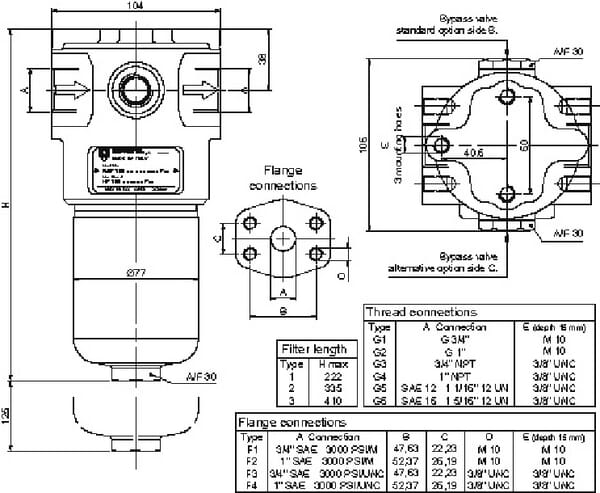

| Height | 334 mm |
| Housing material | Steel |
| Includes | Filter comes standard without indicator plug |
| Inlet port thread diameter | 1 Inch |
| Length | 334 mm |
| Long description | The FMP series consists of versatile high-pressure filters that protect sensitive components in hydraulic high-pressure systems up to 320 bar. |

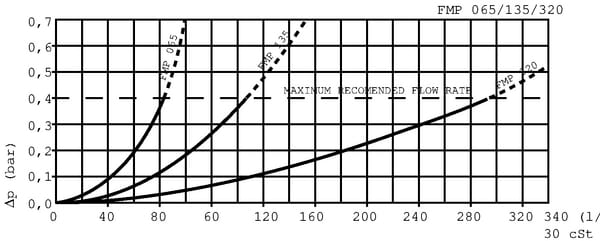

| Max flow rate | 149 l/min |
| Max working pressure | 320 BAR |
| Max working temperature | 110 °C |
| Medium | Hydraulic oil |
| Min working temperature | -25 °C |
| Original number equivalent | FMP135-2-B-A-G2-A10-N-P01 |
| Outlet port thread diameter | 1 Inch |
| Outside diameter | 104 mm |
| Pressure collapse | 20 BAR |
| Product details | Suitable for mineral oil, Maximum pressure difference across element 20 bar (N series) or 210 bar (S series), Filtering from the outside in, Maximum operating pressure 320 bar, Burst pressure 840 bar, Temperature -25°C to +110°C, Working height is the free space needed under the filter for replacing the element, Bypass opening pressure: 6 bar +-10%, Flow rate depends on build size and filter choice., Filter elements available in Fibreglass (A) or Metal (M), Filter elements available as A03 / A06 / A10 / A25 / M60 (in µm) |
| Pros | Can be placed in any position through pipe installation |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 7532 g |
| Dimensions | 428 × 128 × 120 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000289014

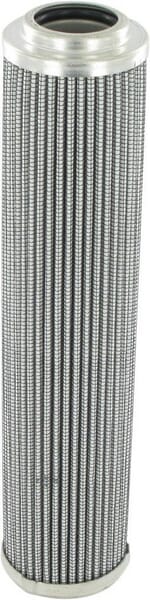

MP Filtri Filter element 25 µm HP0653A25AH
£148.87 excl.
£178.64 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000248031

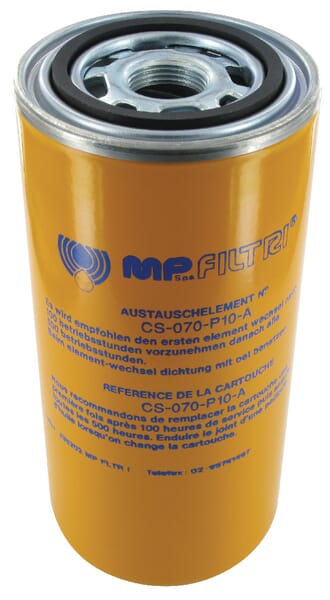

MP Filtri Filter element 10 µm CS070P10
£33.22 excl.
£39.86 incl.
In stock
Expected to ship on Friday 18 September
BPA000288953

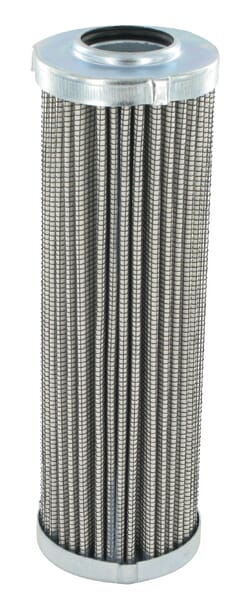

MP Filtri Filter element 25 µm HP0501A25AN
£41.16 excl.
£49.39 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000288984
MP Filtri Filter element 10 µm HP0504M10AN
£124.14 excl.
£148.97 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000248040

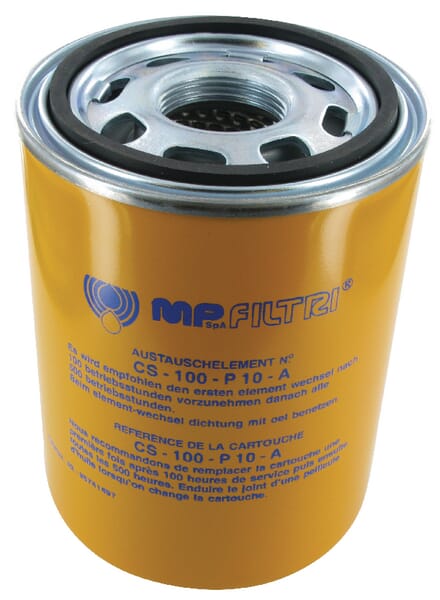

MP Filtri Filter element 10 µm CS100P10
£34.98 excl.
£41.98 incl.
In stock
Expected to ship on Friday 18 September
BPA000253795

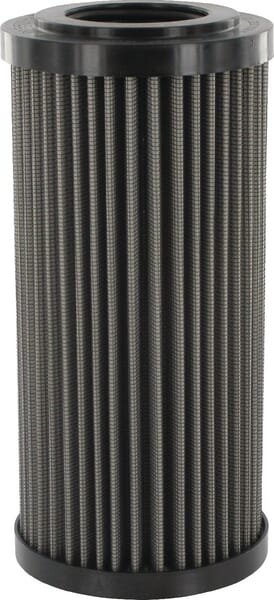

MP Filtri Filter element 60 µm CU250M60N
