£384.96
excl. VAT
£461.95 incl. VAT
£461.95
incl. VAT
£384.96 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details

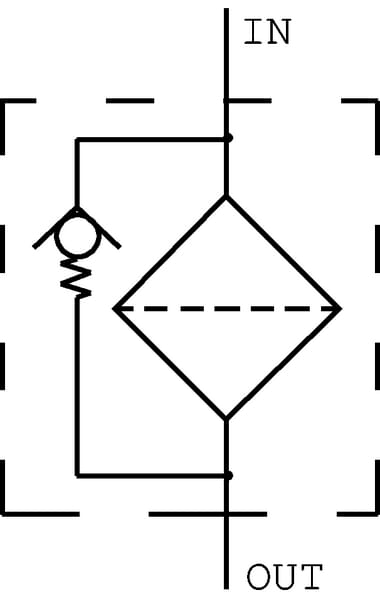

| Bypass | Yes |
|---|---|
| Filter finess | 10 µm |
| Filtration level | Nominal |
| Filtration material | Paper |

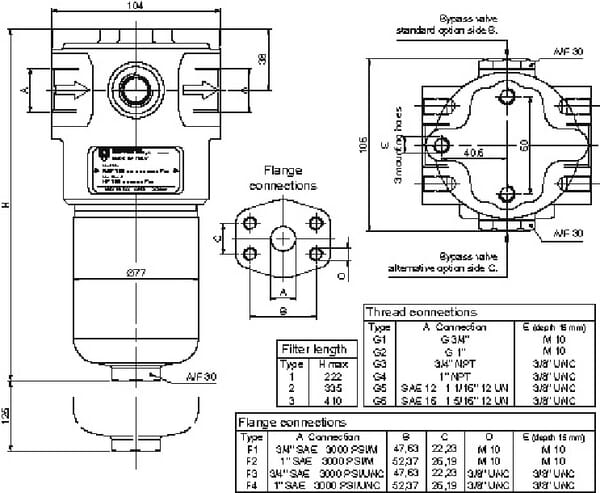

| Height | 334 mm |
| Housing material | Steel |
| Includes | Filter comes standard without indicator plug |
| Inlet port thread diameter | 1 Inch |
| Length | 335 mm |

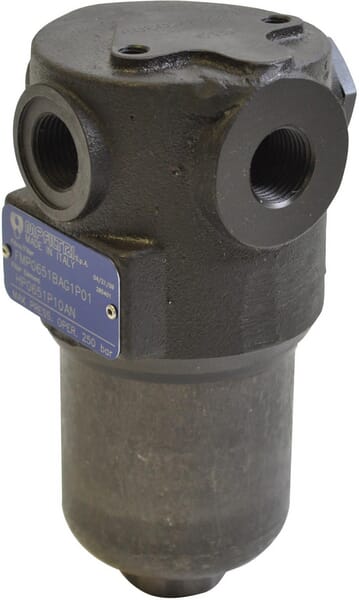

| Long description | The FMP series consists of versatile high-pressure filters that protect sensitive components in hydraulic high-pressure systems up to 320 bar. |

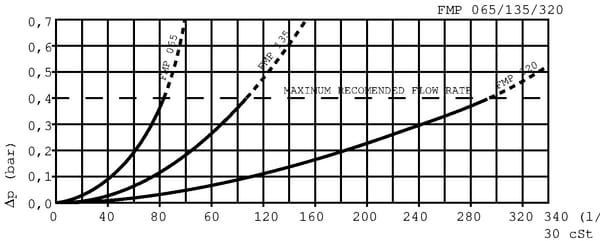

| Max flow rate | 211 l/min |
| Max working pressure | 320 BAR |
| Max working temperature | 110 °C |
| Medium | Hydraulic oil |
| Min flow rate | 115 l/min |
| Min working temperature | -25 °C |
| Original number equivalent | FMP135-2-B-A-G2-P10-N-P01 |
| Outlet port thread diameter | 1 Inch |
| Outside diameter | 104 mm |
| Pressure collapse | 20 BAR |
| Product details | Suitable for mineral oil, Maximum pressure difference across element 20 bar (N series) or 210 bar (S series), Filtering from the outside in, Maximum operating pressure 320 bar, Burst pressure 840 bar, Temperature -25°C to +110°C, Working height is the free space needed under the filter for replacing the element, Bypass opening pressure: 6 bar +-10%, Flow rate depends on build size and filter choice., Filter elements available in Fibreglass (A) or Metal (M), Filter elements available as A03 / A06 / A10 / A25 / M60 (in µm) |
| Pros | Can be placed in any position through pipe installation |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
MP9E6

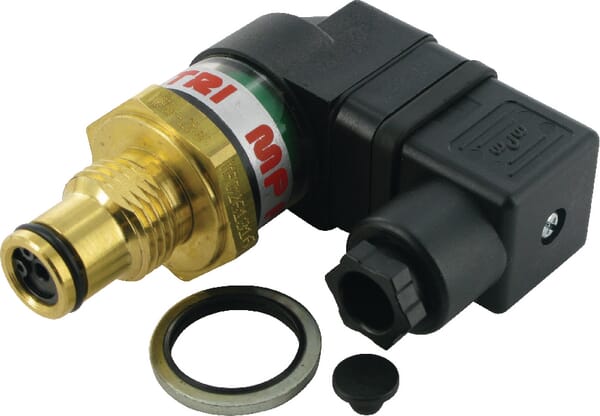

MP Filtri Electr/visual differential indicator 2 bar FRI MP9E6
£155.36 excl.
£186.43 incl.
MP9E7
MP Filtri Electr/visual differential indicator 5 bar LMP/FMP/FHP/FMM MP9E7
£155.36 excl.
£186.43 incl.
MP9E8
MP Filtri Electr/visual differential indicator 7 bar FHM/FHB/FMP/FMM MP9E8
£155.36 excl.
£186.43 incl.
MP9T2H
MP Filtri Indicator plug MP9T2H
£12.01 excl.
£14.41 incl.
MP9V0P01

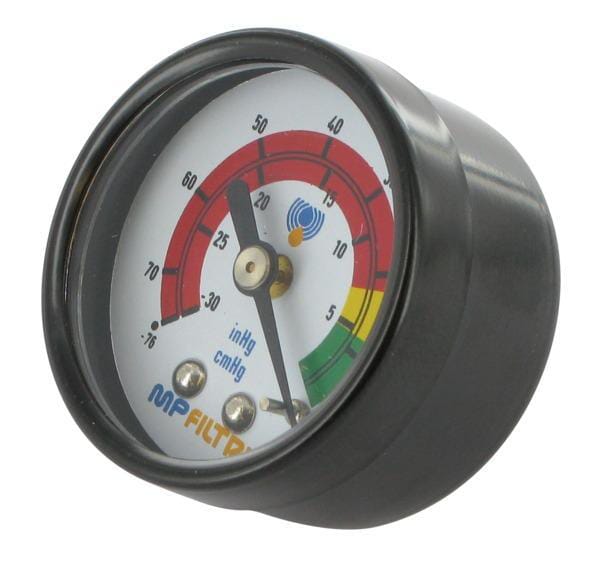

MP Filtri Visual vacuum gauge 1/4 BSP rear MPS/SF2 MP9V0P01
£27.92 excl.
£33.50 incl.
MP9V6
Visual differential indicator 2 bar FRI/LMP
Not currently stocked
MP9V7
MP Filtri Visual differential indicator 5 bar LMP /FMP/FHP/FMM MP9V7
£84.53 excl.
£101.44 incl.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 7500 g |
| Dimensions | 428 × 125 × 125 mm |
| Dangerous goods | No |
You might also like
BPA000288945

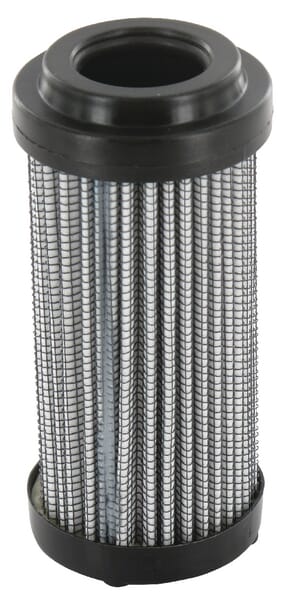

MP Filtri Filter element 60 µm HP0394M60AN
£67.03 excl.
£80.44 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000287728

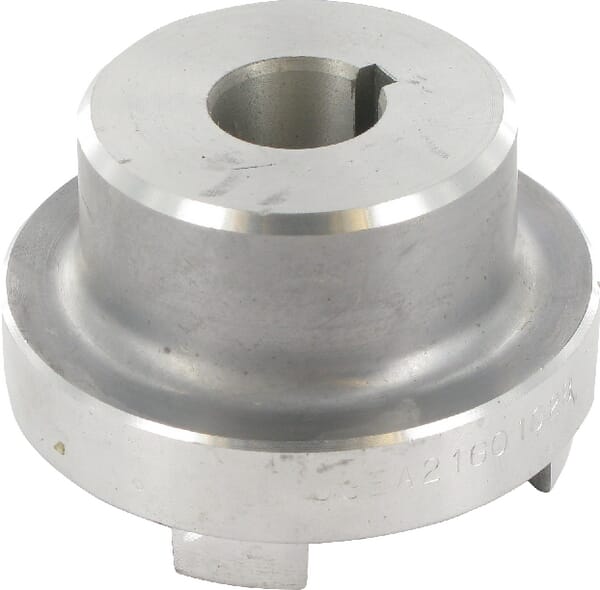

MP Filtri Pump half GEP005C
£4.71 excl.
£5.65 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000310987
MP Filtri Sight glass LVA2SAM10
£23.18 excl.
£27.82 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000248037

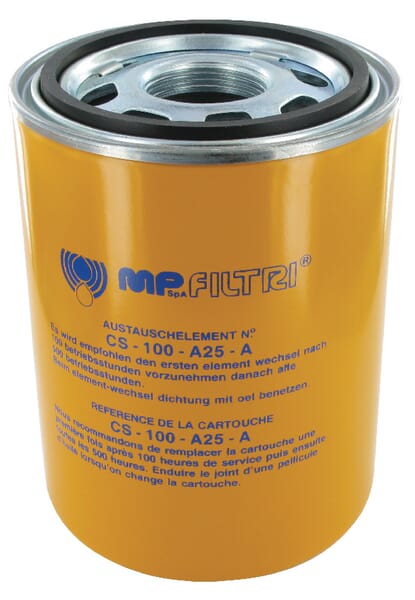

MP Filtri Filter element 25 µm CS100A25
